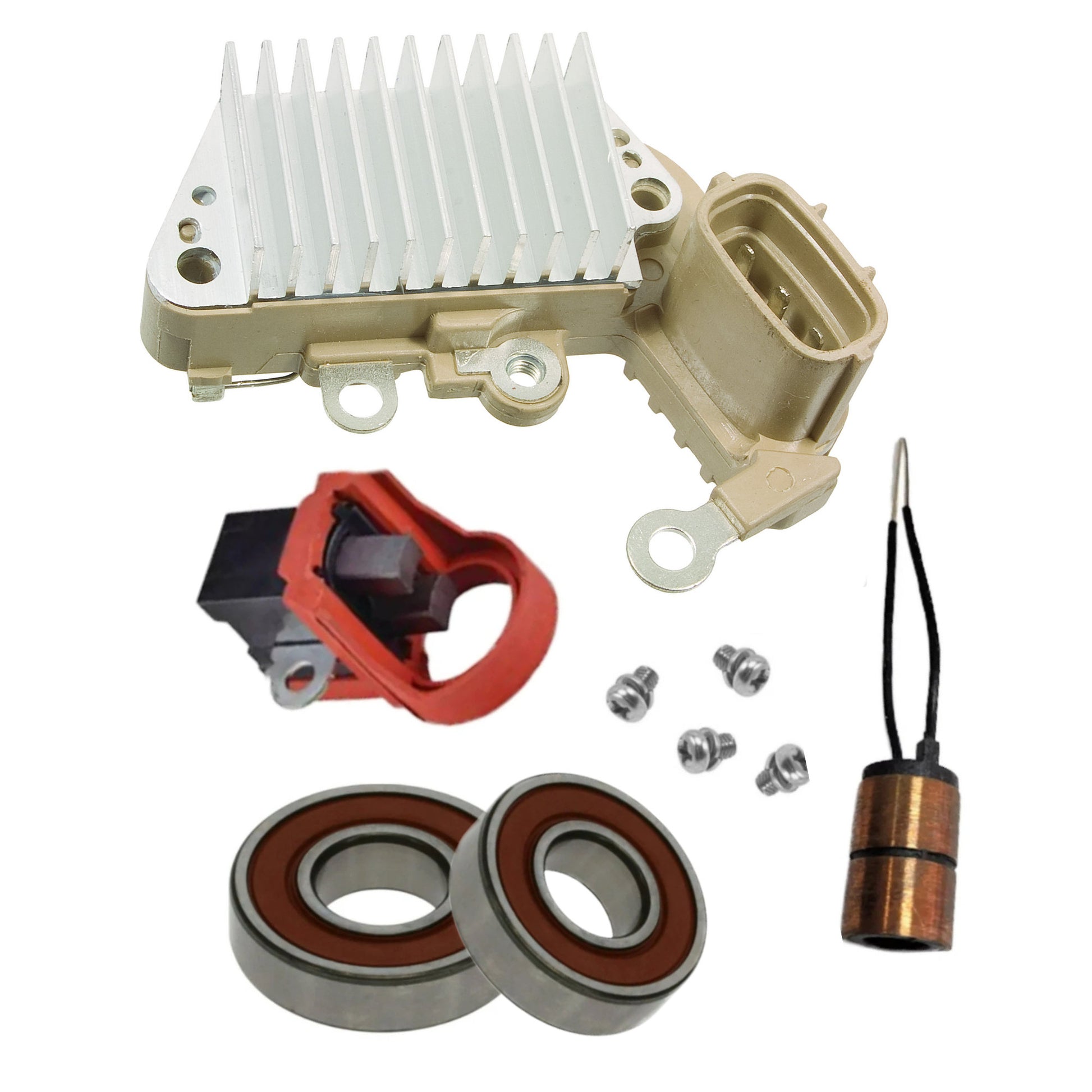

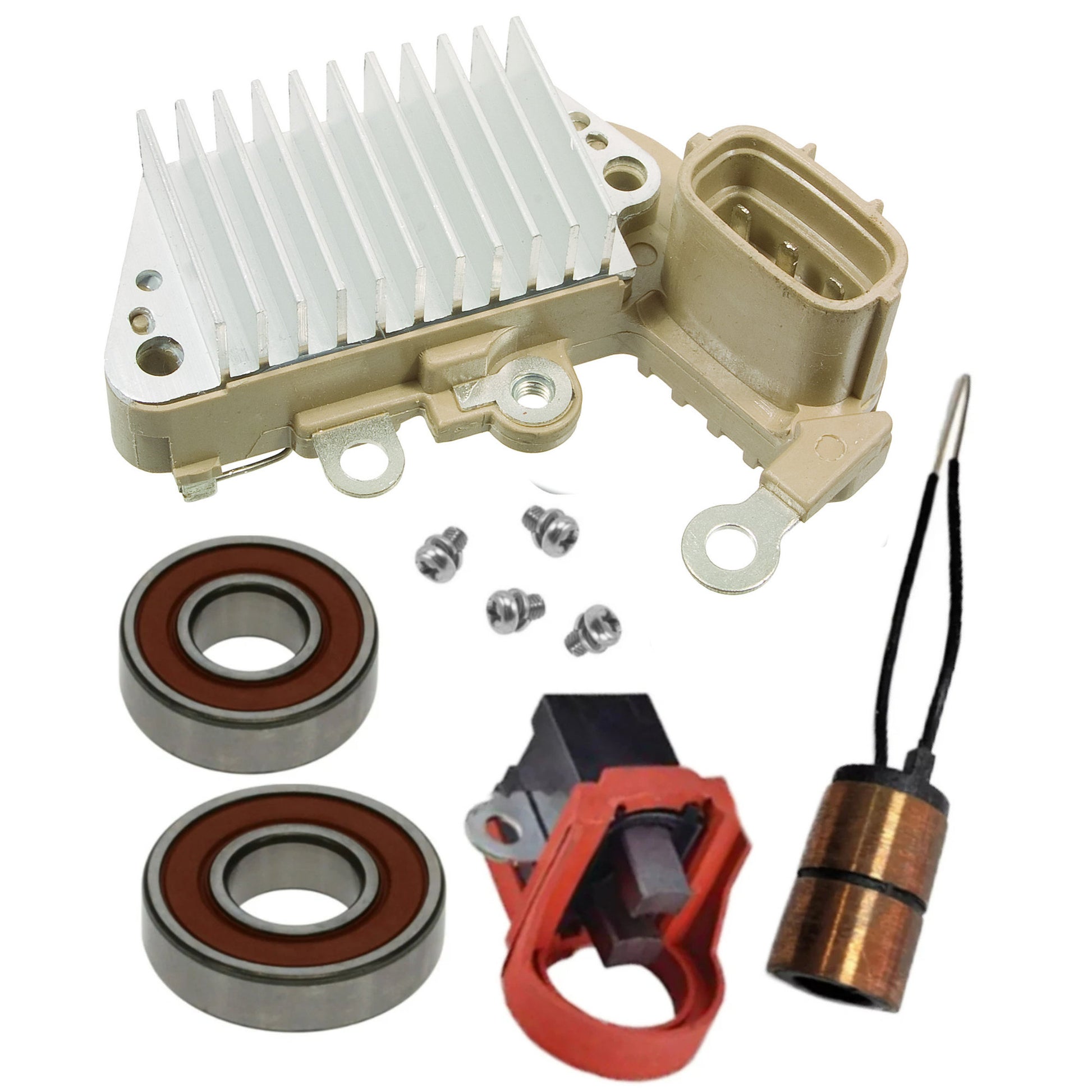

Alternator Rebuild Kit Toyota Forklift 7FG10-7FG30, 7FGCU15,, w/Denso 101211-3580, -3680 - 12476RK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Toyota Forklift: 7FG10 (5K Engine 1998-2001), 7FG14 (5K Engine 1998-2001), 7FG15 (4Y/5K Engines 1998-2001), 7FG18 (4Y/5K Engines 1998-2001), 7FG20 (4Y/5K Engines 1998-2001), 7FG23 (4Y/5K Engines 1998-2001), 7FG25 (4Y/5K Engines 1998-2001), 7FG28 (4Y Engine 1998-2001), 7FG30 (4Y Engine 1998-2001), 7FGCSU20 (4Y Engine 1993-2001), 7FGCU15 (4Y/5K Engines 1993-2001), 7FGCU18 (4Y/5K Engines 1993-2001), 7FGCU20 (4Y/5K Engines 1993-2001), 7FGCU25 (4Y/5K Engines 1993-2001), 7FGCU30 (4Y/5K Engines 1993-2001), 7FGCU32 (4Y/5K Engines 1993-2001), 7FGJ35 (4Y Engine 1998-2001), 7FGK20 (4Y/5K Engines 1993-2001), 7FGK23 (5K Engine 1998-2001), 7FGK25 (4Y/5K Engines 1993-2001), 7FGK30 (4Y Engine 1993-2001, 5K Engine 1993-1997)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Toyota OE: 27060-78201-71, 27060-78153-71
• Denso OE: 101211-3680, 101211-3580 (12 Volt, 50 Amp, Denso, V1 Pulley)
• Lester / PIC References: Lester 12476 | PIC 290-5191A

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: 12 Volt, A-Circuit, S-IG-L Terminals (L Terminal DOES NOT Drive Choke), 14.6 Voltage Set Point
• Design: For Denso Alternators on Toyota 1DZ Engine
• Replaces OEM: Denso 126000-2400, 126000-2800 | Toyota 27700-78153-71, 27700-78154-71
• Aftermarket Crossovers: IN240, 80904602, 80904436, W085-247, 230-52100, 216-060, GNR-N024, VRH2005-52, VRH2005-52A

⚡ Brush Holder Assembly Specs

• Features: Includes Brushes and Seal
• Replaces OEM: Denso 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750 | Honda 31105-PT0-B91
• Interchange Numbers: 39-8200

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm L
• Interchange Numbers: 7190904A, 313-52001, 14520W, 213-500, ND-492, 28-82853

⚡ Drive End Bearing (Front) Specs

• Industry Number: 53500 / 6202-2RS (EMQ Bearing)
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Interchange Numbers: Denso 949100-0070, 949100-0160, 949100-0330, 949100-0340, 949100-2950, 949100-2951, 949100-3160, 949100-3161, 949100-3630, 949100-3730, 949100-3731 | 6-202-4W

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53207 / W6002-2RS (EMQ Bearing)
• Dimensions: 15mm ID x 32mm OD x 11mm W
• Interchange Numbers: Denso 949100-2940, 949100-3170, 949100-3660, 949100-3670 | 6-3102-4W
