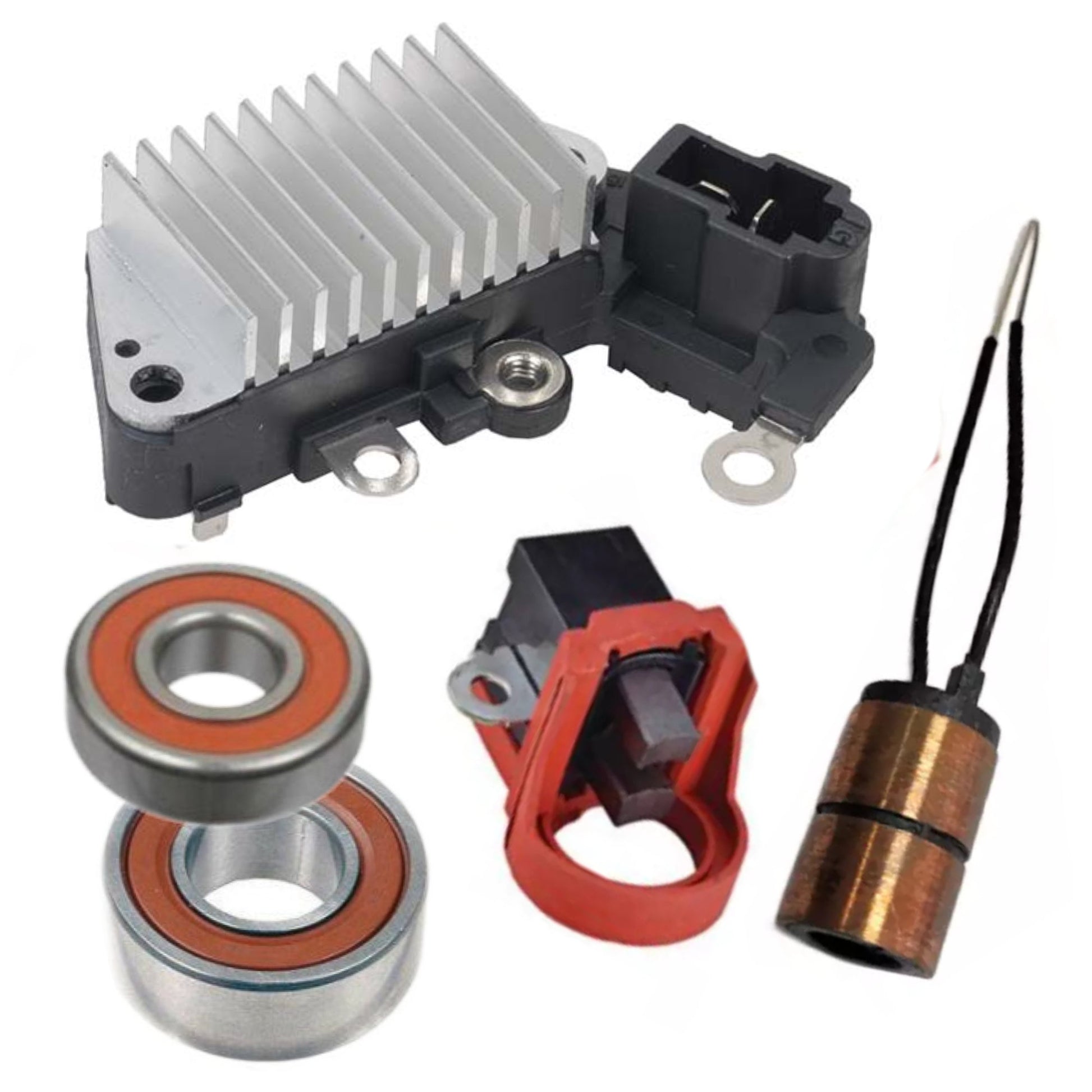

Alternator Rebuild Kit Toyota Lift Truck Forklift, Kubota Equip V1502 Denso Ref# 100211-1660, -1661, -1662 - 12180RK-A

Need to rebuild your Toyota Lift Truck / Kubota V1502 alternator? This premium replacement kit or component is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Kubota Misc. Equipment: Various V1502 Engine (1986-1996)
• Toyota Lift Truck 3FGC-30: 4Y Toyota Gas Engine (1981-1999)
• Toyota Lift Truck 5FD Series (5FD-10 to 5FD-25): V1502 Engine / VT1502 Kubota Diesel (1986-2007)
• Toyota Lift Truck 5FDL Series (5FDL-10 to 5FDL-25): V1502 Engine (1986-1989)
• Toyota Lift Truck 5FG Series (5FG-10 to 5FG-30): 4P / 4Y Engine (1986-1888)
• Toyota Lift Truck 5FGL Series (5FGL-10 to 5FGL-25): 4P / 4Y Engine (1986-2003)
• Toyota Lift Truck FG Series (FG-10 to FG-30): 4P / 4Y Engines (1986-2002)

🔍 Cross-Reference Alternator Assemblies

• OEM Denso / Toyota: 100211-1660, 100211-1661, 100211-1662, 9760218-166, 27060-78001, 27060-78001-71
• Other OE Manufacturers: Hyster 3049491, KHD 0441-2972, Towmotor 213534, Komatsu 600-821-2350, 600-821-4490
• Aftermarket Crosses: Lester 12180, PIC 290-209, Arrowhead AND0169, Bosch Europe 0-986-036-641, HC Cargo 110620, Wilson 90-29-5171, Jannco 400-52001R, Real 20132037

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: A-Circuit, IG-L Layout, L Terminal Drives Choke, 14.6V Voltage Set Point, 57.5mm Center-to-Center Mounting Holes
• Interchange Numbers: IN255

⚡ Slip Ring Specs

• Dimensions: 8.9mm Inner Diameter (ID) x 14.6mm Outer Diameter (OD) x 23.9mm Total Length
• Interchange Numbers: 28-82853

⚡ Drive End Bearing Specs

• Technical Specifications: EMQ Quality Rating, Premium Design
• Dimensions: 15mm x 35mm x 11mm
• Interchange Numbers: 6-202-4N, 6202-2RS

⚡ SRE Bearing Specs

• Technical Specifications: EMQ Quality Rating, Premium Design
• Dimensions: 15mm x 32mm x 11mm
• Interchange Numbers: 6-3102-4W, W6002-2RS

⚡ Brush Holder Assembly Specs

• Replaces OEM: Denso 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750
• Interchange Numbers: 39-8200

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, or you do not want to tackle the project after all, don't sweat it. We offer easy 30 Day, no-hassle exchanges, returns and fast refunds. We are here to help your DIY build succeed!
