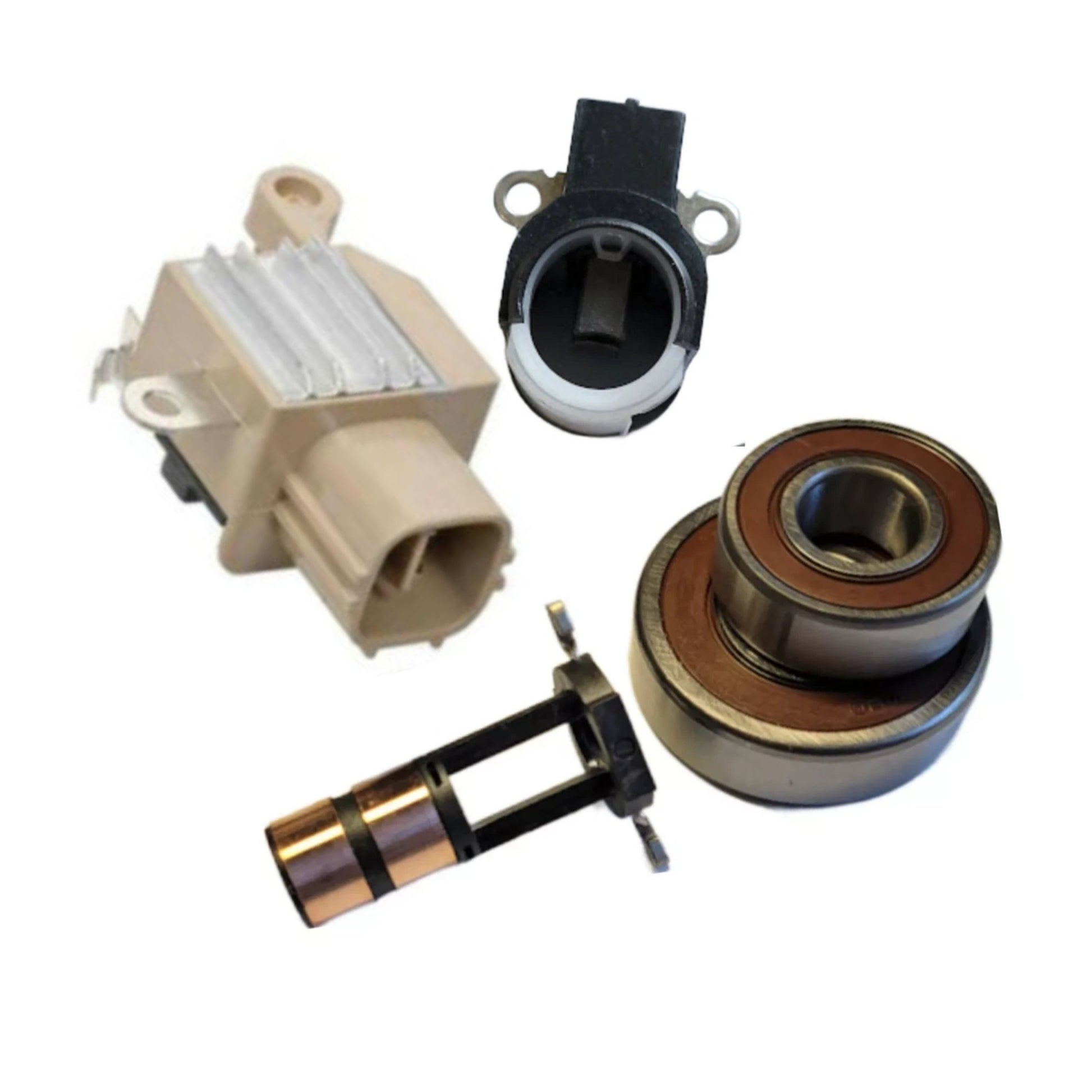

Alternator Rebuild Kit Pontiac Vibe, Toyota Corolla 1.8L Matrix, Scion xD - 11385RK-A

Pontiac Vibe L4 1.8L 2009-2010
Scion xD L4 1.8L 2008-2014
Toyota Corolla L4 1.8L 2009-2013
Toyota Matrix L4 1.8L 2009-2010

• Voltage Regulator B-Circuit, IG-S-L-M(FR) Terminals, 14.1 Voltage set point, Replacing Denso 126600-3010, 126600-3040, 126600-3360, 126600-3361, 126600-3390, 126600-3391, 126600-4340, 3040, GS2M3361, Original Reference Number GS2M3010, GS2M3040, GS3M3390, Toyota 27700-20090, 27700-20100 Other: 80904446, 80904476, 80904452, 80904593, 230-52164, 230-52113, T7301 - 216-065, 26511, IN6301

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854

• Drive End Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4W

• SRE Rotor Bearing 53514 15x35x13mm Ref# 279, 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-3020, 021620-3030, 021620-3040 - 39-8206

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3376X, AL3373X, AL3363X
Denso 104210-5490, 104210-5491, 104210-2800, 104210-2801, 104210-2802, 104210-5480, 104210-5481
Excel 11000
GM 88975507
Toyota 27060-0T040, 27060-0T041, 27060-0T041-84, 27060-37081, 27060-37040, 27060-37041
Lester 11385, 11386
Excel 11000
