Alternator Rebuild Kit Volvo 850, C70, S70, V70 with Bosch 0123505014 - 13800RK-A

Volvo Car
850 L5 2.3L 2319cc 1996-1997
850 L5 2.4L 2435cc 1997
C70 L5 2.3L 2319cc 1998-1999
C70 L5 2.4L 2435cc 1998-1999
S70 L5 2.3L 2319cc 1998
S70 L5 2.4L 2435cc 1998
V70 L5 2.3L 2319cc 1998
V70 L5 2.4L 2435cc 1998

Alternator Manufacturer and Factory #s
Bosch 0 123 505 014, 0123505014
Bosch Remanufactured AL0752X
Bosch Remanufactured Old AL0754X
Hollander 58524
Lester 13800
Volvo 5003996, 5003996-0, 5003996-5, 9162683, 9162683-0, 9162683-8, 9442827, 9442827-0, 9442827-3
Denso (Bosch Rebuilt by Denso) 210-6101
Remy Light Duty 12002
Wilson 90-15-6314

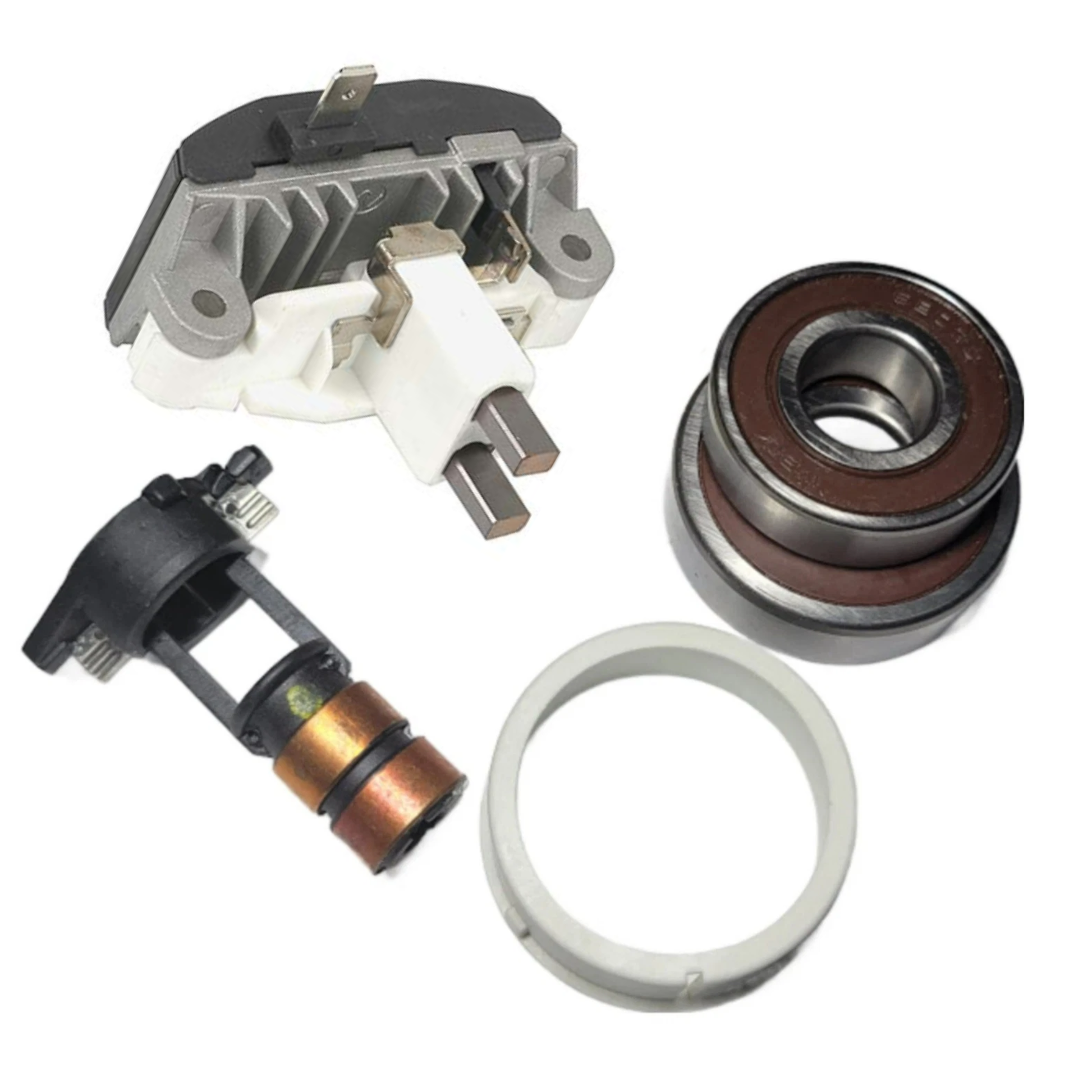

• Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, L Terminal, 14.1 Voltage Set Point, 10 second LRC, for Bosch on 1996-1999 Volvo, 14mm Diameter Slip Ring, Active lamp function - with output., TempCo -6.5mV/C, Shorted field, lamp & choke protection / Replaces: Bosch 1 197 311 518, 1 197 311 520, Volvo 9128982-7, 9168496-9 / Other: 230-24080, VRB229, BO-271, 176-029, 09117, W080-26, 80201055 - IB520

• Drive End Bearing 54700 17x47x14mm 6303-2RS ref# 1120905533 - 6-303-4W

• Rotor SRE Bearing 54000 17x40x12mm 6203-2RS ref# 1120905525 - 6-203-4W

• Slip Ring 52mm L, 7.1mm ID, 16.1mm OD Replacing Bosch 1124303007, F00M143019 Other 7120202, 313-24002 - 28-91852

• Bearing Tolerance Ring 40mm ID x 43mm OD x 16.5mm OAL Bosch Ref# 1120591076, 1120591103, W110-39 - 46-91552
