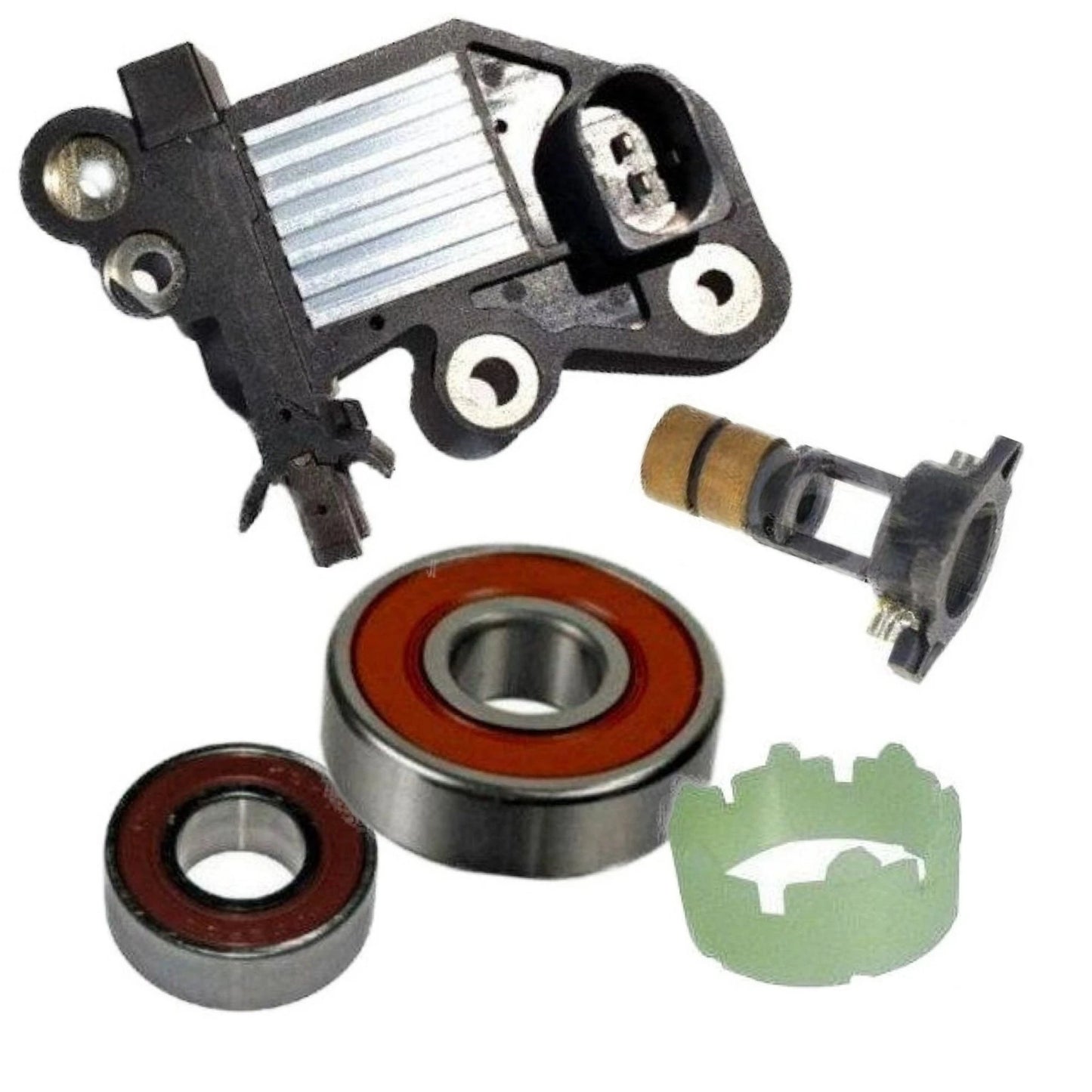

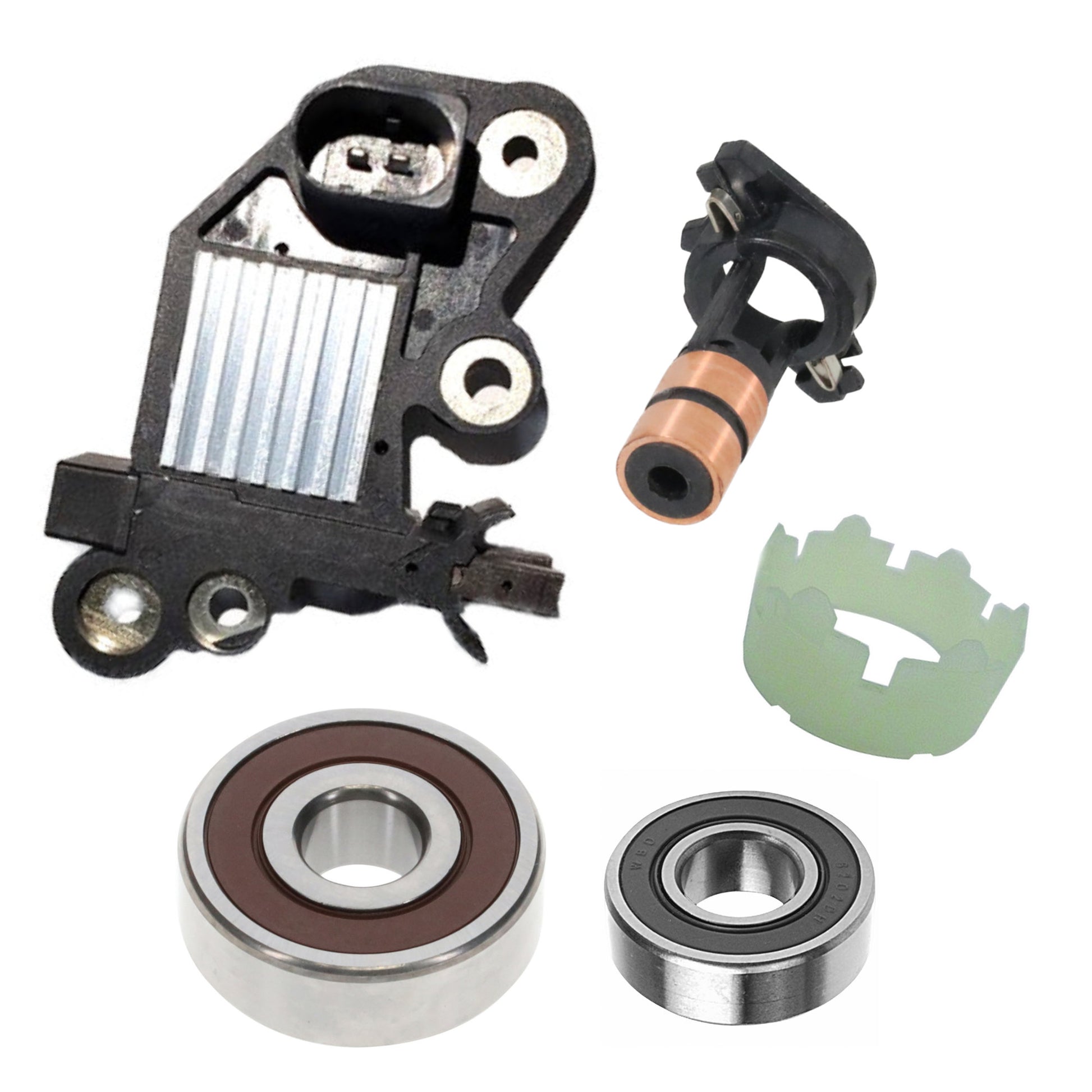

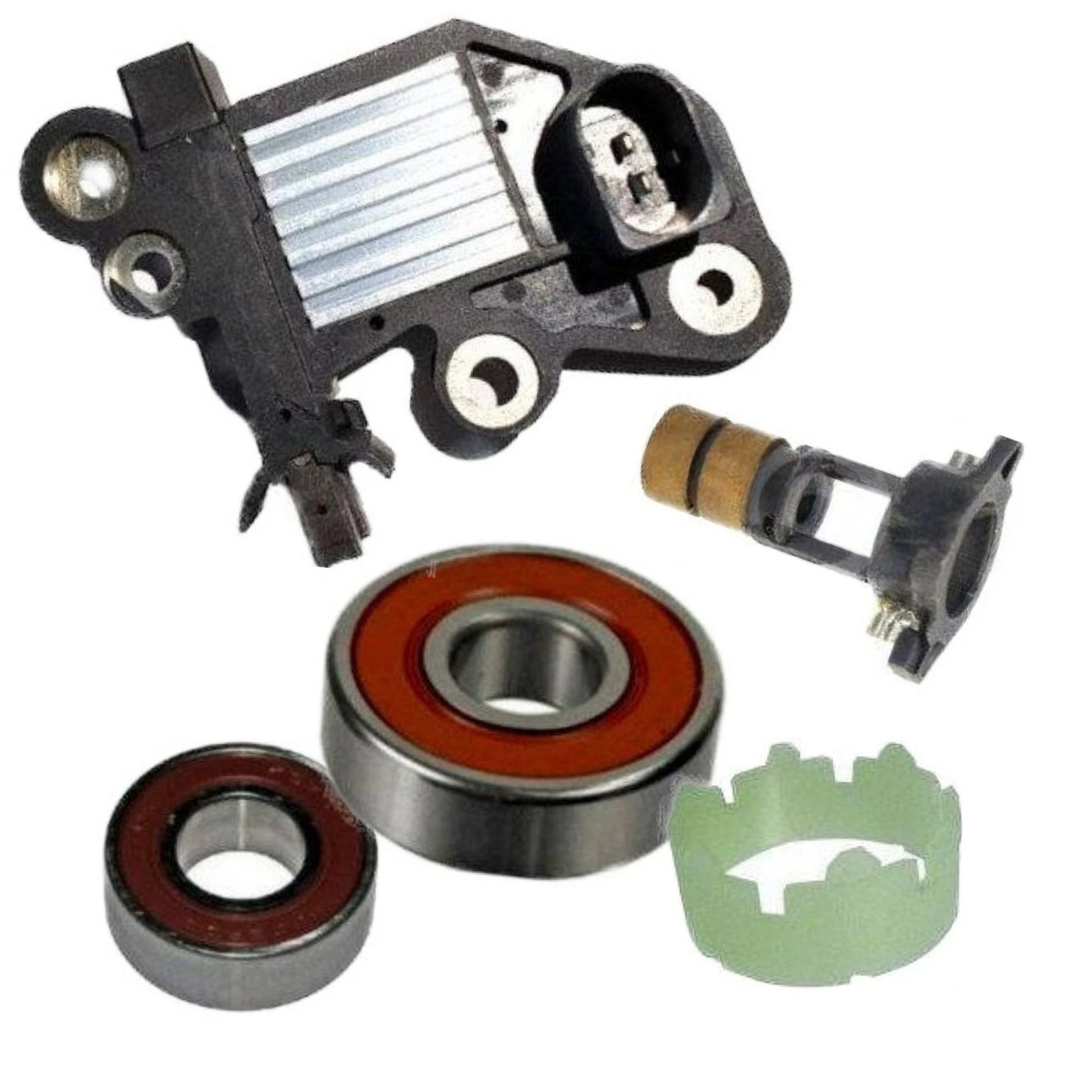

Alternator Rebuild Kit VW Passat 2.0L 2012-15 w/180A Bosch 0125811009 0125811036 - 11563RK-A

Need to rebuild your vehicle's alternator? This premium regulator component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Volkswagen:
  • Passat L4 2.0L 1968cc (2012-2015) w/ 180 Amp Bosch 0125811009, 0125811036

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Audi / Volkswagen OE: 03L-903-023R, 03L-903-023RX, 03L903023R, 03L903023RX
• Bosch OE: 0 125 811 009, 0 125 811 036, 0125811009, 0125811036
• Bosch Reman: AL0892X, F00E100567
• Lester References: Lester 11563

📐 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: Terminals L-DFM, Soft Start, LRC, 12 Volt, B-Circuit, 14.4 Voltage Set Point, for Bosch Alternators
• Replaces OEM: Audi / Volkswagen 03L903803A | Bosch 0272220701, 0272220714, 0272220720, 0272220731, 0272220744, 1121-163RS, QC000239
• Aftermarket Crossovers: 230-24157, W08094, 176-052, GNR-B033, IB731

⚡ Brush Set Specs

• Technical Specifications: Insulated, brass needle for easy installation (Includes 2 Brushes, 2 Springs, 2 Inserts)
• Interchange Numbers: 38-91800

⚡ Drive End Bearing (Front) Specs

• Industry Number: 55224 / B1799
• Dimensions: 17mm ID x 52mm OD x 17mm W
• Replaces OEM: Bosch F00M990425, F00M990426
• Interchange Numbers: 10-3043-4

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53500 / 6202-2RS
• Dimensions: 15mm ID x 35mm OD x 11mm W
• Replaces OEM: Bosch F00M590400, F000BL1488
• Interchange Numbers: 6-202-4

⚡ Bearing Tolerance Ring Specs

• Replaces OEM: Bosch F00M345000, F00M345001
• Interchange Numbers: W110-80, 177-109, 46-91557

⚡ Slip Ring Specs

• Technical Specifications: 5mm ID, for Bosch 711 811 Series Alternators
• Replaces OEM: Bosch F00M502700, F00M502710
• Interchange Numbers: 7120206, 173-506, W160-04, 28-91856

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
