Alternator Rebuild Parts for 1993-1995 Toyota Pickup 4Runner 2.4L M/T - 13492RK-A

Alternator Rebuild Parts for 1993-1995 Toyota Pickup 4Runner 2.4L M/T - 13492RK-A

13492RK-A

$42.98 USD
$42.98 USD
$42.98 each
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • 30 Day Money Back Guarantee
  • 1 Year Warranty
View full details
Need to rebuild your alternator? This premium replacement kit's components are engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.


🚘 Vehicle Application Details
Please note - If the original alternator has been replaced with the 70 amp or later version then the drive end bearing and brush holder may be different. This kit is for the original 60 amp alternator for these applications
• Toyota 4Runner (1993-1995) L4 2.4L 2366cc (60 Amp, Manual Transmission)
• Toyota Pickup (1993-1995) L4 2.4L 2366cc (60 Amp, Manual Transmission)

🔍 Cross-Reference Alternator Assemblies
•  Beck Arnley Remanufactured 186-0632; Bosch Remanufactured AL3244X; Denso 101211-0190; Excel 10291; Lester 13492; Toyota 27060-35150, 27060-35150-84

📐 Component-Specific Technical Data

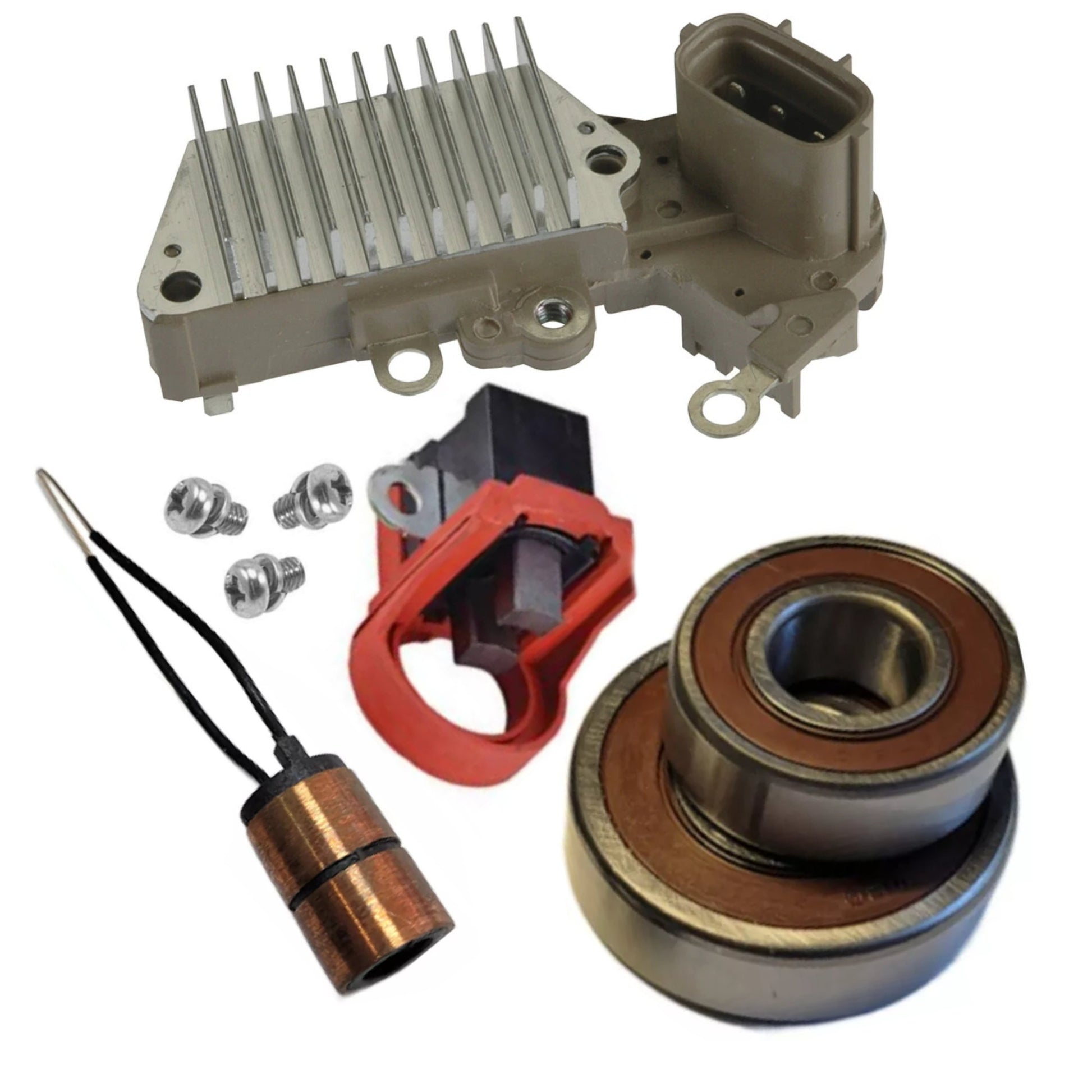

⚡ Alternator Rebuild Kit:
• Voltage Regulator: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage Set Point, w/ LRC, 63.5mm Mounting Length // Replaces Denso 126000-1580, 126000-1640, 126000-1660, 126000-1670, 126000-2820, 126000-7110, GM 94854171, 94857219, Toyota 27700-35040, 27700-46050, 27700-74030, 27700-74040, 27700-78700-71 (IN439)
• Brush Holder Assembly: Includes Brushes // Ref# 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750 (39-8200)
• Drive End Bearing: EMQ Premium, 15mm ID x 46mm OD x 14mm Width // Ref# 949100-3360, 949100-3361, 949100-4620 (10-3022-4W / 54600)
• Rotor Bearing: EMQ Premium, 15mm ID x 35mm OD x 13mm Width // Ref# 949100-2790, 949100-3980, 949100-4440 (10-2021-4W / 53514)
• Slip Ring Commutator: 8.9mm ID x 14.6mm OD x 23.9mm Length // Ref# 7190904A, 313-52001 (28-82853)

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, or you do not want to tackle the project after all, don't sweat it. We offer easy 30 Day, no-hassle exchanges, returns and fast refunds. We are here to help your DIY build succeed!
