Need to rebuild or repair your vehicle's alternator? This premium replacement component is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.
📐 Component-Specific Technical Data
-

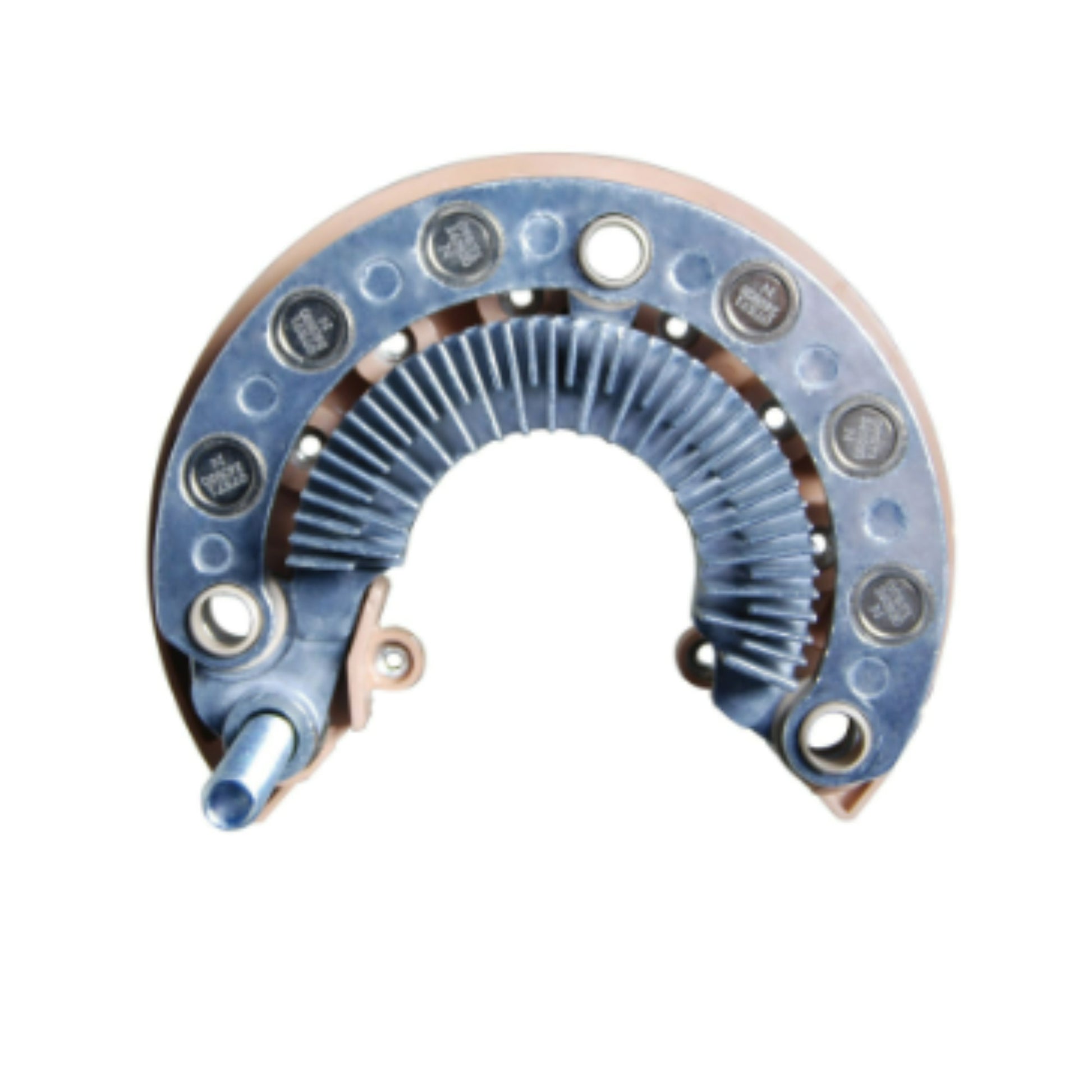

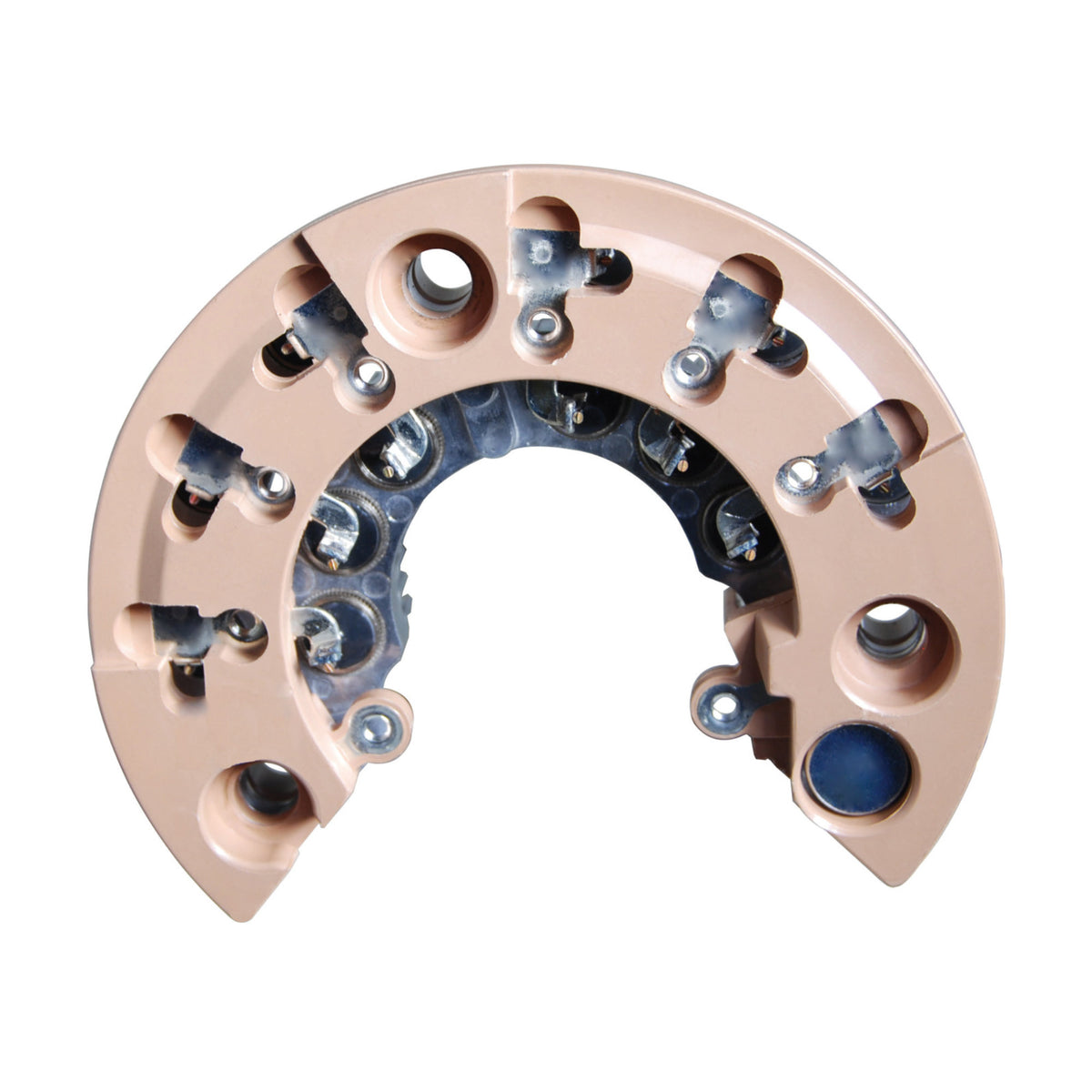

Technical Specifications: Rectifier Diode Assembly, 12 Volt, Mitsubishi IR/IF, M8 X 1.25 Terminal POST
-
Replaces OEM: Mitsubishi A5184-D1345-4120Y, A5184 D2686 8Z07H
-
Aftermarket Crossovers: 77033175, 77033301, 77033322, W065-275 - IMR12211
🔍 Cross-Reference Alternator Assemblies (Fits These Units)
-
Chrysler: 56029580AA, 56029580AB, 56029580AC, 56029656AA, 56029656AB, 56029764AA, 56029764AB, 56029764AC, R6029764AA
-
Ford: 1741221, CJ5T-10300-CB, CJ5T-10300-FA, CJ5T-10300-FB, CJ5Z-10346-C, CJ5Z-10346-E, CJ5Z-10346-G, CT4T-10300-AB, CT4Z-10346-A, DS7T-10300-HA, DS7Z-10346-H
-
Mitsubishi: A002TL0381, A002TL0381ZC, A002TX2081, A002TX2581, A002TX2581ZC, A002TX2681, A002TX2681ZC, A002TX2881, A002TX2881A, A002TX2882, A002TX3481, A002TX3481ZC, A002TX5691AC, A002TX5691ZC, A003TX1382, A003TX1382ZC, A2TL0381, A2TL0381ZC, A2Tx2081, A2TX2581, A2TX2581ZC, A2TX2681, A2TX2681ZC, A2TX2881, A2TX2881A, A2TX3481, A2TX3481ZC, A2TX5691AC, A2TX5691ZC, A3TX1382, A3TX1382ZC
-
Nissan / Infiniti: 23100-3XA0A, 23100-3XA1A, 23100-3XA6A
-
Lester: 11550, 11551, 11638, 11655, 11668, 11687, 20847, 41000
🚘 Vehicle Application Details
-
Chrysler 200: 2012 L4 2.4L
-
Dodge Avenger: 2012 L4 2.4L
-
Dodge Dart: 2013-2014 L4 1.4L, 2013-2016 L4 2.0L, 2012-2016 L4 2.4L
-
Ford Edge: 2012-2014 L4 2.0L
-
Ford Escape: 2013-2019 L4 2.0L, 2013-2019 L4 2.5L
-
Ford Focus: 2013-2018 L4 2.0L, 2016-2018 L4 2.3L
-
Ford Fusion: 2013-2020 L4 2.0L, 2013-2020 L4 2.5L
-
Ford Transit Connect: 2014-2018 L4 2.5L
-
Ram 1500 / 1500 Classic: 2015-2024 V8 5.7L
❤️ Our Worry-Free Promise
Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
