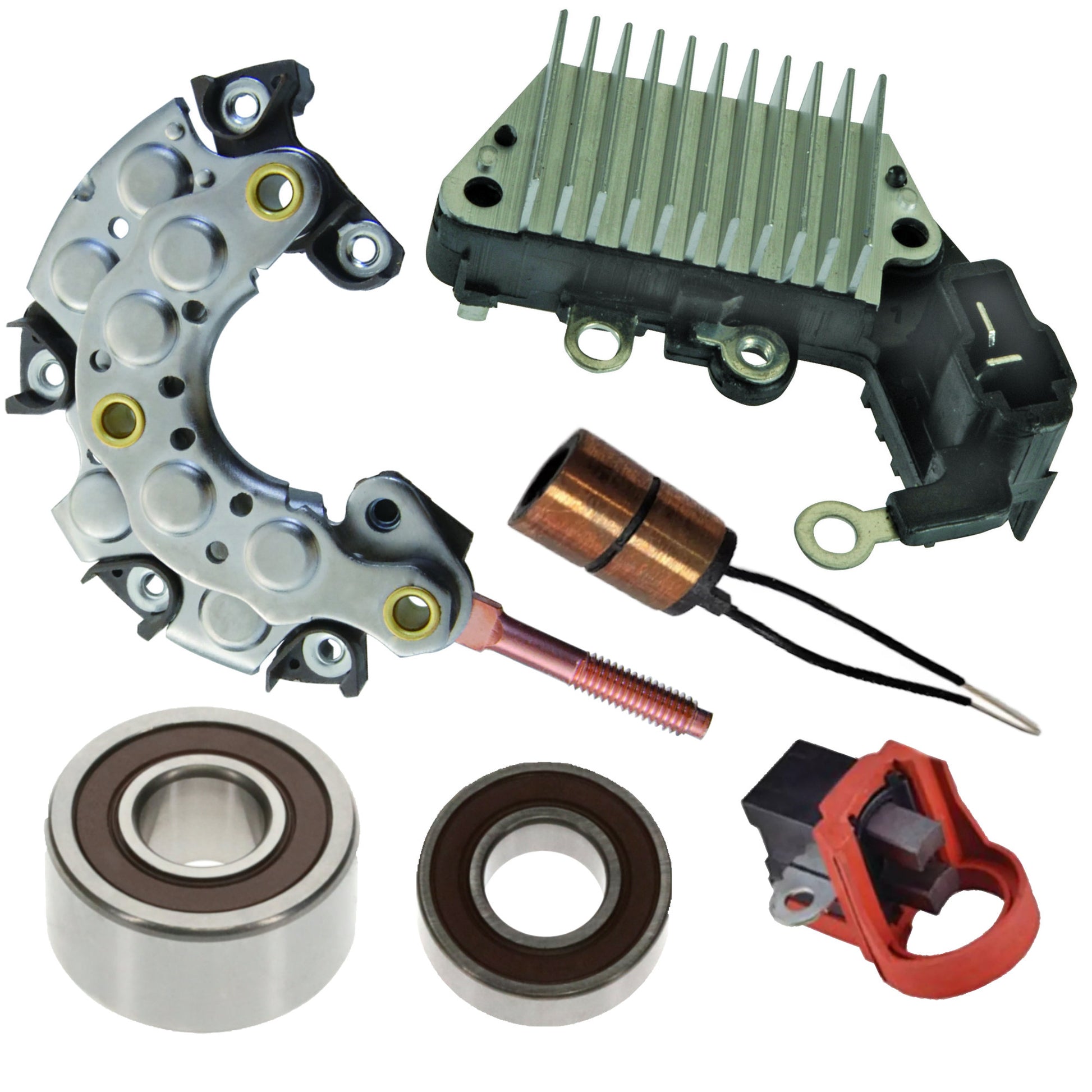

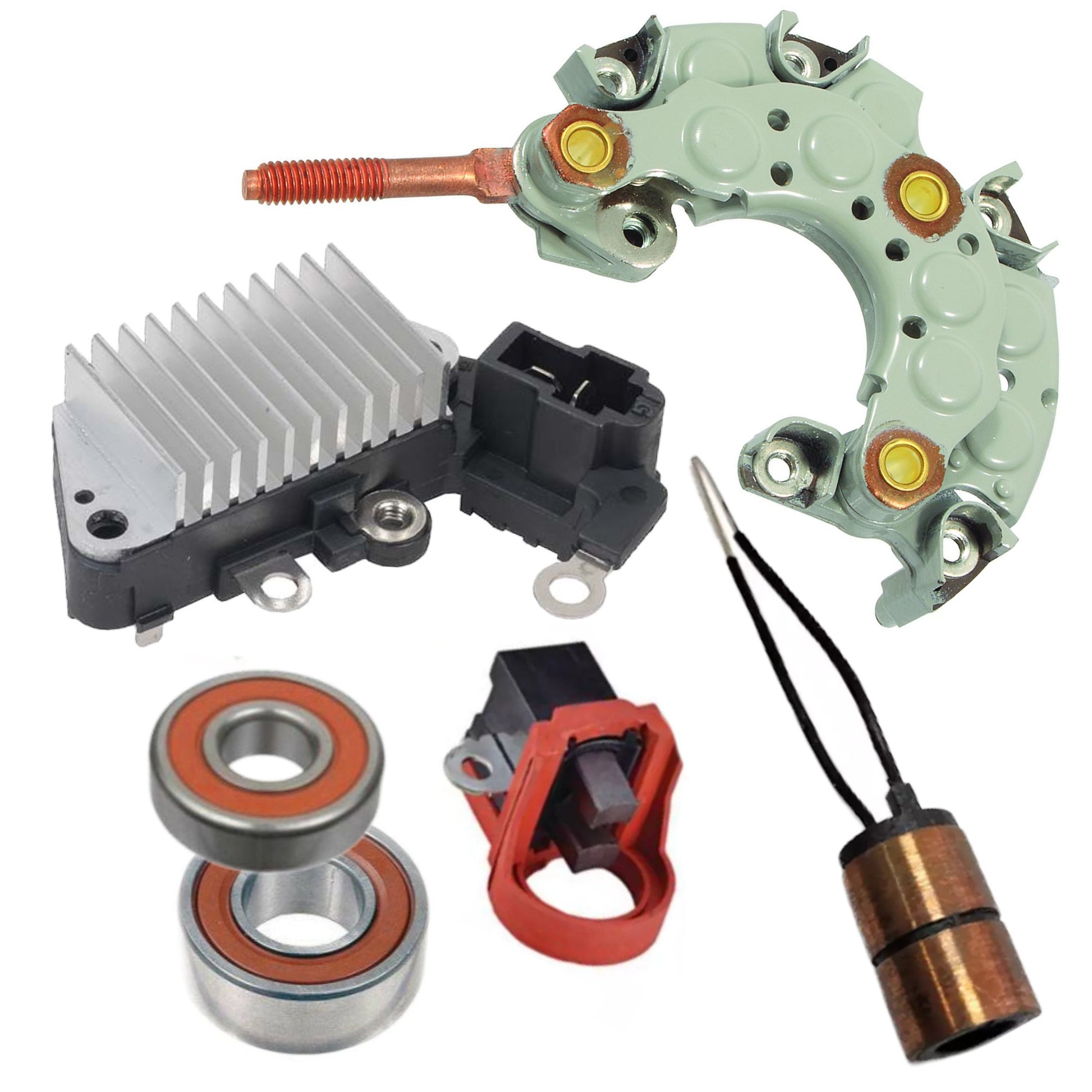

Alternator Rebuild Kit for John Deere 5000 Series Tractors & Gators | with Denso 101211-2470 - 12081PRK-A

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• John Deere 2-Wheel Drive Tractor:
  • 5215 (JD Powertech 2.9L Dsl) (1997-2007)
  • 5300N (3-179 Diesel) (1992-2007)
  • 5310N (3029 J.Deere Dsl. / JD Powertech 2.9L Dsl) (1997-2007)
  • 5315 (JD Powertech 2.9L Dsl) (1997-2007)
  • 5320N (3-179 Diesel) (1997-2007)
  • 5400N (3-179 Diesel) (1992-2007)
  • 5500N (4-239 Diesel) (1994-2007)
• John Deere 4-Wheel Drive Tractor:
  • 5200 (L3 2.9L John Deere 3029D) (1992-1997)
  • 5210 (L3 2.9L John Deere 3029D) (1998-2001)
  • 5215F / 5215V (L3 2.9L John Deere 3029T) (2003-2008)
  • 5220 (L3 2.9L John Deere 3029D) (2001-2004)
  • 5300 (L3 2.9L John Deere 3029D) (1992-1997)
  • 5315F (L3 2.9L John Deere 3029T) (2003-2008)
  • 5320 (L3 2.9L John Deere 3029T) (2001-2004)
  • 5400 (L3 2.9L John Deere 3029T) (1992-1997)
  • 5415F (L4 3.9L John Deere 4039D) (2003-2008)
  • 5500 (L4 3.9L John Deere 4039T) (1996-1997)
  • 5515F (L4 4.5L John Deere 4045T) (2003-2008)
  • 5615F / 5615V (L4 4.5L John Deere 4045D / 4045T) (2001-2011)
• John Deere Agricultural Tractor:
  • 5210 / 5310 (3 Cyl. 2.93L) (1998-2000)
  • 5215F&V / 5315F&V (JD Powertech 2.9L Dsl) (1997-2007)
  • 5220 / 5320 (3 Cyl. 2.93L) (2001-2004)
  • 5300 / 5400 (3 Cyl. 2.93L) (1992-1998)
  • 5500 (4 Cyl. 3.91L 3883cc 237cid) (1996-1998)
• John Deere Utility Vehicle:
  • Gator HPX 4x2 (Yanmar 3TNE68 20HP Dsl) (2006-2011)
  • Gator TH 6x4 (2010-2012)
  • Gator TS (KHI 10HP Gas)
  • Gator TX (KHI 10HP Gas)
  • Gator XUV 620i 4x4 (2007-2010)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso OE: 101211-2470, 101211-2471, 101211-2472, 101211-2473, 9761219-247
• John Deere OE: RE46043, RE72917, RE729171, TY25241
• Lester / PIC References: Lester 12081 | PIC 290-183
• Other Crossovers: WAI 1-3105-01ND, 101211-2471, 12081R, 12081N

📐 Component-Specific Technical Data

⚡ Voltage Regulator Specs

• Technical Specifications: A-Circuit, IG-L, L Terminal, 14.6 Volt Set Point, 57.5mm Center to Center Mounting Holes (L Terminal drives choke)
• Replaces OEM: Denso 126000-4200, D1 126000-4200
• Aftermarket Crossovers: 230-52028, VRH2005-15, MFVR01890, W085-121, 216-008, GNR-N002, VR0570, 80904652, IN255

⚡ Rectifier Diode Bridge Specs

• Technical Specifications: For Denso 101211 Series, 88.2mm OD, 12 Volt, B+ M6 x 1.0 Post
• Replaces OEM: Chengdu Huachuan Denso (CHCD) JT084-53 | Daihatsu 27357-87704-000 | Denso 021580-3030, 021580-3340 | Honda 31127-PE9-941 | Kubota 17369-64851 | Mitsubishi MD604585
• Aftermarket Crossovers: W065-228, 211-267, 172-52047, 77904134, INR737AL, INR737

⚡ Brush Holder Assembly with Brushes and Seal Specs

• Replaces OEM: Denso 021620-2010, 021620-2180, 021620-2200, 021620-2201, 021620-2630, 021620-2750 | Honda 31105-PT0-B91
• Interchange Numbers: 39-8200, W155-04, W155-04B, W035-04

⚡ Drive End Bearing (Front) Specs

• Industry Number: 348
• Dimensions: 15mm ID x 38mm OD x 19mm W
• Replaces OEM: Denso 949100-3360, 949100-3361, 949100-3380
• Interchange Numbers: 10-2022-4W, W02X-32

⚡ Rotor SRE Bearing (Rear) Specs

• Industry Number: 53207 / 6002DW
• Dimensions: 15mm ID x 32mm OD x 11mm W
• Replaces OEM: Denso 949100-3170, 949100-3230, 949100-3650, 949100-3660, 949100-3670 | Honda 31114-PE9-942
• Interchange Numbers: 217-020, 6-3102-4W, W02X-59-1

⚡ Slip Ring Specs

• Dimensions: 8.9mm ID x 14.6mm OD x 23.9mm Length
• Interchange Numbers: 7190904A, 313-52001, 14520W, 213-500, ND-492, 28-82853, W165-00L, W165-04
