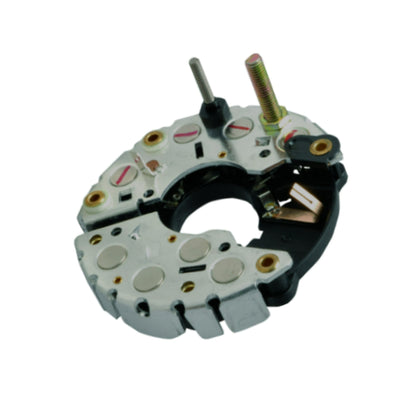

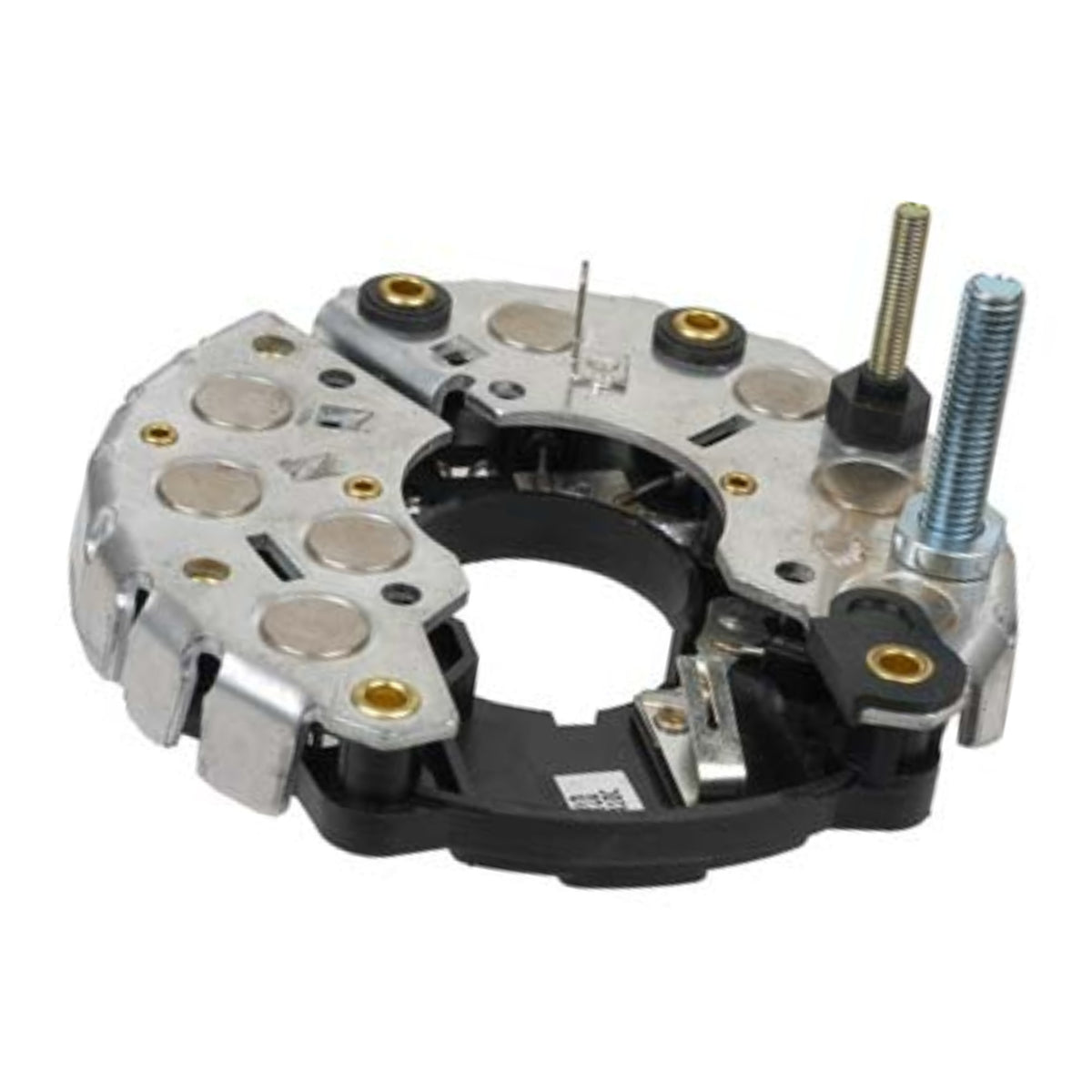

Rectifier Diode Assembly for Alfa Romeo, Mercedes, Fiat, VW... with Bosch 469 Series - IBR354

Need to rebuild or repair your vehicle's alternator? This premium replacement rectifier is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

📐 Component-Specific Technical Data

• Technical Specifications: Rectifier Diode Bridge Assembly, 12 Volt, 120mm OD, M5 x 0.8 x 20mm D+ Terminal (Trio), M8 x 1.25 x 33mm Battery Terminal, With AUX terminal & Diode Trio, 8-50A press-fit diodes, for Bosch 468, 469 Series 80-115A IR/EF Alternators
• Replaces OEM: Alfa Romeo 60752014; Audi, Volkswagen 026-903-359, 027-903-359, 034-903-359, 037-903-359A, 054-903-359; BMW 12-31-1-288-457, 12-31-1-715-167; Bosch 1127320565, 1 127 320 702, 1127320705, 1 127 320 709, 1127320710, 1 127 320 722, 1127320723, 1127320728, 1127320732, 1 127 320 733, 1127320737, 1127320739, 1127320745, 1 127 320 747, 1127320749; Fiat 9944315, 9944316; GM 90349703, 90349855, 90443928; Lucas UBB433; Marelli 940038208; Mercedes-Benz 000-154-26-16, 000-154-59-16, 000-154-86-16, 000-154-99-16, 001-154-26-16, 001-154-31-16; Opel 12-05-453, 90-443-928; Saab 95-13-177, 95-55-293; Volvo 9130095
• Aftermarket Crossovers: 172-24035, RB54, 171-217, W060-29, BO-679, IBR354, 77201024B, 77201101, 7720-1017A, IBR355, 31-9111

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Alfa Romeo: 60513888, 605138880
• Audi, Volkswagen: 025-903-023, 025-903-023-A, 025-903-023-C, 025-903-023-D, 025-903-023-E, 025-903-023A, 025-903-023C, 025-903-023D, 025-903-023E, 026-903-015-B, 026-903-015-C, 026-903-015-F, 026-903-015B, 026-903-015C, 026-903-015F, 026-903-017-BX, 026-903-017-X, 026-903-017BX, 026-903-017X, 026-903-023, 027-903-015-A, 027-903-015-C, 027-903-015A, 027-903-015C, 027-903-017, 034 903 016 M, 034-903-015, 034-903-015-D, 034-903-015-F, 034-903-015-H, 034-903-015-K, 034-903-015-M, 034-903-015-Q, 034-903-015-T, 034-903-015D, 034-903-015F, 034-903-015H, 034-903-015K, 034-903-015M, 034-903-015Q, 034-903-015T, 034-903-016, 034-903-016-A, 034-903-016-B, 034-903-016-C, 034-903-016-D, 034-903-016-E, 034-903-016-F, 034-903-016-G, 034-903-016-H, 034-903-016A, 034-903-016B, 034-903-016C, 034-903-016D, 034-903-016E, 034-903-016F, 034-903-016G, 034-903-016H, 034-903-017, 034-903-017-A, 034-903-017-B, 034-903-017-BX, 034-903-017-Q, 034-903-017-X, 034-903-017A, 034-903-017B, 034-903-017BX, 034-903-017Q, 034-903-017X, 034-903-023-M, 034-903-023M, 034-903-171, 035-903-015-R, 035-903-015-S, 035-903-015R, 035-903-015S, 035-903-017-A, 035-903-017-Q, 035-903-017A, 035-903-017Q, 035-903-023-B, 035-903-023-D, 035-903-023B, 035-903-023D, 037-903-018-A, 037-903-018A, 037-903-023-A, 037-903-023A, 046-903-015-D, 046-903-015-G, 046-903-015-GX, 046-903-015D, 046-903-015G, 046-903-015GX, 049-903-023-P, 049-903-023P, 049-903-027, 049-903-027-A, 049-903-027A, 050-903-015-J, 050-903-015J, 051-903-015-A, 051-903-015-B, 051-903-015-D, 051-903-015A, 051-903-015B, 051-903-015D, 053-903-015-D, 053-903-015-E, 053-903-015D, 053-903-015E, 054-903-015, 054-903-015-J, 054-903-015-L, 054-903-015J, 054-903-015L, 068-903-018, 068-903-018-A, 068-903-018-X, 068-903-018A, 068-903-018X, 073-903-023, 073-903-023-A, 073-903-023A, 077-903-015, 077-903-015-C, 077-903-015C, 077-903-017, 077-903-017-X, 077-903-017X, 176-903-027
• BMW: 12-31-1-277-505, 12-31-1-284-460, 12-31-1-288-408, 12-31-1-288-409, 12-31-1-288-595, 12-31-1-289-403, 12-31-1-289-404, 12-31-1-289-442, 12-31-1-309-801, 12-31-1-310-075, 12-31-1-310-099, 12-31-1-310-542, 12-31-1-466-086, 12-31-1-466-087, 12-31-1-706-056, 12-31-1-710-725, 12-31-1-711-203, 12-31-1-711-204, 12-31-1-711-373, 12-31-1-711-375, 12-31-1-713-449, 12-31-1-713-450, 12-31-1-714-219, 12-31-1-714-220, 12-31-1-726-602, 12-31-1-726-603, 12-31-1-726-604, 85-31-1-277-505
• Bosch: 0-120-468-017, 0-120-468-018, 0-120-468-019, 0-120-468-020, 0-120-468-022, 0-120-468-023, 0-120-468-024, 0-120-468-025, 0-120-468-026, 0-120-468-027, 0-120-468-029, 0120468035, 0120468036, 0-120-468-034, 0120468045, 0120468046, 0-120-468-044, 0-120-468-052, 0-120-468-056, 0120468057, 0120468058, 0120468059, 0-120-468-068, 0-120-468-069, 0-120-468-070, 0-120-468-077, 0-120-468-078, 0-120-468-079, 0-120-468-088, 0-120-468-089, 0120468091, 0120468092, 0-120-468-101, 0-120-468-106, 0-120-468-108, 0-120-468-109, 0-120-468-112, 0-120-468-121, 0-120-468-122, 0-120-468-123, 0120468125, 0-120-468-134, 0-120-469-002, 0-120-469-003, 0-120-469-011, 0-120-469-012, 0-120-469-016, 0-120-469-017, 0-120-469-571, 0-120-469-572, 0120469575, 0120469576, 0-120-469-581, 0-120-469-582, 0-120-469-586, 0-120-469-587, 0-120-469-594, 0-120-469-595, 0-120-469-600, 0-120-469-611, 0-120-469-617, 0-120-469-618, 0-120-469-619, 0-120-469-620, 0-120-469-621, 0-120-469-622, 0-120-469-623, 0-120-469-624, 0-120-469-631, 0-120-469-632, 0-120-469-633, 0-120-469-636, 0-120-469-639, 0120469641, 0120469644, 0120469645, 0-120-469-648, 0-120-469-649, 0120469667, 0120469682, 0120469683, 0120469684, 0120469685, 0-120-469-689, 0-120-469-690, 0-120-469-694, 0-120-469-696, 0-120-469-697, 0-120-469-698, 0-120-469-700, 0-120-469-708, 0-120-469-709, 0-120-469-712, 0-120-469-720, 0-120-469-721, 0-120-469-725, 0-120-469-726, 0-120-469-727, 0-120-469-728, 0-120-469-729, 0-120-469-730, 0-120-469-731, 0-120-469-732, 0-120-469-733, 0-120-469-742, 0-120-469-743, 0-120-469-744, 0-120-469-745, 0-120-469-746, 0120469757, 0120469758, 0120469759, 0-120-469-768, 0-120-469-777, 0-120-469-778, 0-120-469-779, 0-120-469-780, 0-120-469-782, 0-120-469-783, 0-120-469-790, 0120469794, 0120469795, 0120469799, 0120469800, 0-120-469-801, 0-120-469-802, 0-120-469-804, 0-120-469-805, 0-120-469-806, 0-120-469-808, 0-120-469-809, 0-120-469-810, 0-120-469-811, 0-120-469-812, 0-120-469-815, 0-120-469-816, 0-120-469-817, 0120469818, 0120469819, 0-120-469-822, 0-120-469-823, 0-120-469-831, 0-120-469-832, 0-120-469-833, 0-120-469-834, 0-120-469-835, 0-120-469-839, 0-120-469-844, 0-120-469-862, 0-120-469-864, 0-120-469-865, 0-120-469-873, 0120469880, 0120469881, 0-120-469-885, 0-120-469-886, 0-120-469-887, 0-120-469-888, 0-120-469-889, 0-120-469-894, 0-120-469-896, 0-120-469-897, 0-120-469-903, 0-120-469-908, 0-120-469-925, 0-120-469-926, 0-120-469-927, 0-120-469-928, 0-120-469-933, 0-120-469-934, 0-120-469-941, 0-120-469-942, 0-120-469-943, 0-120-469-944, 0-120-469-945, 0-120-469-946, 0-120-469-947, 0-120-469-948, 0-120-469-953, 0-120-469-962, 0-120-469-970, 0-120-469-971, 0-120-469-972, 0-120-469-975, 0-120-469-992, 0-120-469-993, 0-120-469-994, 0-120-469-995, 0-120-469-998
• Lester: 13191, 13242, 13243, 13244, 13246, 13247, 13260, 13281, 13360, 13361, 13363, 13367, 13369, 13603, 14396, 14483, 14765, 14778, 14782, 14791, 14799, 14812, 14813, 14825, 14956, 14964, 14972, 20398, 21582, 22452, 22454, 22610, 22814, 22817, 22978, 23631, 23691, 23740

🚘 Vehicle Application Details

• Alfa Romeo 164: (1991-1992) V6 3.0L
• Audi 80: (1988-1990) L4 2.0L, (1991-1992) L5 2.3L
• Audi 80 Quattro: (1988-1992) L5 2.3L
• Audi 90: (1988) L4 2.0L, (1988-1991) L5 2.3L
• Audi 90 Quattro: (1988-1991) L5 2.3L
• Audi 100: (1989-1991) L5 2.3L
• Audi 100 Quattro: (1989-1991) L5 2.3L
• Audi 200: (1989-1991) L5 2.2L
• Audi 200 Quattro: (1989-1991) L5 2.2L
• Audi 4000: (1986-1987) L4 1.8L, (1986) L5 2.2L
• Audi 4000 Quattro: (1986-1987) L5 2.2L
• Audi 5000: (1986-1988) L5 2.2L, (1987-1988) L5 2.3L
• Audi 5000 Quattro: (1986-1988) L5 2.2L, (1987-1988) L5 2.3L
• Audi Coupe: (1985-1987) L5 2.2L, (1987) L5 2.3L
• Audi Coupe Quattro: (1990-1991) L5 2.3L
• Audi Quattro: (1986) L5 2.2L
• Audi S4: (1992-1994) L5 2.2L
• Audi V8 Quattro: (1990-1991) V8 3.6L, (1992-1994) V8 4.2L
• BMW 318i: (1984-1985) L4 1.8L
• BMW 325 / 325e / 325es: (1984-1988) L6 2.7L
• BMW 325i / 325is / 325iX: (1987-1992) L6 2.5L
• BMW 528e: (1984-1988) L6 2.7L
• BMW 533i: (1983-1984) L6 3.2L
• BMW 535i: (1985-1988) L6 3.5L
• BMW 633CSi: (1982-1984) L6 3.2L
• BMW 635CSi: (1985-1989) L6 3.5L
• BMW 733i: (1982-1984) L6 3.2L
• BMW 735i: (1985-1986) L6 3.5L
• BMW L6 / L7: (1986-1987) L6 3.5L
• BMW M3: (1988-1991) L4 2.3L
• BMW M5 / M6: (1987-1988) L6 3.5L
• Chrysler Daytona / Laser / LeBaron / New Yorker / Town & Country: (1984-1986) L4 2.2L, L4 2.5L
• Dodge 600 / Aries / Daytona / Lancer: (1984-1985) L4 2.2L
• Jaguar Vanden Plas / XJ6: (1988-1989) L6 3.6L, (1990-1992) L6 4.0L
• Jaguar XJ12: (1987-1992) V12 5.3L
• Jaguar XJRS: (1993) V12 6.0L
• Jaguar XJS: (1987-1992) V12 5.3L, (1992-1996) L6 4.0L, (1994-1995) V12 6.0L
• Mercedes-Benz 190E / 260E: (1987-1993) L6 2.6L
• Mercedes-Benz 300CE / 300E / 300SE / 300SEL / 300TE: (1988-1993) L6 2.6L, L6 3.0L
• Mercedes-Benz 350SDL: (1990-1991) L6 3.4L Diesel
• Plymouth Caravelle / Reliant / Turismo 2.2: (1984-1985) L4 2.2L
• Porsche 911: (1989) H6 3.2L, H6 3.3L, (1989-1993) H6 3.6L
• Porsche 924: (1987-1988) L4 2.5L
• Porsche 928: (1985-1991) V8 5.0L, (1993-1995) V8 5.4L
• Porsche 944: (1983-1989) L4 2.5L, (1989) L4 2.7L, (1989-1991) L4 3.0L
• Porsche 968: (1992-1995) L4 3.0L
• Saab 900: (1986-1987) L4 2.0L
• Saab 9000: (1986-1990) L4 2.0L, (1990-1995) L4 2.3L, (1995) V6 3.0L
• Volkswagen Atlantic / Caribe / Combi / Corrado / Fox / Golf / Jetta / Passat / Scirocco: (1984-1995) L4 1.7L, L4 1.8L, L4 2.0L
• Volkswagen Quantum: (1986-1988) L5 2.2L
• Volkswagen Transporter / Vanagon: (1986-1991) H4 2.1L

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
