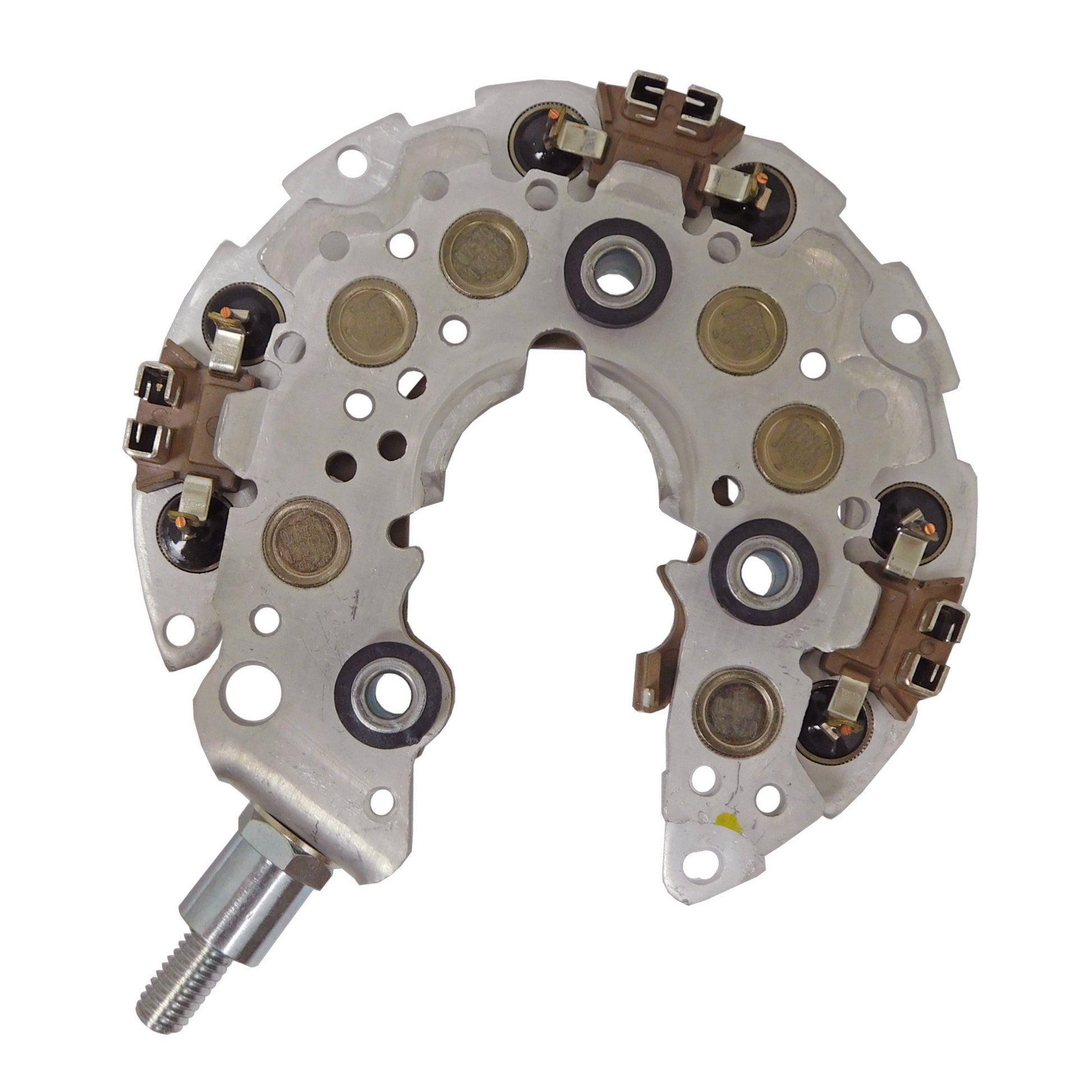

Rectifier Diode Bridge Assembly 117mm OD Avalanche Diodes, M8 x 1.25 B+ Terminal Post - 77904070 - INR433

Need to rebuild or repair your vehicle's alternator? This premium replacement rectifier bridge is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

📐 Component-Specific Technical Data

• Technical Specifications: Alternator Rectifier Diode Bridge Assembly, 117mm Outer Diameter (OD), High-Capacity Avalanche Diodes, M8 x 1.25 Battery Terminal (B+ Post), Designed for Denso Hairpin Alternators
• Replaces OEM: Denso 1648, 2648, 648, 6482, 720
• Aftermarket Crossovers: 211-218, 172-52051, TRN-7433, INR439AL, 77904070, INR433, (see INR442, INR439 application added below too)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Acura: 31100-RGL-A01, 31100-RGL-A01RM, 31100-RGW-A01, 31100-RGW-A01RM, 31100-RJA-A01, 31100-RJA-A02, CSD29, CSD69, CSF92
• Denso: 104210-1060, 104210-1240, 104210-2910, 104210-2950, 104210-3710, 104210-3711, 104210-3770, 104210-4000, 104210-4001, 104210-4290, 104210-4420, 104210-4421, 104210-4480, 104210-4481, 104210-4690, 104210-591, 104210-5910, 104210-592, 104210-5920, 104210-5970, 104211-7310, 104211-7330, MX104211-7310, MX104211-7330, TN104210-2950, TN104210-4690, TN104210-5910, TN104210-5920
• Ford & Ford Engineering: 5178833, 9L3T-10300-CB, 9L3Z-10346-C, AL1Z-10346-A, BR3Z-10346-E, DS7Z-10346-D, PC3T-10300-GA, PC3T-10300-LA, 9L3T-CB, BR3T-10300-LA, DS7T-10300-DB, PC3Z-10346-B, PC3Z-10346-D
• GM (Chevrolet / Pontiac / Saturn): 10355395, 12582024, 84009358
• Honda: 06311-R70-505RM, 06311-RCB-505RM, 06311-RGW-505RM, 06311-RJA-505RM, 06311-RV0-505RM, 06311-RV0-515RM, 31100-R70-A01, 31100-R70-A01RM, 31100-RCB-505RM, 31100-RCB-Y02, 31100-RDM-A01, 31100-RDM-A01RM, 31100-RGL-A01, 31100-RGL-A01RM, 31100-RGW-A01, 31100-RGW-A01RM, 31100-RJA-A01, 31100-RJA-A02, 31100-RV0-A01, 31100-RV0-A01RM, CSC77, CSD29, CSD48, CSD69, CSF91, CSF92, CSJ24
• Other Manufacturers: Hyundai 37300-2F200; Land Rover YLE500200, YLE500400
• Toyota / Lexus: 27060-50340, 27060-50340-84, 115632, 4287, AMA152, TN104210-5910
• Lester / PIC References: 11030, 11062, 11140, 11150, 11151, 11197, 11292, 11391, 11392, 11573, 11626, 11666, 20133, 22910, 22915, 24028

🚘 Vehicle Application Details

• Acura MDX (2005-2006) V6 3.5L 3471cc
• Acura MDX (2007-2013) V6 3.7L 3664cc
• Acura RL (2005-2008) V6 3.5L 3471cc
• Acura RL (2009-2012) V6 3.7L 3664cc
• Acura TL (2005-2008) V6 3.2L 3210cc
• Acura TL (2007-2014) V6 3.5L 3471cc
• Acura TL (2009-2014) V6 3.7L 3664cc
• Acura TSX (2010-2014) V6 3.5L 3471cc
• Acura ZDX (2010-2013) V6 3.7L 3664cc
• Chevrolet Cobalt (2006-2007) L4 2.2L 2198cc 134cid / L4 2.4L 2384cc 145cid
• Chevrolet HHR (2006-2007) L4 2.2L 2198cc 134cid / L4 2.4L 2384cc 145cid
• Ford E-450 Super Duty (2024-2026) V8 7.3L 7292cc 445cid
• Ford F-150 (2009-2010) V8 4.6L 281cid (VIN 8) / V8 5.4L 330cid
• Ford F-250 Super Duty (2023-2026) V8 6.7L 6651cc / V8 6.8L 6801cc / V8 7.3L 7292cc
• Ford F-250 (2009) V8 4.6L 281cid
• Ford F-350 Super Duty (2023-2026) V8 6.7L 6651cc / V8 6.8L 6801cc / V8 7.3L 7292cc
• Ford F-450 Super Duty (2023-2026) V8 6.7L 6651cc / V8 7.3L 7292cc
• Ford F-550 Super Duty (2023-2026) V8 6.7L 6651cc / V8 7.3L 7292cc
• Ford Fusion (2013-2014) L4 1.6L 1596cc 97cid
• Ford Fusion (2014-2016) L4 1.5L 1499cc 91cid
• Ford Lobo (2009-2010) V8 5.4L 330cid
• Ford Mustang (2011-2014) V8 5.0L 4951cc 302cid (VIN F)
• Honda Accord Crosstour (2010) V6 3.5L 3471cc
• Honda Accord (2004-2006) V6 3.0L 2997cc
• Honda Accord (2008-2012) V6 3.5L 3471cc (Engine: J35Z3)
• Honda Odyssey (2005-2013) V6 3.5L 3471cc (Engine: J35A6)
• Honda Pilot (2005-2015) V6 3.5L 3471cc (Engine: J35A9)
• Honda Ridgeline (2006-2014) V6 3.5L 3471cc
• Lexus GS430 (2006-2007) V8 4.3L 4293cc
• Lexus LS430 (2004-2006) V8 4.3L 4293cc
• Pontiac G5 & Pursuit (2006-2007) L4 2.2L 2198cc / L4 2.4L 2384cc
• Saturn Vue (2004-2007) V6 3.5L 3471cc / 3474cc / 3475cc

❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds.
