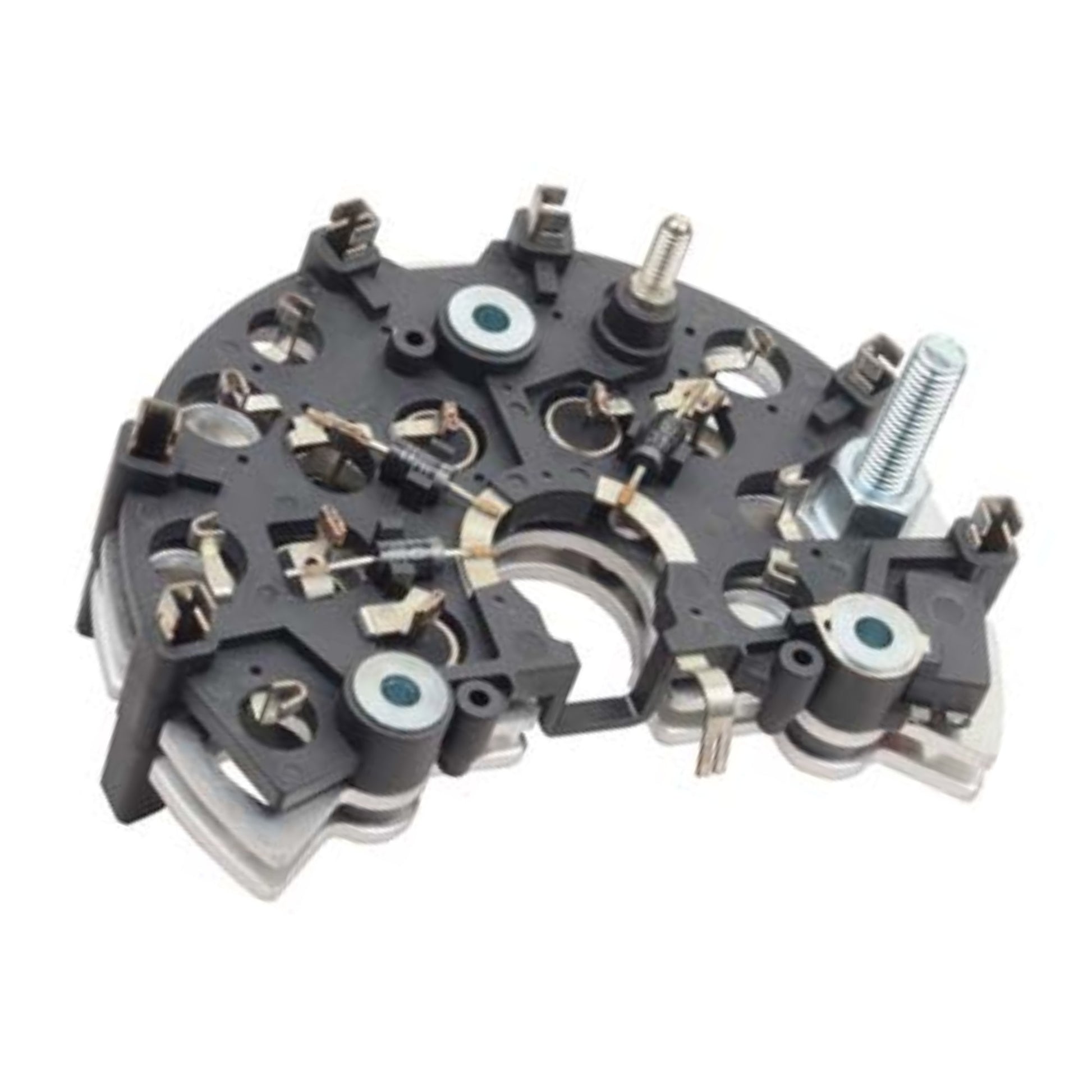

Rectifier Diode Bridge Assembly, 124mm OD, 8mm B+ POST, 5mm D+ POST 77201110, 77201239 - W060-65

Need to rebuild or repair your vehicle's alternator? This premium replacement rectifier bridge assembly is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

Component-Specific Technical Data

• Technical Specifications: Rectifier Diode Bridge Assembly - 124mm OD, 8mm B+ POST x 23mm L, 5mm D+ POST, 6-50 AMP 23 VOLT AVALANCHE DIODES, WITH DIODE TRIO, DELTA
• Replaces OEM: Bosch 1127319534, 1127319535, 1127319558, 1127319562, 1127319568, 1127319696, 1127319713, 1127319714, 1127319805, 1127319806; Mercedes-Benz 0011542316; Volkswagen 028903359F
• Aftermarket Crossovers: 17224091, 17224113, 77201110, 77201239, 08125, RB110H, W06065

Cross-Reference Alternator Assemblies (Fits These Units)

• Bosch: 0123505009, 0123505011, 0123505013, 0123510008, 0123510009, 0123510014, 0123510023, 0123510028, 0123510031, 0123510033, 0123510038, 0123510039, 0123510040, 0123510044, 0123510045, 0123510049, 0123510050, 0123510051, 0123510058, 0123510059, 0123510061, 0123510066, 0123510067, 0123510068, 0123510072, 0123510073, 0123510080, 0123510081, 0123510088, 0123510091, 0123510093, 0123510101, 0123510102, 0123512500, 0123515003, 0123515008, 0123515009, 0123515011, 0123515012, 0123515014, 0123515018, 0123515024, 0124515091, 0986040600, F00E100029
• Bosch Aftermarket: AL0702X, AL0711X, AL0712X, AL0713X, AL0718X, AL0720X, AL0721X, AL0723X, AL0762X, AL0763X, AL0764X, AL0765X, AL0767X, AL0783X, AL0793X, AL0796X, AL0807N, AL0807X, AL5053X
• DENSO Auto Parts: 2105387, 2106122
• Ford: 95VW10300ABA, 95VW10300EC
• John Deere: AL111676, AL114093
• Land Rover: ERR6413, ERR6413E
• Lester / PIC References: 12370, 12383, 12676, 13357, 13622, 13623, 13624, 13793, 13797, 13808, 13812, 13817, 13819, 13833, 13972, 21362, 21430, 22606, 22886, 23237
• Mercedes-Benz: 0091548802, 0091549302, 0101540102, 0101540202, 0101540302, 0101540402, 0101540502, 0101540602, 0101540702, 0101541202, 0101543202, 010154320280, 010154320283, 0101544002, 010154400280, 0101545102, 010154510280, 0101545202, 010154520280, 0101546502, 0101547402, 0101549402, 010154940280, 0111540702, 0111540802, 0121545402, 0191544002, A0091548802, A0091549302, A0101540102, A0101540502, A0101540702, A010154320280, A010154320283, A010154400280, A010154510280, A010154520280, A0101549402, A010154940280, A0111540702, A0101540602, A0101541202, A0101543202, A0101544002, A0101545102, A0101545202
• Saab: 4614475, 4929451, 4929475, 5246905
• Volkswagen: 00A903025A, 028903018B, 028903018BX, 028903018E, 028903025F, 028903025S, 028903027G, 028903028, 028903028A, 028903028F, 046903015F, 046903015FX, 054903015K, 054903015KV, 054903015KX, 058903016C, 058903016CX, 058903016D, 058903018C, 058903018CX, 059903015, 059903015X, 071903016H, 078903015F, 078903015FX

Vehicle Application Details

• Applications: Fits premium passenger vehicles, agricultural equipment, and utility trucks—including select models from Mercedes-Benz, Volkswagen, Audi, Saab, Land Rover, Ford (Europe), and John Deere—equipped with the matching Bosch or Denso alternator assembly part numbers listed above. (Please cross-verify the identification stamp on your current alternator to confirm exact compatibility before purchasing).

Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
