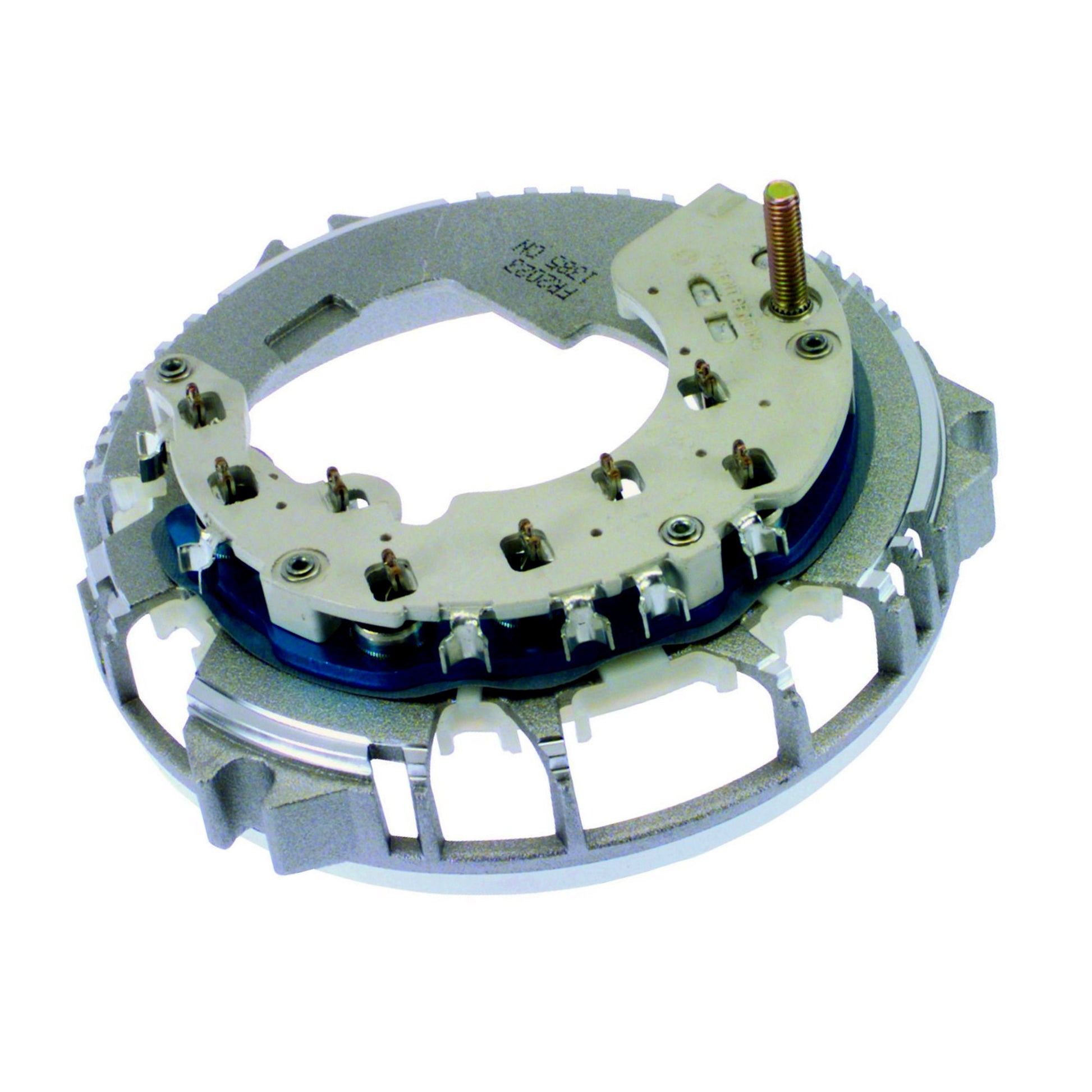

Rectifier Diode Bridge Assembly for Ford Large Frame 3G Alternators - 77502519 FR2023

Rectifier Diode Bridge Assembly for Ford Large Frame 3G Alternators - 77502519 FR2023

FR2023

$39.98 USD
$39.98 USD
$39.98 each
Sale Sold out
Shipping calculated at checkout.
  • Fast Shipping
  • 30 Day Money Back Guarantee
  • 1 Year Warranty
View full details
Need to repair your alternator? This premium replacement rectifier bridge exceeds original factory specs, ensuring a perfect fit and long-lasting charging performance.


🚘 Vehicle Application Details
• Ford Cars, Trucks, and Vans equipped with Large Frame 3G Series 95-130 Amp Alternators

🔍 Cross-Reference Alternator Assemblies
• OEM Ford: 2C2U-10300-BB, 2L3U-10300-BB, 5C2T-10300-BC, 5C2Z-10346-AA, 5C2Z-10346-BA, 5C3T-10300-AA, 5C3T-10300-AC, 5C3Z-10346-AA, 5L2T-10300-AA, 5L2Z-10346-AA, 6C2T-10300-BA, 6C2Z-10346-BA, 6L2T-10300-BA, 6L2Z-10346-BA, F0DF-10300-BA, F0DU-10300-BB, F0DU-10300-BC, XL1U-10300-BB, XL3U-10300-BA, XU2U-10300-AA
• Lester 7748, 7752, 7756, 7764, 7768, 7769, 7770, 7771, 7774, 7775, 7776, 7777, 7778, 7791, 7792, 8267, 8429, 8519

📐 Component-Specific Technical Data
⚡ Rectifier Diode Bridge Specs:
• Component Type: Alternator Rectifier Diode Bridge Assembly
• Alternator Series: Ford Large Frame 3G
• Amperage Rating: 95-130 Amp Units
• Outer Diameter (OD): 147mm
• Battery Terminal (B+ Post): 6mm Threaded Post
• Diode Count: 8 High-Capacity Diodes
• Design Feature: New updated design with drop-down leads
• Replaces: Ford F0DU-10A366-DAIP, F5AZ-10304-AA, D4DU10300BA, D4DU10300CA, F0DU10346CC, F5AZ10304AA, Other: MFRX01242, RF05, RF053, T31, T33, 172-14051, 172-14016, 172-14027, 172-14049, 172-14062, 121-219, 121-242, F06-05, F06-22, 77502519 A B C - FR2023

 ❤️ Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, or you do not want to tackle the project after all, don't sweat it. We offer easy 30 Day, no-hassle exchanges, returns and fast refunds. We are here to help your DIY build succeed!
