Need to rebuild or repair your vehicle's alternator? This premium rebuild component is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.
📐 Component-Specific Technical Data
-

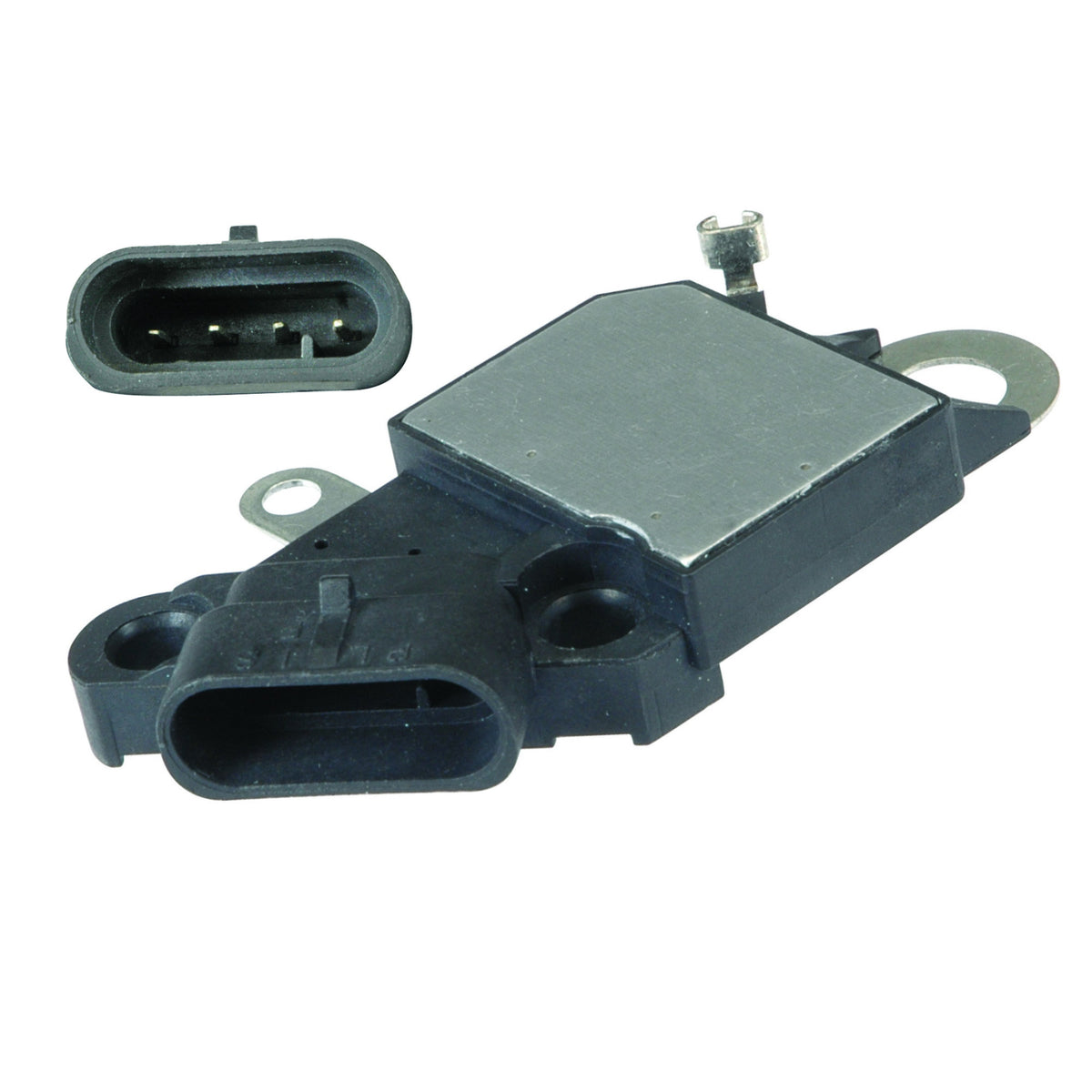

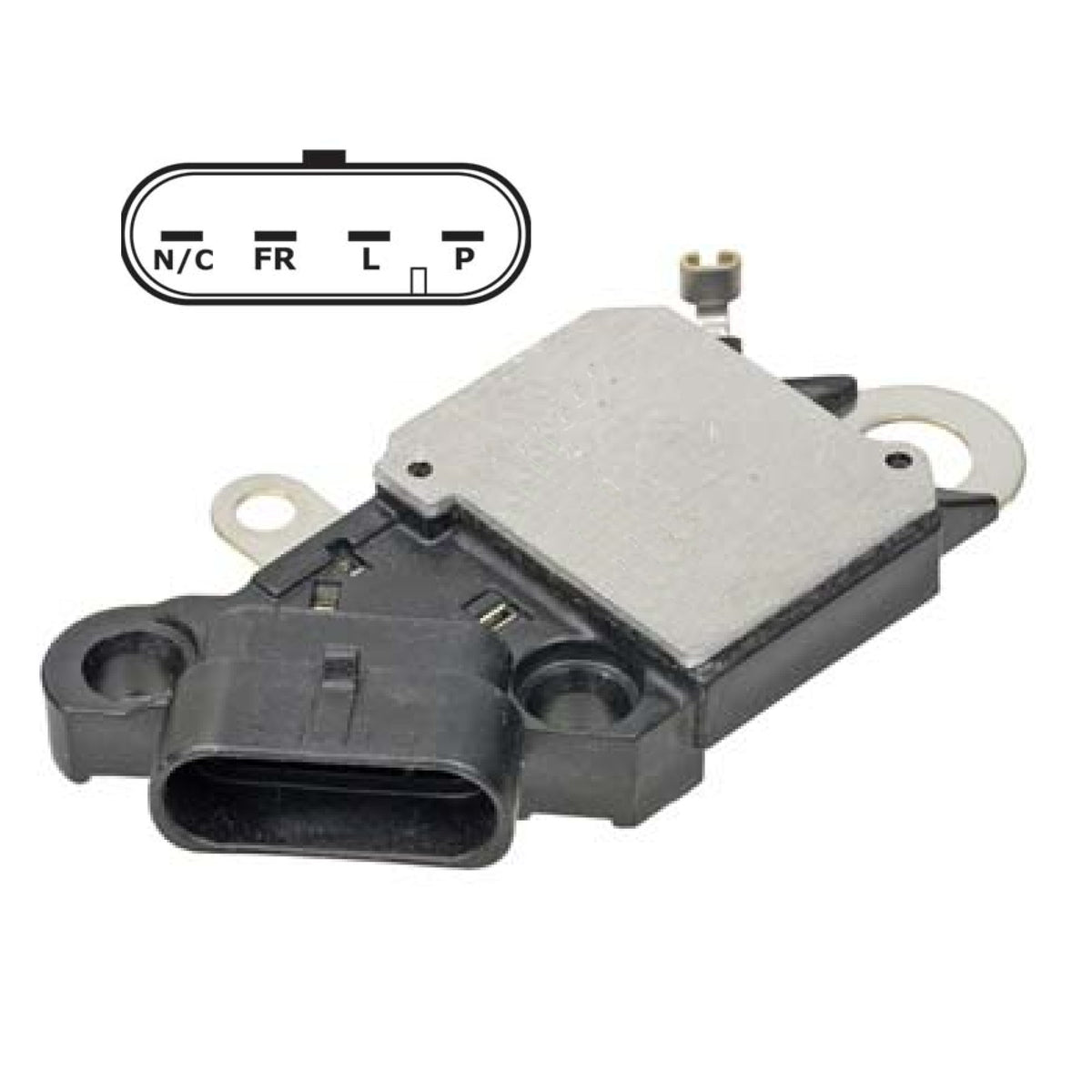

Technical Specifications: 24 Volt, Delco 24SI, 24SI HP, B-Circuit, Remote Sense, Ext. Field Monitor, Ind. Lamp, Phase | N/C-FR-L-P
-
Replaces OEM: Delco 10514476, 10521828, 10526698, 61008308
-
Aftermarket Crossovers: D4476, 77401172, 230-12201
🔍 Cross-Reference Alternator Assemblies (Fits These Units)
-
Cummins: 3972735, 4936879, 4993343, 5282841
-
Delco: 8600016, 8600017, 8600020, 8600154, 8600360, 8600407, 8600504, 8600506, 8700019
-
Doosan: 22616965, 23061674
-
JCB: 333/E5501, 714-40388, 714-40473, 714-40537
-
Lucas: LRA03812
-
Prestolite: MDA3946
-
Lester: 8708, 8709
🚘 Vehicle Application Details
-
Bomag Rollers, Pavers & Compactors: BW 213 DH-40 / BW213 PDH-40 / BW266 AD-4 / BW278 AD-4 / BW278 AD-4 AM / BW284 AD / C766 D / C778 D / C784 A / C850 D 2009-2016 L4 4.5L (Cummins QSB 4.5), CR452 / CR462 / CR552 / CR562 / CR652 RX / CR662 RM 2008-2023 L6 6.7L (Cummins QSB 6.7)
-
Doosan Loaders, Excavators & Compressors: DL160 / DL420 / DL450 / DL500 / DX140LCR 2007-2013 L6 10.8L (Cummins QSM11), DL400 2006-2011 L6 8.9L (Cummins QSL9), DX140LCR-3 / P425 2013-2017 L4 4.5L (Cummins QSB 4.5), HP450 / P600 / VHP400W / VHP700W / XP535W / XP825W 2014-2020 L6 6.7L (Cummins QSB 6.7)
-
Dynapac Rollers & Pavers: CA3500D / CA3500DCO / CA3500PD / CA4000D / CA4000PD / CC4200 / CC4200C / CC5200 / CC5200C / CC524HF / CC6200 / CC624HF / CC7200 2007-2023 L4 4.5L (Cummins QSB 4.5), CA510D / CA510PD / CA610D / CA610PD / CA702D / CA702PD / CC424HF / DF145C / DF145CS / DF145P / F1000T / F1000W / F141CR / F161W / F181C / F182CS / F2500C / F2500CS / F2500W / F2500WS / F3030C / F800T / F800W / SD2550C 1999-2022 L6 6.7L (Cummins QSB 6.7)
-
Hitachi Wheel Loaders: ZW180 / ZW220 2007-2020 L6 6.7L (Cummins QSB 6.7)
-
Hyster Forklifts: H10.00XM / H12.00XM / H16.00XM / H16XM / H16XMS / H18.00XM / H18XM-12EC / H22.00XM / H22XM-12EC / H23XM-12EC 2000-2017 L6 6.7L (Cummins QSB 6.7), H190HD2 / H210-48HD / H210HD2 / H230-48HD / H250-48HD / H300HD2 / H300HD2S / H360-36HD / H360-48HD / HD230HD2 / HD230HD2S / HD250HD2 2019-2025 L4 4.5L / L6 6.7L (Cummins QSB 4.5 / QSB 6.7), H210HD / H230HD / H250HD / H280HD / H360HD2 / H400HD-EC5 / H450HD / H450HDS / H550HD / H550HDS / H620HD / H650HD / H650HDS / H6XM-12EC3 / H700HD / H7XM-12EC4 / H8-16 2019-2025 L6 6.7L (Cummins QSB 6.7)
-
Hyundai Forklifts, Wheel Loaders & Excavators: 110D-9 / 130D-9 / 160D-9 / 250D-9 2019-2022 L6 6.7L (Cummins QSB 6.7), HL730-7A 2008-2014 L4 4.5L (Cummins QSB 4.5), HL740-7A / HL740-9 / HL757-7A / HL757-9 / HL760-7A / HL760-9 / HL940 / HL955 / HL960 / HW140 / HW210 / HX220L / HX235LCR / HX260L / HX300L / R140W-9 / R140W-9A / R160W-9A / R170W-9A / R180W-9A / R210LC-9 / R225LC-9 / R235LCR-9 / R250LC-9 / R265LC-9 / R290LC-9 / R305LC-9 2007-2022 L6 6.7L (Cummins QSB 6.7)
-
JCB Loaders, Trucks & Rollers: 414 / 414S / 416 / 418 / 426 / 427 / 434 / 434S / 435 / 436 / 436E / 437 / 714 / 718 / 722 / VM166 / VM200 1995-2019 (Cummins 5.9L 6BTAA5.9 / 6.7L QSB 6.7), 446 / 456 / 467 2001-2019 (Cummins 5.9L 6BTAA5.9 / 8.3L 6CTAA8.3 / QSC8.3 / 10.8L QSM11)
-
John Deere Harvesters: 7950 / 8800 2010-2018 L6 19.0L (Cummins QSK19)
-
Kawasaki Wheel Loaders: 60Z V-2 2010-2022 L4 4.5L (Cummins QSB 4.5), 70TM V2 / 70TM7 / 70Z V2 / 70Z7 / 80Z7 / 85Z7 2010-2022 L6 6.7L (Cummins QSB 6.7), 80Z V2 / 80ZIV2 / 80ZIV2 HL / 85ZIV2 / 85ZV / 90Z7 / 90ZV / 90ZV2 1997-2022 (Cummins 8.3L QSC8.3 / 8.9L QSL9 / 10.8L QSM11)
-
Linde Forklifts: H100 / H100/600 / H100/1200 / H120 / H120/600 / H120/1200 / H140 / H140/600 / H140/1200 / H150 / H150/600 / H160 / H160/600 / H160/1200 / H180 / H180/600 2007-2020 L6 6.7L (Cummins QSB 6.7)
-
Prentice Loaders & Forestry Equipment: 2210 / 2280 / 2384B / 2410 / 2414 / 2430 / 2432 / 2470 / 2570 / 2664 / 2670 / 2764 / 2864 / 950B-DA / 950B-SA 2002-2019 L6 6.7L (Cummins QSB 6.7)
-
Terex Cranes, Loaders & Equipment: RT230 / RT230 XL / RT230-1 / RT230-1XL / RT345-1XL 2007-2018 L4 4.5L (Cummins QSB 4.5), HC50 / HC60 / HC80 / HC100 / HC110 / HC110-1 / HC120 / RT100 / RT335-1 / RT435-1XL / RT555 / RT555-1 / RT665 / RT775 / TL210 / TL310 2001-2018 L6 6.7L (Cummins QSB 6.7)
-
Volvo Rollers: DD138HF / DD138HFA / DD140 2008-2014 L6 6.7L (Cummins QSB 6.7)
-
Yale Forklifts: GP190DC / GP210DC / GP230DC / GP250DC / GP280DC 2016-2024 L4 4.5L / L6 6.7L (Cummins QSB 4.5 / QSB 6.7), GDP80DB / GDP90DB / GDP100DB / GDP120DB / GDP130EB / GDP140EB / GDP160EB / GDP230DC / GDP280DC / GDP300DC / GDP330DC / GDP360DC / GP300EC / GP330EC / GP360EC 2003-2024 L6 6.7L (Cummins QSB 6.7)
