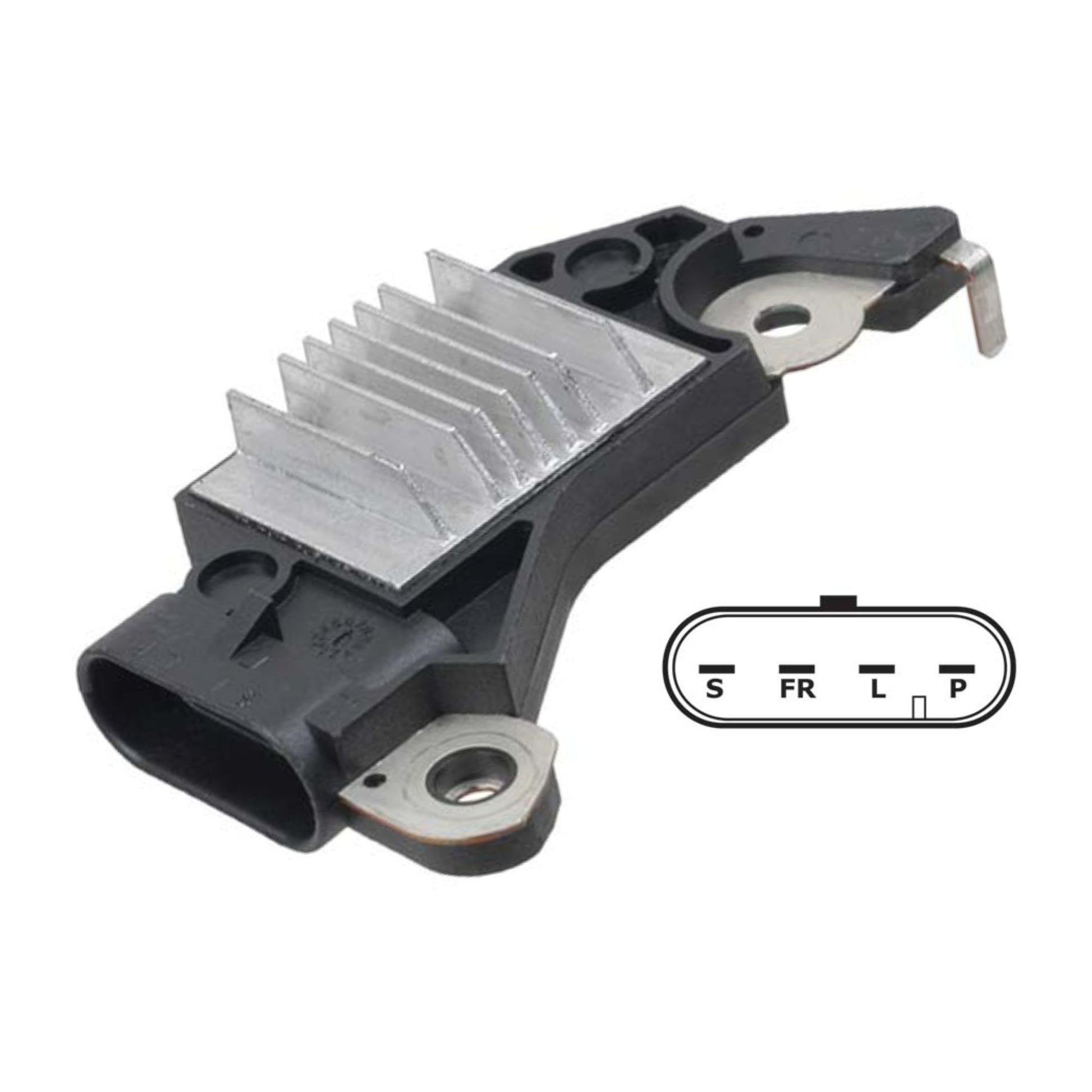

Voltage Regulator, 4 Terminal P-L-F-S, 12 Volt for GM Delco - 80406292, 80406296 - D705XHD

Voltage Regulator - Specifications: 12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Voltage Set Point, 10 second LRC, With temperature compensation. Used on vehicles w/ digital instrument cluster., OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection, Welded construction - no solder joints for hi-temperature reliability & increased field life //  Replaces: Delco 19009705, 19009729, 705, Delco ASVR 19009729, 19009763, 9729, Other: 80406292, 80406296, D08-42, T763, 116-045 - D705, D705XHD

Alternator Manufacturer and Factory #s
Delco 10463605, 10463638, 10463639, 10463838, 10463839, 10463840, 10463842, 10463843, 10464069, 10464071, 10464072, 10464084, 10464085, 10464086, 10464087, 10464097, 10464401, 10464409, 10464410, 10464411, 10464418, 10464419, 10464420, 10464423, 10464431, 10464432, 10464433, 10480074, 10480076, 10480079, 10480184, 10480191, 10480207, 10480217, 10480218, 10480250, 10480251, 10480252, 10480254, 10480259, 10480260, 10480289, 10480299, 10480301, 10480307, 10480320, 10480321, 10480322, 10480332, 10480351, 10480353, 10480354, 10480361, 10480362, 15768315, 19244782, 19244786, 19244787, 19244794; GM 10463605, 10463638, 10463639, 10463839, 10463840, 10463842, 10464069, 10464071, 10464072, 10464084, 10464085, 10464086, 10464087, 10464097, 10464409, 10464411, 10464418, 10464419, 10464420, 10464423, 10464431, 10464432, 10464433, 10464458, 19244788; Isuzu 8104640840, 8104640850; Original Reference Number 10480351Y // 8190-11, 8197-7, 8199-2, 8222-3, 8223-7, 8224-11, 8228-7, 8229-7, 8230-7, 8231-5, 8233-7, 8240-7, 8275-2, 8276-7, 8297
