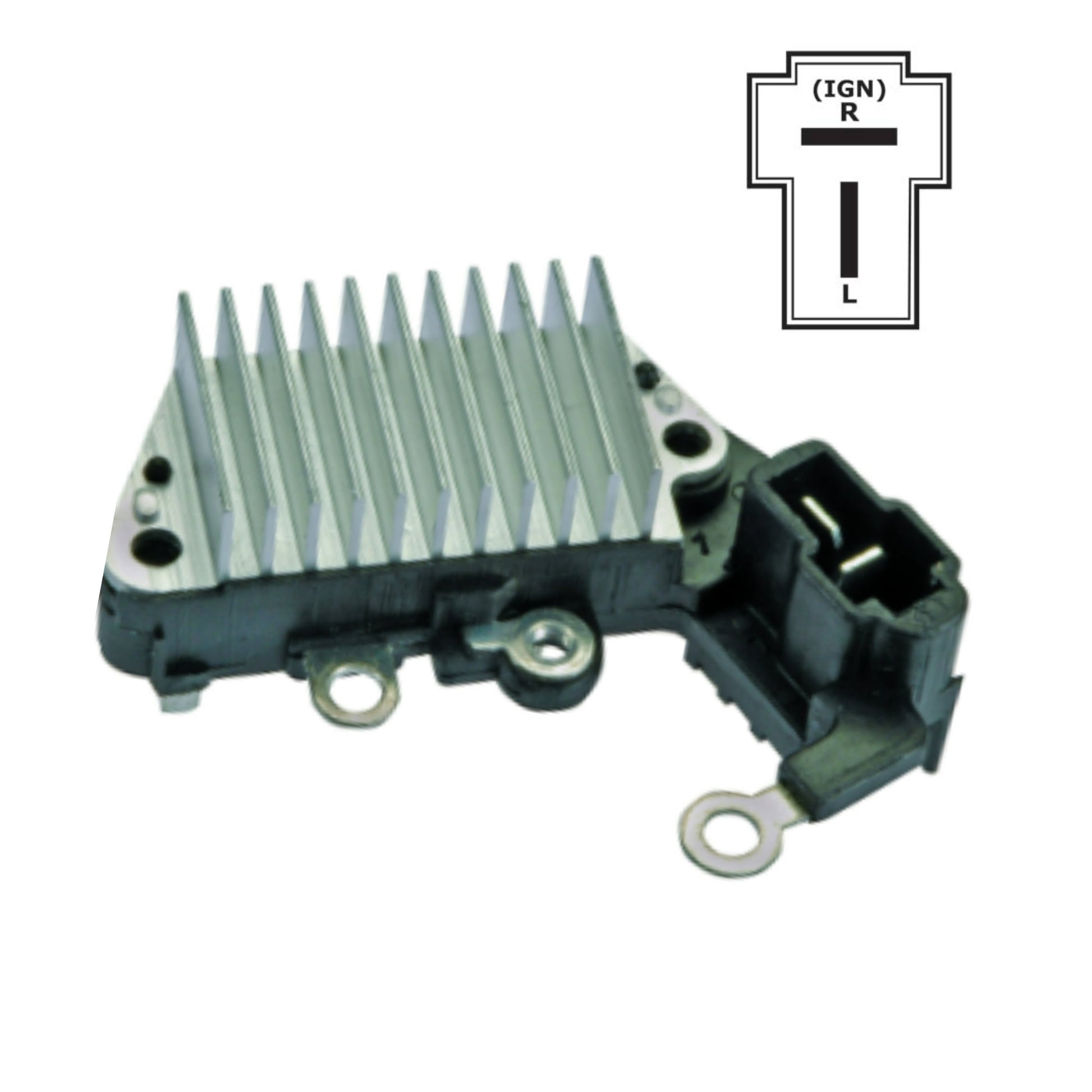

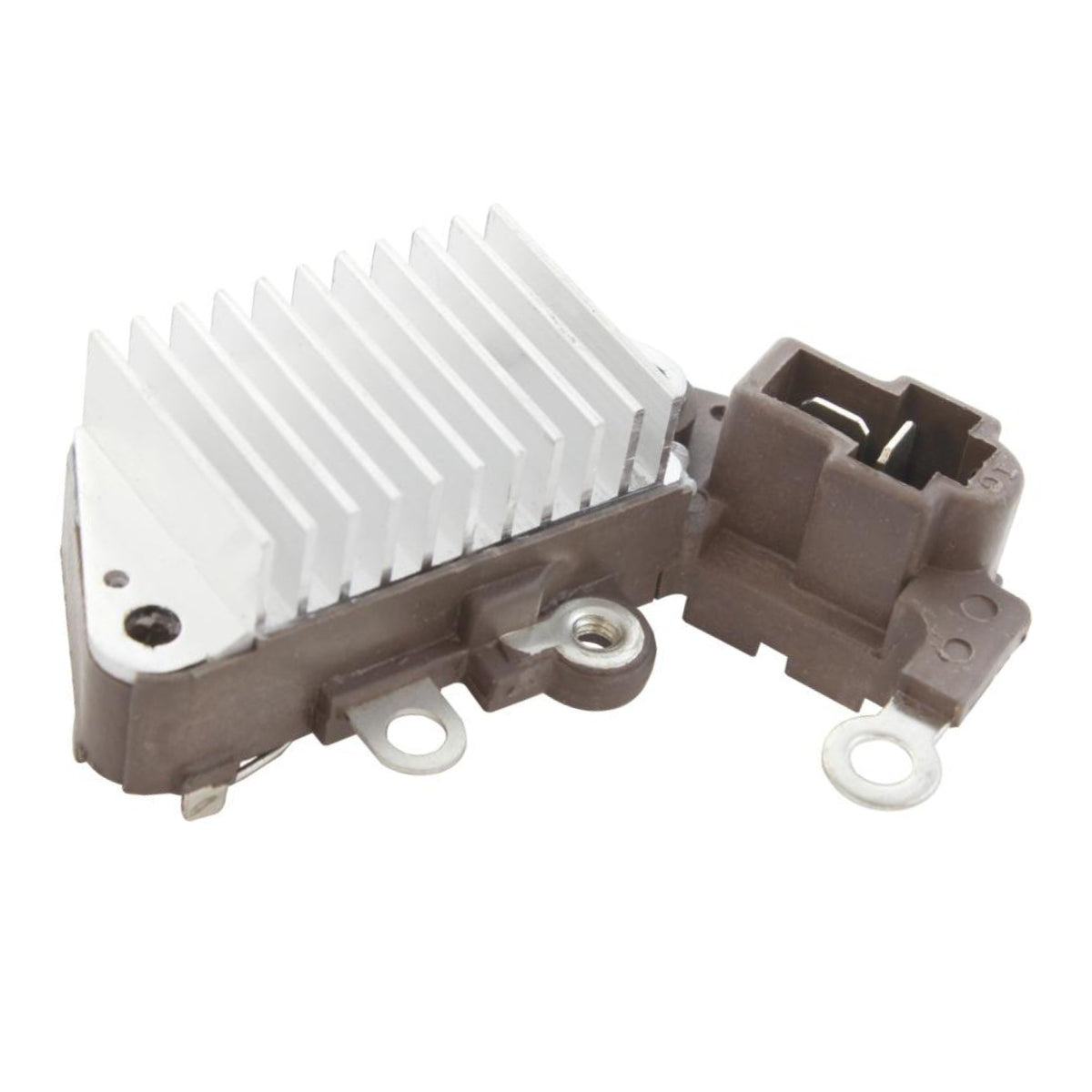

Voltage Regulator for Denso, IG-L Terminals, 12 Volt - IN254

Need to rebuild or repair your vehicle's alternator? This premium replacement component is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

📐 Component-Specific Technical Data

• Technical Specifications: Voltage Regulator, 12 Volt System, A-Circuit, Low Side Drive Regulator, IG-L Terminals, 14.5 Voltage Set Point, for Denso IR/IF Alternators, 57.5mm Mounting Length, Standard Lamp Function - No Output (for Self-Exciting version use IN254SE), Field Rating 5 Amps, Over Voltage Lamp Function
• Replaces OEM: Daihatsu 27700-87207-000, 27700-87209-000, 27700-87703-000; Denso 126000-0600, 126000-0760, 126000-1160; GM 94167410; Iseki 6281-271-001-0; Ishikawajima 185446234; Kubota 15881-64600, 15881-64601; Marelli 940038093; Mitsubishi Motors MD604589, MD604751; Suzuki 32500-85250, 32500-85251; Toyota 27700-78301, 27700-96301
• Aftermarket Crossovers: 216-010, KO-162, 230-52063, 230-52189, T7254, W085-75, IN254

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso / CHCD OEM: 021080-0780, 100211-1610, 100211-1611, 100211-1630, 100211-1633, 100211-1640, 100211-1650, 100211-1660, 100211-167, 100211-1670, 100211-1671, 100211-1672, 100211-1673, 100211-1680, 100211-1681, 100211-4080, 100211-4120, 100211-4180, 100211-4200, 100211-4201, 100211-4210, 100211-4220, 100211-4390, 100211-4440, 100211-4441, 100211-4442, 100211-4490, 100211-452, 100211-4520, 100211-4521, 100211-4522, 100211-4523, 100211-4530, 100211-4531, 100211-4610, 100211-4611, 100211-4612, 100211-4613, 100211-4620, 100211-4621, 100211-4630, 100211-4631, 100211-4640, 100211-4650, 100211-4660, 100211-4670, 100211-4680, 100211-4690, 100211-4700, 100211-4701, 100211-4702, 100211-4703, 100211-4720, 100211-474, 100211-4740, 100211-4741, 100211-4742, 100211-4743, 100211-4770, 100211-4771, 100211-4774, 100211-6640, 100211-6660, 100211-6730, 100211-6750, 100211-6780, 100211-6790, 100211-6800, 100211-6801, 100211-6802, 100211-6803, 100211-6804, 100211-6880, 100211-6881, 100211-6884, 100211-6890, 100211-6900, 100211-6920, 100211-9200, 100211-9210, 100211-9230, 101211-1060, 101211-1070, 101211-1071, 101211-1090, 101211-1120, 101211-1200, 101211-1230, 101211-1231, 101211-1232, 101211-1320, 101211-1570, 101211-167, 101211-1673, 101211-1750, 101211-1780, 101211-2180, 101211-2200, 101211-2201, 101211-2480, 101211-2490, 101211-2590, 101211-2591, 101211-2730, 101211-2731, 101211-2750, 101211-2751, 101211-284, 101211-2840, 101211-2841, 101211-2850, 101211-2851, 101211-2852, 101211-2853, 101211-2880, 101211-3170, 101211-3720, 101211-3721, 101211-3722, 101211-3723, 102211-7661, 18504-6430; CHCD CLA10103, CLA10303, CLA10704, CLA10905, CLA11004, CLA11204, CLA11306, CLA12304, CLA12504, CLA12604, CLA13004, CLA13104, CLA13704, CLA14604, CLA17004, CLA17304, JFZ1427
• Kubota / John Deere / Agricultural & Industrial OEM: Kubota 15881-64200, 15881-64201, 16231-24011, 16231-64010, 16231-64011, 16231-64012, 16231-64013, 16231-64014, 16231-64015, 16241-64010, 16241-64011, 16241-64012, 16241-64013, 16241-64014, 16241-64015, 16427-64010, 16427-64011, 16427-64012, 16427-64013, 16427-64014, 16427-64015, 16451-64011, 16495-64010, 16495-64011, 16495-64012, 16495-64013, 16541-64011, 16615-64011, 16615-64012, 16615-64013, 16615-64014, 16615-64015, 16705-64011, 16705-64012, 16771-64010, 16771-64012, 17356-64010, 17356-64011, 17356-64012, 17356-64013, 17356-64014, 17356-64015, 17369-64010, 17369-64011, 1758064010, 1J022-64010, 34070-75600, 34070-75601, 34070-75602, 34070-75603, 3A611-74010, 3A611-74012, 3A611-74013, 3A611-74014, 66436-64010, 66436-64011, 66436-64012, 66436-64013, 66436-64014, 66436-64015, PH101-81401, TA043-74011; John Deere AM877737, AM877740, AM880701, AM884637, MG235703, MIA880601, MIA884637, MIA884638, MIU805918, RE42778, RE46006, RE72915, RE729151, SE501379, SE501824, TY25239, TY6760; Case 125564A1, 133745A1; Caterpillar 183-4029; Clark 5234033, C07639; Genie P114682GT; Hyster 1599869, 3049394; Iseki 6281-200-004-0B, 6281-200-008-1, 6281-200-021-0; Ishikawajima 18504-6220, 18504-6430; JCB 02/631200; Komatsu 600-821-2350; Lombardini 1157326; Massey Ferguson 6281-200-020-0; New Holland SBA18504-6220
• Automotive, Powersports & Other Equipment OEM: Arctco / Arctic Cat 3006-261, 3206-303; Briggs & Stratton 825084; Daihatsu 1758064012, 27060-58210, 27060-87103, 27060-87201, 27060-87201-000, 27060-87211, 27060-87212, 27060-87212-000, 27060-87501, 27060-87502-000, 27060-87601, 27060-87602, 27060-87701-000, 27060-87704, 27060-87705, 27060-87707, 27060-87707-000, 27060-87709, 27060-87709-000, 27060-87801-000, 27060-97202, 27060-97203, 27060-97282, 2706087601000, 2706087602000, 2706097202000, 2706097203000, 2706097282000; Honda 31100-MAJ-G41, 31100-MCS-003, 31100-PZ3-0130, CGD56; Kawasaki 21001-1129, 21001-1176; Kohler 17580-64010; Mitsubishi Motors MD166662; Polaris 3070341; Prestolite 20140103; Subaru 23700-KA300, 23700-KA301, 23700-KA310, 23700-KA311; Suzuki 31400-03F00, 31400-03F01, 31400-03F02, 31400-03F03, 31400-03F40, 31400-76G00
• Lester References: 11559, 11691, 12080, 12179, 12180SE, 12180SEC, 12181, 12186, 12188, 12189, 12190, 12196, 12197, 12198, 12199, 12200, 12204, 12206, 12207, 12270, 12348, 12351, 12505, 12506, 12511, 12530, 12531, 12656, 12659, 12773, 12855, 12877, 13127, 20543, 21631, 21881, 22373, 22456, 22925, 23372

🚘 Vehicle Application Details

• Agricultural & Industrial Equipment: Fits various Case, Caterpillar, Clark, Genie, Hyster, Iseki, Ishikawajima, JCB, John Deere, Komatsu, Kubota, Lombardini, Massey Ferguson, and New Holland tractors, excavators, forklifts, and utility machinery equipped with the Denso alternators listed above.
• Powersports, Marine & Lawn Equipment: Fits select Arctic Cat, Honda Motorcycle, Kawasaki, Polaris, and Suzuki ATV/UTV/Motorcycle applications along with Briggs & Stratton and Kohler power equipment.
• Automotive Applications: Fits select Daihatsu, Mitsubishi, Subaru, Suzuki, and Toyota vehicles equipped with Denso IR/IF series units.
