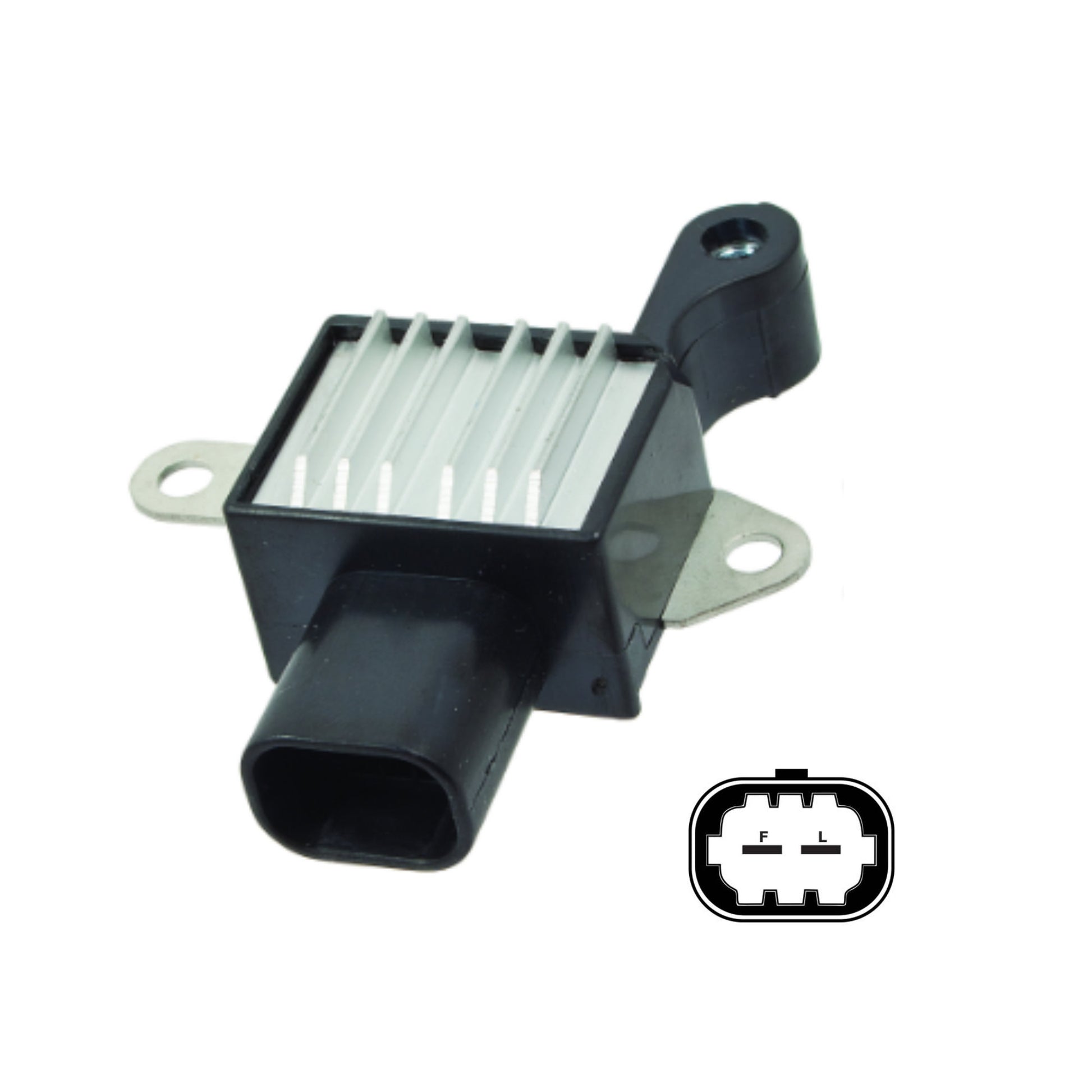

Voltage Regulator for GM RVC System, Terminal L-F - IN6324

Need to rebuild or repair your vehicle's alternator? This premium replacement regulator is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

📐 Component-Specific Technical Data

• Technical Specifications: Voltage Regulator, 12 Volt, B-Circuit, L(RC)-F(FR) Terminals, 13.8 Default Voltage Point, For GM with Denso, Voltage Set controlled by vehicle RVC system, L(RC) terminal is computer RVC(PWM) connection (not Lamp; Regulator damage if tested as Lamp connection), System Voltage 12V
• Replaces OEM: Denso 126600-3060, 126600-3240, 126600-3440, 4310, GC3 3240, GC3A 4310, GC33060, GC33240, GC33440, T7324
• Aftermarket Crossovers: 230-52161, 230-52169, AND6158, 8090-4475, 80904475, VRH2005-101, VRH5-3240, ND-889, 216-077, IN6324

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Denso OEM: 104210-1903, 104210-1960, 104210-1961, 104210-1962, 104210-1963, 104210-1964, 104210-200, 104210-2000, 104210-2001, 104210-3260, 104210-3261, 104210-3320, 104210-4220, 104210-4330, 104210-4340, 104210-4350, 104210-4360, 104210-4370, 104210-4420, 104210-4421, 104210-4430, 104210-4432, 104210-5390, 104210-540, 104210-5400, 104210-5990, 104210-6000, 104210-6001, 104210-6010, 104210-6110, 104210-6160, 104210-6310, 104210-6311, 104210-6312, 104210-6313, 104210-6850, 104210-6851, 104210-6860, 104210-6870, 104211-3590, 104211-8170, 104211-8171, 104211-8172, 104211-8340, 104211-8360, 104211-8361, 104211-8362, 104211-8903, 104211-9510, MS1042113590, TN104210-1903, TN104210-1960, TN104210-1963, TN104210-1964, TN104210-2001, TN104210-6311, TN104211-8361, TN104211-8362, TN104211-8903, TN104211-9510
• GM OEM: 10355395, 10396863, 13529303, 13529304, 13555110, 13585664, 13592809, 13592810, 13592811, 15136252, 15139480, 15817893, 15868747, 19306449, 19343531, 19433414, 20821397, 20838975, 20843302, 22737105, 22747896, 22868687, 22892568, 22892569, 22949466, 22949467, 22949468, 22996927, 22996928, 23105717, 23106528, 23279588, 23480514, 23480515, 25709327, 25751145, 25751146, 25755840, 25756440, 25756441, 25764632, 25815839, 25925447, 84009358, 84093307, 84331091
• Opel / Suzuki / Lester References: Opel 1202373; Suzuki 31400-78J10; Lester 11038, 11044, 11046, 11110, 11140, 11178, 11179, 11180, 11181, 11248, 11251, 11252, 11369, 11508, 11513, 11681, 11682, 11785, 11794, 11795, 14009, 14019, 14020, 21218, 44015

🚘 Vehicle Application Details

• Buick Models: Allure (2008–2009) V8 5.3L; Enclave (2008–2017) V6 3.6L; LaCrosse (2008–2009) V8 5.3L; Lucerne (2006–2008) V6 3.8L, (2006–2011) V8 4.6L; Regal (2014–2017) L4 2.0L; Regal Sportback (2018–2019) L4 2.0L; Regal TourX (2018–2019) L4 2.0L
• Cadillac Models: ATS (2013–2019) L4 2.0L, (2013–2016) L4 2.5L, (2013) V6 3.6L; CTS (2005–2007) V6 2.8L, (2010–2014) V6 3.0L, (2004–2014) V6 3.6L, (2014–2019) L4 2.0L, (2009–2018) V8 6.2L; DTS (2006–2011) V8 4.6L; Escalade / Escalade ESV (2015–2019) V8 6.2L; SRX (2004–2009) V6 3.6L, (2004–2009) V8 4.6L; STS (2005–2011) V6 3.6L, (2006–2009) V8 4.4L, (2007–2010) V8 4.6L; XTS (2013–2019) V6 3.6L
• Chevrolet Passenger Cars & SUVs: Blazer (2019–2021) L4 2.5L; Camaro (2016–2023) L4 2.0L, (2016–2018) V8 6.2L; Cobalt (2005–2007) L4 2.2L, (2006–2007) L4 2.4L; Corvette (2014–2019) V8 6.2L; HHR (2006–2007) L4 2.2L/2.4L; Impala / Impala Limited (2006–2009) V8 5.3L, (2013–2016) V6 3.6L, (2014–2019) L4 2.5L; Malibu / Malibu Limited (2013–2019) L4 2.0L/2.5L; Monte Carlo (2006–2007) V8 5.3L; Suburban (2015–2018) V8 5.3L; Tahoe (2015–2019) V8 5.3L; Traverse (2009–2017) V6 3.6L, (2018–2019) L4 2.0L
• Chevrolet Trucks, Vans & Commercial: Colorado (2015–2019) L4 2.5L; Express 2500 / 3500 / 4500 (2016–2020) V8 4.8L/6.0L; LCF 4500 (2016–2020) V8 6.0L; Silverado 1500 (2014–2018) V6 4.3L, V8 5.3L/6.2L; Silverado 2500 HD / 3500 HD (2015–2016) V8 6.0L/6.6L
• GMC Models: Acadia / Acadia Limited (2007–2017) V6 3.6L, (2017–2021) L4 2.5L; Canyon (2015–2019) L4 2.5L; Savana 2500 / 3500 / 4500 (2016) V8 4.8L/6.0L; Sierra 1500 (2014–2018) V6 4.3L, V8 5.3L/6.2L; Sierra 2500 HD / 3500 HD (2015–2016) V8 6.0L/6.6L; Yukon / Yukon XL (2015–2019) V8 5.3L/6.2L
• Commercial Heavy Duty, Pontiac, Saturn & Suzuki Models: Freightliner B2, MT45, MT55, S2G, XB Line (2014–2023) V8 6.0L/8.0L; Mitsubishi Fuso Canter FE160 (2019–2021) V8 6.0L; Pontiac G5 / Pursuit (2005–2007) L4 2.2L/2.4L, Grand Prix (2005–2008) V8 5.3L; Saturn Outlook (2007–2010) V6 3.6L; Suzuki XL-7 (2007–2009) V6 3.6L

💖 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
