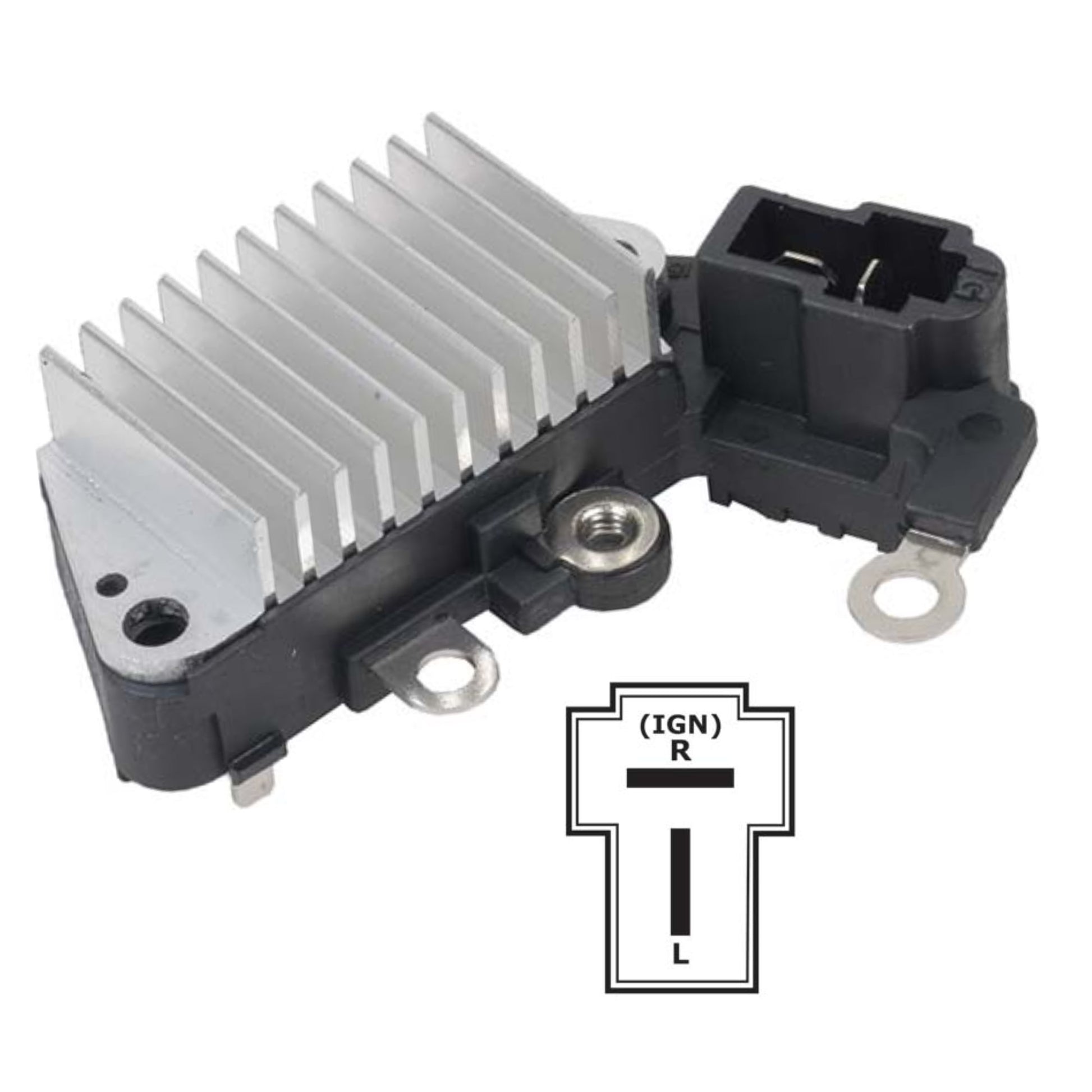

Voltage Regulator for Kubota, IG-L Terminal, 12 Volt w 14.6 Voltage Set Point - IN255

Need to rebuild or repair your vehicle's alternator? This premium replacement regulator is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

📐 Component-Specific Technical Data

• Technical Specifications: Voltage Regulator, A-Circuit, IG-L, L Terminal Drives Choke, 14.6 Volt Set Point, 57.5mm Center to Center Mounting Holes
• Replaces OEM: Daihatsu Motor Co 27700-87209-000; Denso 126000-0970, 126000-0971, 126000-0990, 126000-1380, 126000-278, 126000-2780, 126000-2781; Iseki 6281-271-002-0; Mitsubishi Motors MD604751
• Aftermarket Crossovers: 230-52025, VRH2005-15, MFVR01890, W085-121, 216-008, GNR-N002, VR0570, 80904444, 80904405, IN255

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• CHCD / Daihatsu / Denso OEM: CHCD CLA10706, CLA10904, CLA11406, CLA11804, CLA12404, CLA13506, CLA15306; Daihatsu 27060-87221-000; Denso 100211-1660, 100211-1661, 100211-1662, 100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004, 100211-4005, 100211-4006, 100211-4670, 100211-4680, 101211-1180, 101211-1183, 101211-1360, 101211-1361, 101211-1362, 101211-1363, 101211-2040, 101211-2042, 101211-3350, 101211-3780, 101211-3781, 101211-8520, 101211-8521, 101211-8522, 101211-8523, 101211-8770, 101211-8771, 101211-8772, 101211-8773, 101211-8950, 101211-8951, 101211-8952, 101211-8953, 102211-8523, DAN2038
• Kubota OEM: 1900-0522, 3A011-74010, 3A011-74011, 3A011-74012, 3A011-74013, 3A011-74014, 3A011-74015, 3A611-74012, 3A611-74013, 3A611-74014, EG673-64200, EG673-64201, EG673-64202, EG673-64203, K7561-61910, K7561-61911, K7561-61912, K7561-61913, K7561-61914, K7561-61920, T1060-15600, T1060-15603, T1060-15680, T1060-15681, T1060-15682, T1060-15683, T1060-15684, T1065-15682, T1065-15683
• Toyota / Industrial OEM: Hyster 3049491; Iseki 6281-200-008-1, 6281-200-015-0; KHD 0441-2972; Towmotor 213534; Toyota 27060-78001, 27060-78001-71, 27060-78301, 27060-78301-71; Valeo 436498; Yale 9112746-00
• Other References: 9212259; Lester 11632, 11903, 12180, 12182, 12338, 12339, 12534, 12650, 12659, 22581

🚘 Vehicle Application Details

• Kubota Tractors & Utility Equipment: B2650, B3000, B3030, B3350, F3990, L2600, L2800, L3000, L3130, L3240, L3301, L3302, L3400, L3430, L3540, L3560, L3830, L39, L3901, L3902, L3940, L4060, L4240, L4300, L4330, L4400, L45, L4630, L4701, L4740, L4760, L5030, L5040, L5060, L5240, L5460, L5740, LX2610, LX3310, M4700, M4800, M4900, M5140, M5400, M5700, M59, MX4700, MX4800, MX5000, MX5400, MX5800, MX6000, RTV-X Series (X900, X1120, X1140), RTV500, RTV520, RTV900, RTV1140, STV32, STV36, STV40, ZD1511 (Various Years & Engines)
• Kubota Excavators: KX91-3, KX121-3, KX161-3 (2002–2018)
• Doosan & Ingersoll Rand Equipment: Doosan Forklifts D15S-5, D18S-5, D20SC-5 (2010–2018) L4 2.4L Kubota V2403; Ingersoll Rand Rollers DD-28HF, DD-38HF (2000–2012) L4 2.2L Kubota V2203-M
• Terex & Volvo Construction Equipment: Terex Dumpers & Rollers TA2, TA3, TV1000, TV1200, TV1300, TV1400 Series (2010–2017); Volvo Rollers & Compactors CR24, CR30, DD24, DD28HF, DD29, DD30, DD31HF, DD34HF, DD38HF, SD25 Series (2007–2018) L4 2.2L Kubota V2203-M
• Toyota Forklifts: 3FGC-30, 5FD-10 through 5FD-30, 5FDL Series, 5FG-10 through 5FG-45, 5FGL Series, FG-10 through FG-30 (1978–2007) with 1Z, 2J, 3F, 4P, 4Y, 5P, V1502, VT1502 Engines
• Other Industrial, Agricultural & Lawn Equipment: Husqvarna HUV 4421 DXL (2006–2010); Iseki TG5390 (2005–2015); Kawasaki Wheel Loader 30Z V2 (2017–2021); Massey Ferguson MF-1547 (2005–2015); Thomas Equipment T95 (1994–2007)
