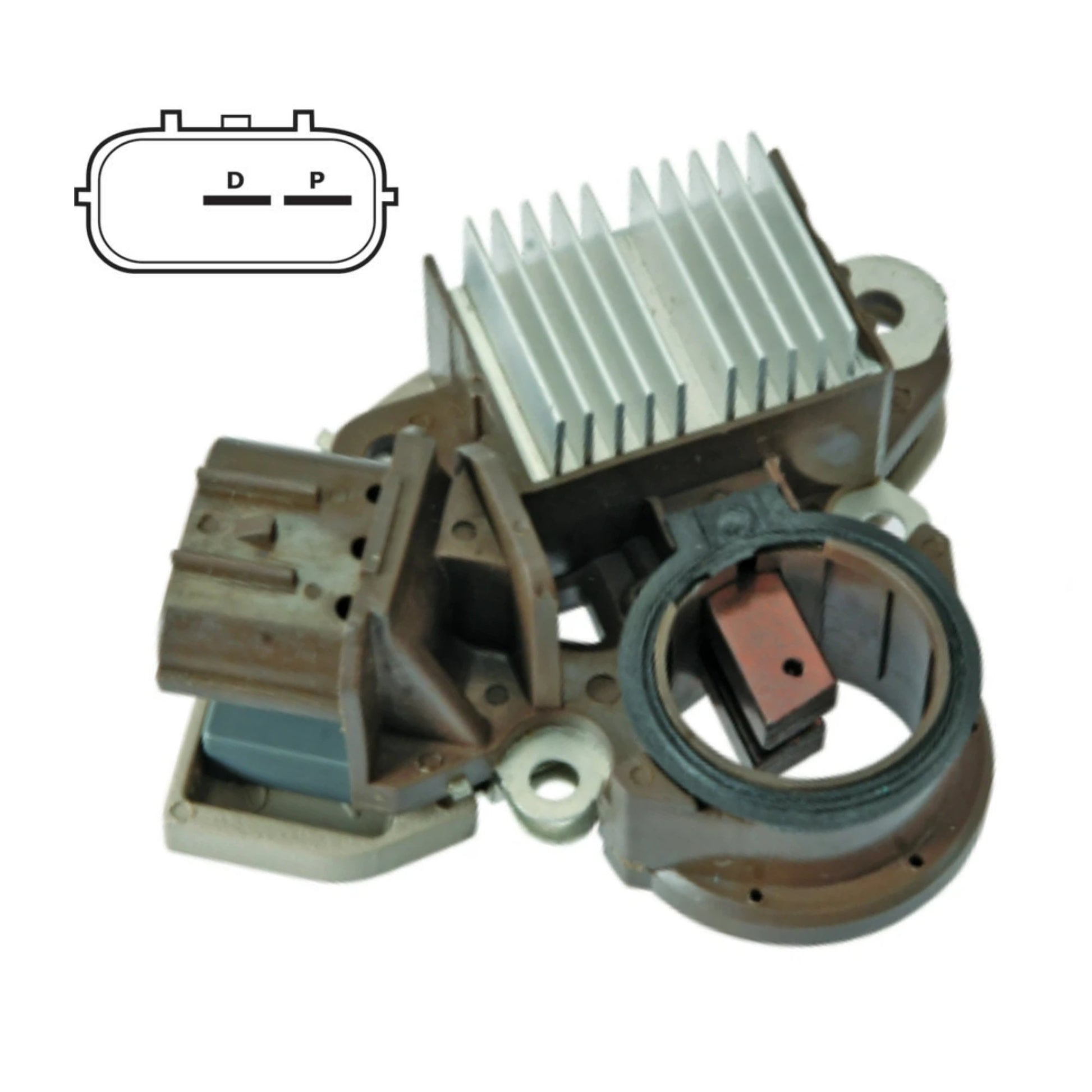

Voltage Regulator with Brushes 3 Pin N/C-D-P for Mazda Replacing A866X50572 - 80033106 IM505

Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

Alternator Manufacturer and Factory #s
Mazda AJ51-18-300, AJ51-18-300A, AJ51-18-300R, AJ51-18-300R00, AJ57-18-300, AJ57-18-300A, AJ57-18-300B, AJ57-18-300R00, L33G-18-300, L33G-18-300A, L33G-18-300R-00, L33G-18-300R0A, L3M6-18-300A, L3M6-18-300B, L3M6-18-300C, L3M6-18-300R-0A, L3P9, L3P9-18-300A, L3P9-18-300B, L3P9-18-300C, L3P9-18-300R, L3P9-18-300R-0C, LF8J, LF8J-18-300, LF8J-18-300R00, LFB6-18-300, P31H-18-300B, P31H-18-300R00, P31H-B, P51X-18-300B, P51X-B, P51X18300R00, P53N-18-300B, P53N-B, PE07-18-300, R2AA-18-300A, R2AA-18-300B; Mitsubishi A002TJ0391, A002TJ0391A, A002TJ0391B, A002TJ0391CMU, A002TJ0681, A002TJ0791, A002TJ1591, A003TJ0191, A003TJ0291, A003TJ1091, A003TJ1181, A003TJ1191, A003TJ1191A, A005TJ0591, A005TJ0591ZT, A005TJ0591ZX, A2TJ0681A; Original Reference Number AL4456, L3M6-18-300R, L3P9-D, Lester 11006, 11007, 11168, 11169, 11330, 11342, 11398, 11635, 20288, 20394
