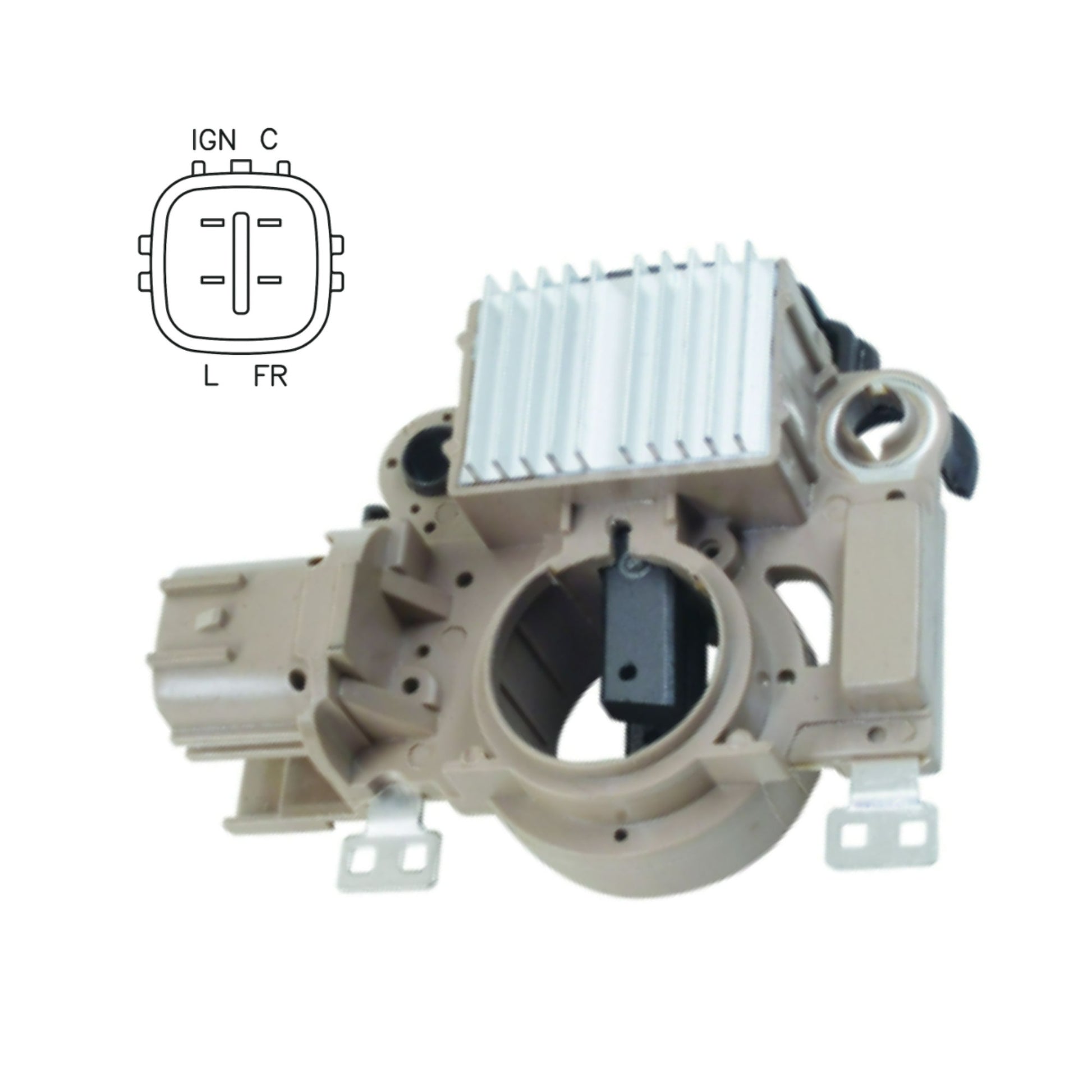

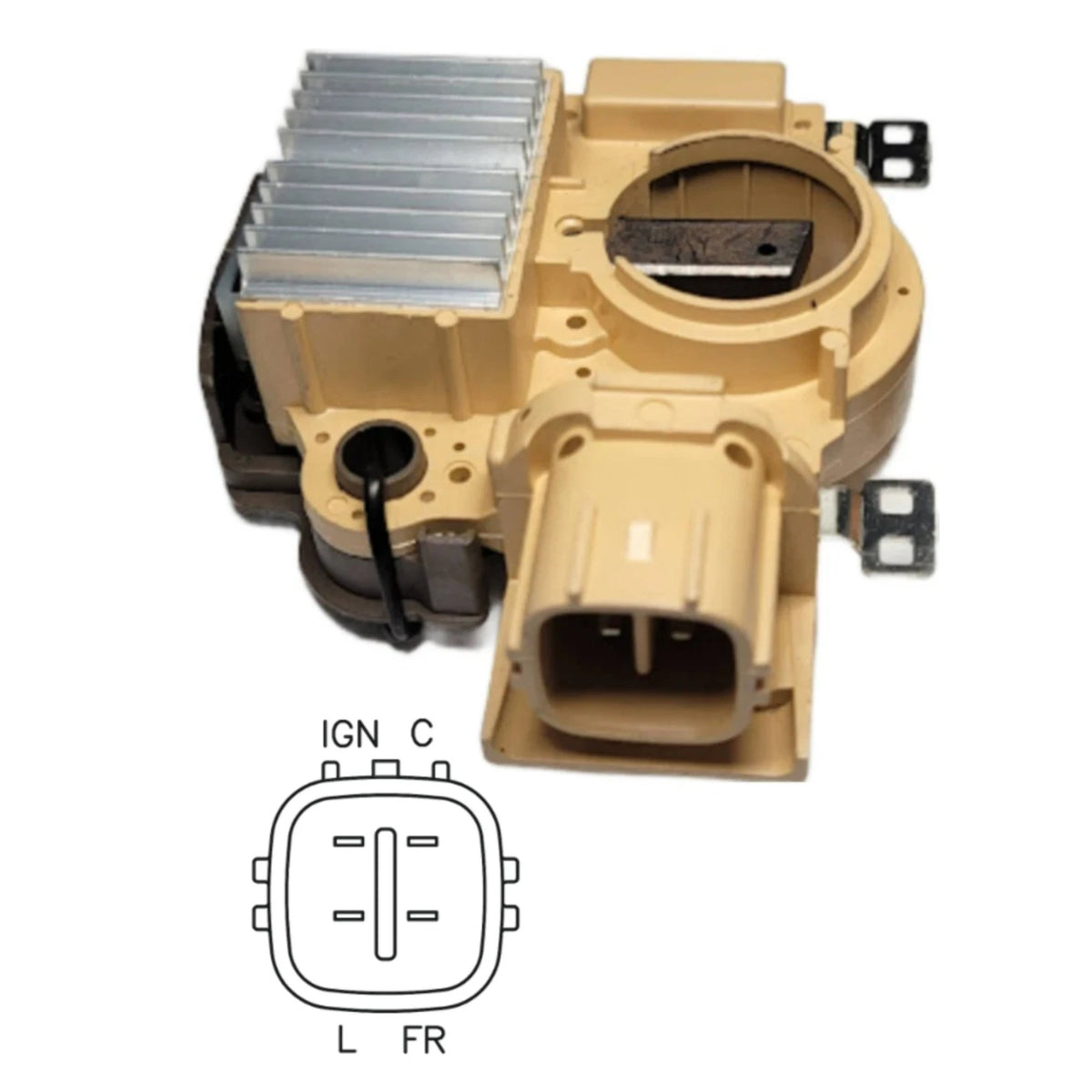

Voltage Regulator with Brushes Acura Honda Can-Am Ref# 4954726D, A866X48782 - IM851

Need to rebuild or repair your vehicle's alternator? This premium replacement voltage regulator is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

📐 Component-Specific Technical Data

• Technical Specifications: Voltage Regulator with Brushes, 12 Volt, A-Circuit, IG-C-L-FR Terminals, 14.5 Voltage Set Point, Mitsubishi IR/IF Alternators, 24mm ID Slip Ring Cover, With capacitor, Soft start, Lamp activated, Short-circuit protection: lamp, field / System Voltage: 12
• Replaces OEM: Honda 31150-PLC-004, 31150-PLM-A01, 31150-PNC-004; Mitsubishi 487, 495, 4954726D, A866X48782
• Aftermarket Crossovers: IM851, MT-323, 196-097, 28653, GNR-M057, VRH2009-92, VRH2009-94, W085-214

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Acura OEM: 31100-PLM-C01, 31100-PLM-C02, 31100-PNC-004, 31100-PND-004, 31100-PND-004RM, AFGA51, AHGA55, AHGA61
• Bombardier / Can-Am / Sea-Doo: 420685762, 420685763
• Honda OEM: 06311-PLM-505RM, 31100-PLM-A01, 31100-PLM-A02, 31100-PLM-A02RM, 31100-PNC-004, 31100-PND-004, 31100-PND-004RM, AHGA50, AHGA55, AHGA61, AHGA64
• Kymco: 12R1538
• Mitsubishi: A002TB7591, A002TB7591ZE, A002TC0691, A002TC0691A, A002TC0691ZE, A005TA6991A, A005TA7091, A005TA7091ZC, A005TA7191, A005TA7191ZC, A2TB7591, A2TB7591ZE, A2TC0691, A2TC0691A, A2TC0691ZE, A5TA6991A, A5TA7091, A5TA7091ZC, A5TA7191, A5TA7191ZC
• Lester / PIC References: 13893, 13966

🚘 Vehicle Application Details

• Acura EL: 2001-2005 L4 1.7L
• Acura RSX: 2002-2005 L4 2.0L
• Can-Am Spyder F3 (SE6 / SM6 / S): 2015-2018 1330cc
• Can-Am Spyder RT (SE6 / SM6 / Limited / S / Special Series): 2014-2017 1330cc
• Honda Civic: 2001-2005 L4 1.7L
• Honda CR-V: 2002-2006 L4 2.4L

💕 Our Worry-Free Promise

Because automotive electrical parts are highly specific, we want you to buy with total confidence. If you tear down your alternator and realize you need a different size or configuration, don't sweat it. We offer easy, no-hassle returns and fast refunds. We are here to help your DIY build succeed!
