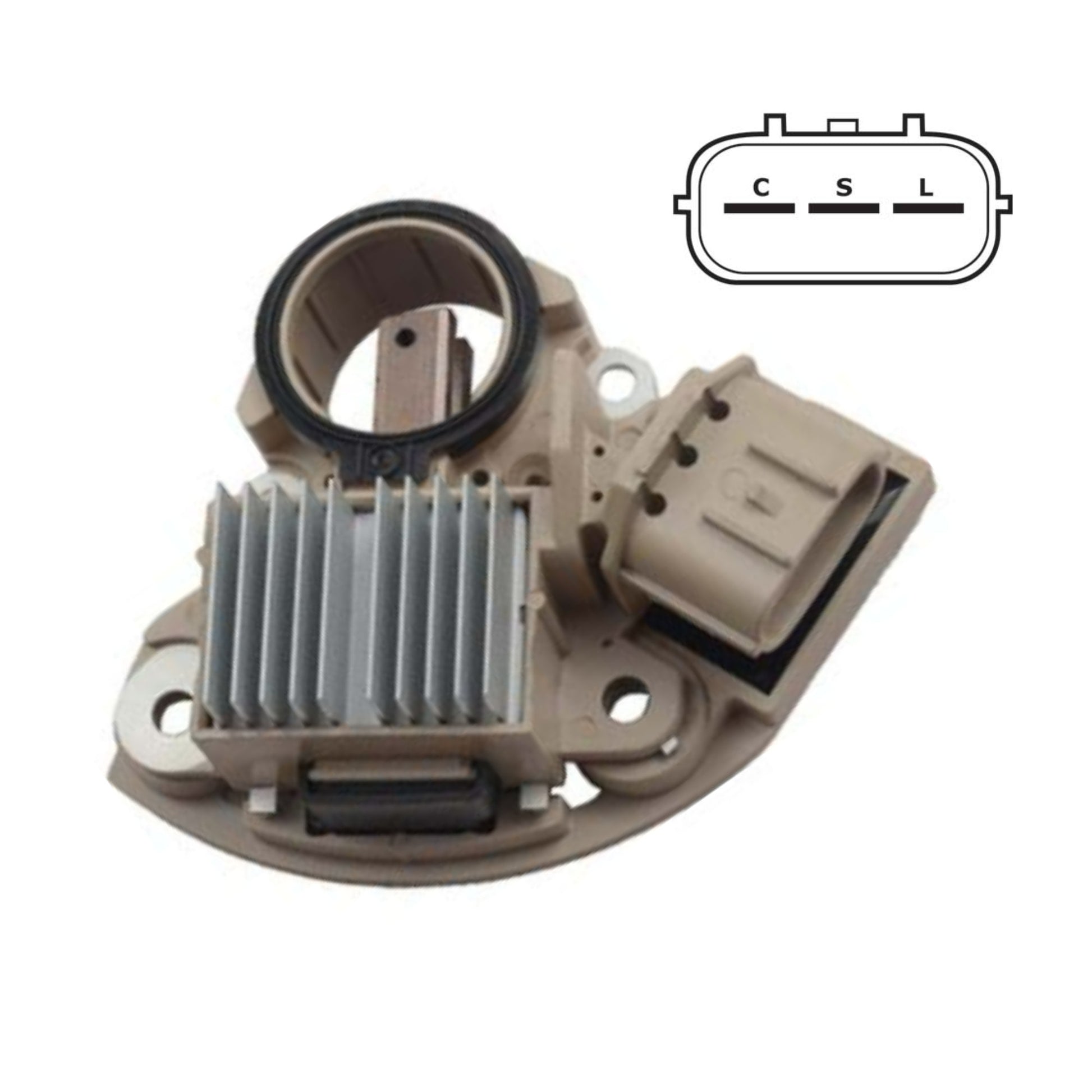

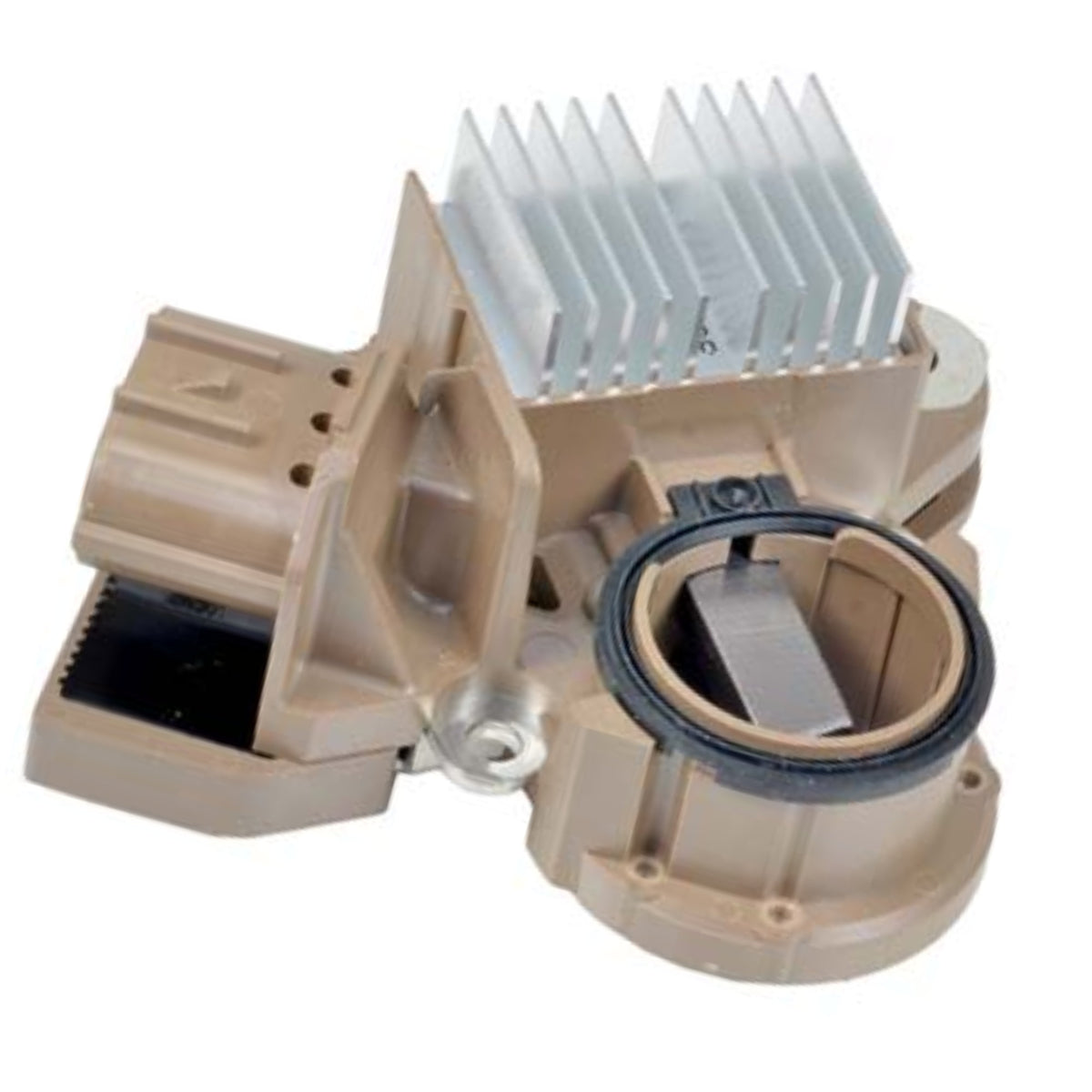

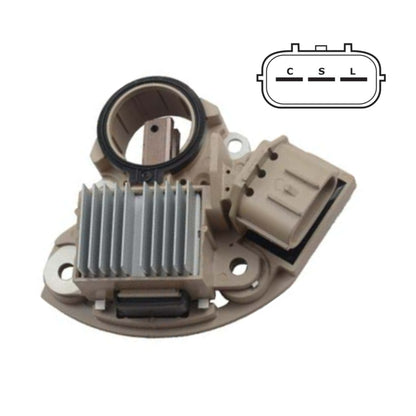

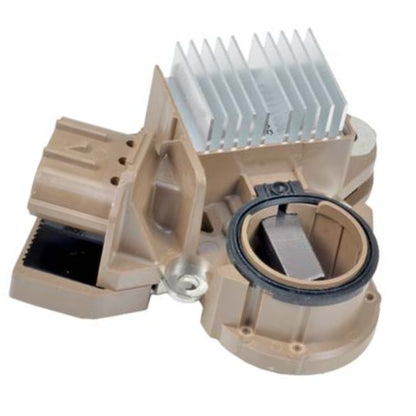

Voltage Regulator with Brushes for Nissan with Mitsubishi 3 Terminal, C-S-L IM547

Need to rebuild your vehicle's alternator? This premium rebuild component kit is engineered to meet or exceed original factory specs, ensuring a perfect fit and long-lasting charging performance.

🚘 Vehicle Application Details

• Infiniti:
  EX35 (2008-2010 V6 3.5L),
  FX35 (2009-2010 V6 3.5L),
  FX50 (2009-2013 V8 5.0L),
  G25 (2011-2012 V6 2.5L),
  G35 (2007-2008 V6 3.5L),
  G37 (2008-2010 V6 3.7L),
  M35 (2006-2010 V6 3.5L),
  M37 (2011 V6 3.7L),
  M45 (2006-2010 V8 4.5L),
  Q45 (2004-2006 V8 4.5L),
  Q50 (2014-2015 V6 3.5L / V6 3.7L),
  Q70 (2014-2019 V6 3.7L),
  Q70L (2016-2019 V6 3.7L)
• Nissan:
  350Z (2007-2009 V6 3.5L),
  370Z (2009-2010 V6 3.7L),
  Altima (2011-2018 V6 3.5L),
  Cube (2009-2014 L4 1.8L),
  March (2013-2017 L4 1.6L),
  Maxima (2011-2018 V6 3.5L),
  Micra (2015-2019 L4 1.6L),
  Murano (2009-2018 V6 3.5L),
  Quest (2011-2015 V6 3.5L),
  Versa (2012-2019 L4 1.6L),
  Versa Note (2014-2019 L4 1.6L)

🔍 Cross-Reference Alternator Assemblies (Fits These Units)

• Nissan / Infiniti OE: 23100-1AA1A, 23100-1AA1B, 23100-1FC1A, 23100-3BE1A, 23100-3BE1AR, 23100-3VDIA, 23100-EB315, 23100-EB31B, 23100-ED01A, 23100-EG010, 23100-EG910, 23100-JA11B, 23100-JA11BRE, 23100-JD21A, 23100-JK01A, 2310M-1FC1ARW, 2310M-3BE1ARW, 2310M-JA11BRW
• Mitsubishi OE: A002TJ0581, A002TJ0581ZE, A002TJ0591, A002TJ0591ZE, A002TJ1791, A003TJ0591, A003TJ0691, A003TJ0781, A003TJ1791A, A003TJ1791B, A003TJ1991, A003TJ1991A, A003TJ3691, A003TJ3691ZC, A003TJ4081ZE, A2TJ1291ZD, A2TJ0581, A2TJ0581ZE, A2TJ0591, A2TJ1291ZD, A2TJ1791, A2TJ1791ZC, A2TJ1791ZNU, A3TJ0591, A3TJ0591ZC, A3TJ0691, A3TJ0691ZC, A3TJ0781, A3TJ0781A, A3TJ1791A, A3TJ1791B, A3TJ1991, A3TJ1991A, A3TJ1991ZC, A3TJ3691, MD194470
• Lester / Industry Crossovers: 11315, 11316, 11340, 11341, 11414, 11547, 11557, 20335, 21192, 23918
• Other Crossovers: 115705, 12061023, 4262, CA2191IR

🔧 Component-Specific Technical Data

⚡ Voltage Regulator with Brushes Specs

• Technical Specifications: 12 Volt, A-Circuit, Low Side Drive, 14.5 Vset, Light Activated, Soft Start, 6 Seconds LRC, Remote Sense, Reverse RVC Function, Field & Lamp Short Circuit Protection, Standard Lamp (without output)
• Design: For Mitsubishi Alternators on Nissan & Infiniti
• Replaces OEM: Mitsubishi 547, A866X54772, A866X68272, 5479413H
• Aftermarket Crossovers: IM547, 80083137, 80083124, 8003-3124, 8003-3137, 1J-60062, T52012, W085-332, 230-48140, VRH2009-130, 09559, 196-109, MT-1857
