Hi! I recieved the order on time and am grateful, but Ive had an issue with one of the parts included...

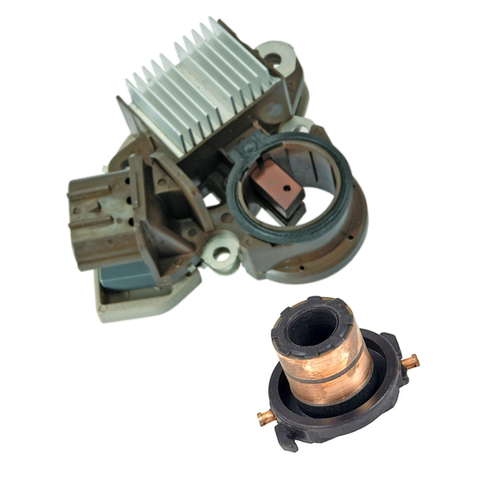

Question: Hi! I recieved the order on time and am grateful, but Ive had an issue with one of the parts included. I rebuilt my alternator on my 2011 Mazda 6 2.5L with the provided parts, and the bearings, slip ring, and brushes are functional, but it seems the regulator isn't working properly. upon bench testing the alternator after assembly it initially seemed functional as the battery voltage increased as i spun the alternator shaft via my drill driver, but after installing it in my car and running the vehicle the battery was reading at 16 to 17 volts, much higher than it should be, meaning it was being overcharged. My understanding is that the regulator determines the alternators voltage input and output based on the state of the battery, and that this overcharging issue is most likely a regulator failure. To be sure before I contacted you, I checked for faulty wires and clean ground contacts, and finally installed a new (rebuilt) alternator in. This new alternator functions properly, which would indicate that the problem is the regulator I recieved and is not related to anything else in the car

Answer: Hi! I am very sorry for the project issue. It is a common complaint after bench testing these special P-D (Phase-Drive) style field-control unit regulators. They look identical to S-L Style regulator/alternators and are immediately damaged on traditional bench test. We understand wanting to test the DIY rebuild before installing, but it is particularly problematic on this alternator. If this mistake was already made during a test, the alternator will likely output zero voltage or default to total full-fielding (surging past 16–17 volts), confirming the regulator has been rendered useless.

An output of 16-17 Volts means your Mazda's alternator is completely full-fielding, which will quickly cook your battery and destroy sensitive vehicle electronics.

On your 2011 Mazda 6 2.5L, the charging voltage is not controlled by the alternator itself, but rather by the Powertrain Control Module (PCM) sending a variable Pulse Width Modulation (PWM) signal to the alternator's D (Driver) terminal. This severe overcharging condition happens when that command loop is broken. If we weren’t pretty certain it wasn’t from the damaged regulator then:

1. Check the D-Wire Continuity

The most common cause for this specific failure is a broken wire in the engine harness. If the D (Driver) wire loses connection to the PCM, the internal regulator loses its shut-off command and defaults to maximum output.

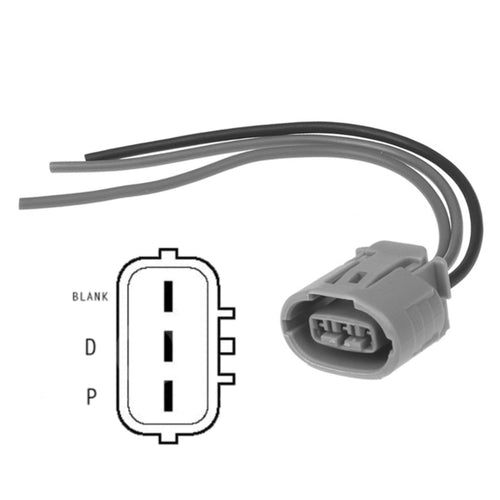

Inspect the Plug: Unplug the two-pin connector at the alternator and check for corroded, backed-out, or green copper pins.
Trace the Harness: Inspect the wiring harness a few inches back from the alternator plug. It is highly prone to chafing and snapping inside the plastic loom due to engine movement.

2. Test PCM Command Integrity

The PCM regulates voltage by rapidly switching the ground on the D-line to achieve a specific target voltage.

Use a digital multimeter to test the voltage on the D-wire with the key on, engine off.
If you have access to an oscilloscope, back-probe the D-terminal with the engine running. You should see a clean square wave signal. A flat-line signal means the PCM has stopped communicating, causing the regulator to run wide open.

3. Verify Stator Phase Signal

The P (Phase) terminal sends an AC signal back to the PCM to confirm the alternator is spinning. If the PCM does not receive this confirmation loop, it may continuously pump full field current down the D-line to force a response, driving the system to 17 Volts. Ensure the P-wire has total continuity back to the PCM connector.

4. Replace the Ruined Regulator

If you recently bench-tested this alternator incorrectly on an older S-L style machine, the internal logic gates are permanently melted. Similarly, if the wiring to the PCM checks out perfectly with zero resistance and correct signals, the internal transistor inside the voltage regulator has failed in a closed (shorted) position. In either case, the alternator assembly must be replaced.

✅ Most Likely Diagnostic Conclusion

The 16-17 Volt overcharge condition on your vehicle is caused by a severely faulted voltage regulator or a severely broken PCM communication circuit (D-Wire). Do not run the engine under these conditions, as voltages exceeding \(16\text{ V}\) will quickly blow out modules, light bulbs, and swell the battery casing.

🛠️ Proper Testing Protocol

If a Mazda P-D alternator survives an accidental incorrect connection—or if you are attempting to test one safely in the future—keep these rules in mind:

Use an ECU Simulator: A standard, passive bench tester cannot test a P-D alternator. The bench test machine must utilize a specific digital plug-in adapter module that mimics the vehicle’s ECU PWM command signal.
Test it On-Vehicle: Due to the risk of bench-testing errors, it is safest to diagnose the alternator while it is bolted to the car. Connect an automotive oscilloscope to the D-terminal wire to check if the PCM is communicating clean square waves to control the duty cycle

💥 Why it Destroys the Regulator

The critical damage occurs due to how different the pins function between the two designs: the terminal logic between these two architectures is completely incompatible, hookups intended for a traditional style plug apply catastrophic electrical conditions to a P-D system.

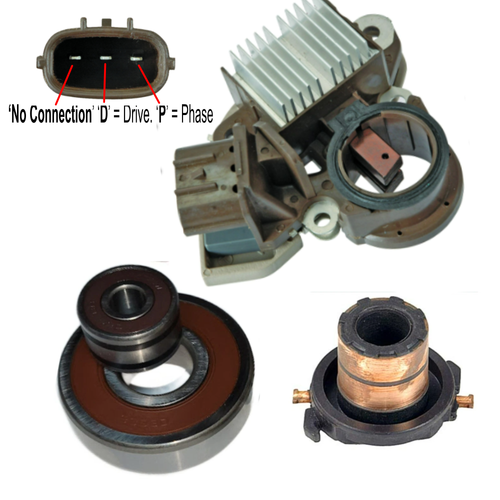

S-L Style Plug P-D Style Plug

+----------------+ +----------------+

| S = Sense | | P = Phase | <-- Connected to Stator (Output)

| L = Lamp | | D = Driver | <-- Controlled by ECU (PWM Input)

+----------------+ +----------------+

The Fatal Link (L mapped to D): In an S-L style bench test, the L (Lamp) wire supplies 12-volt battery power through a test light to initialize the field winding. However, on a Mazda alternator, that same physical pin location is the D (Driver) terminal. The D terminal is an unbuffered, delicate logic line designed only to receive low-voltage Pulse Width Modulation (PWM) signals from the Powertrain Control Module (PCM/ECU). Hooking full battery voltage to the D terminal fries the computer driver circuit inside the regulator instantly.

The Secondary Mismatch (S mapped to P): On an S-L alternator, the S (Sense) wire connects directly to a constant 12V battery source to read system voltage. On a P-D alternator, that pin location is the P (Phase) terminal, which outputs raw AC voltage directly from one leg of the stator windings. Backfeeding 12V DC power straight into the stator leg can easily cook the internal diodes or stator junctions.
