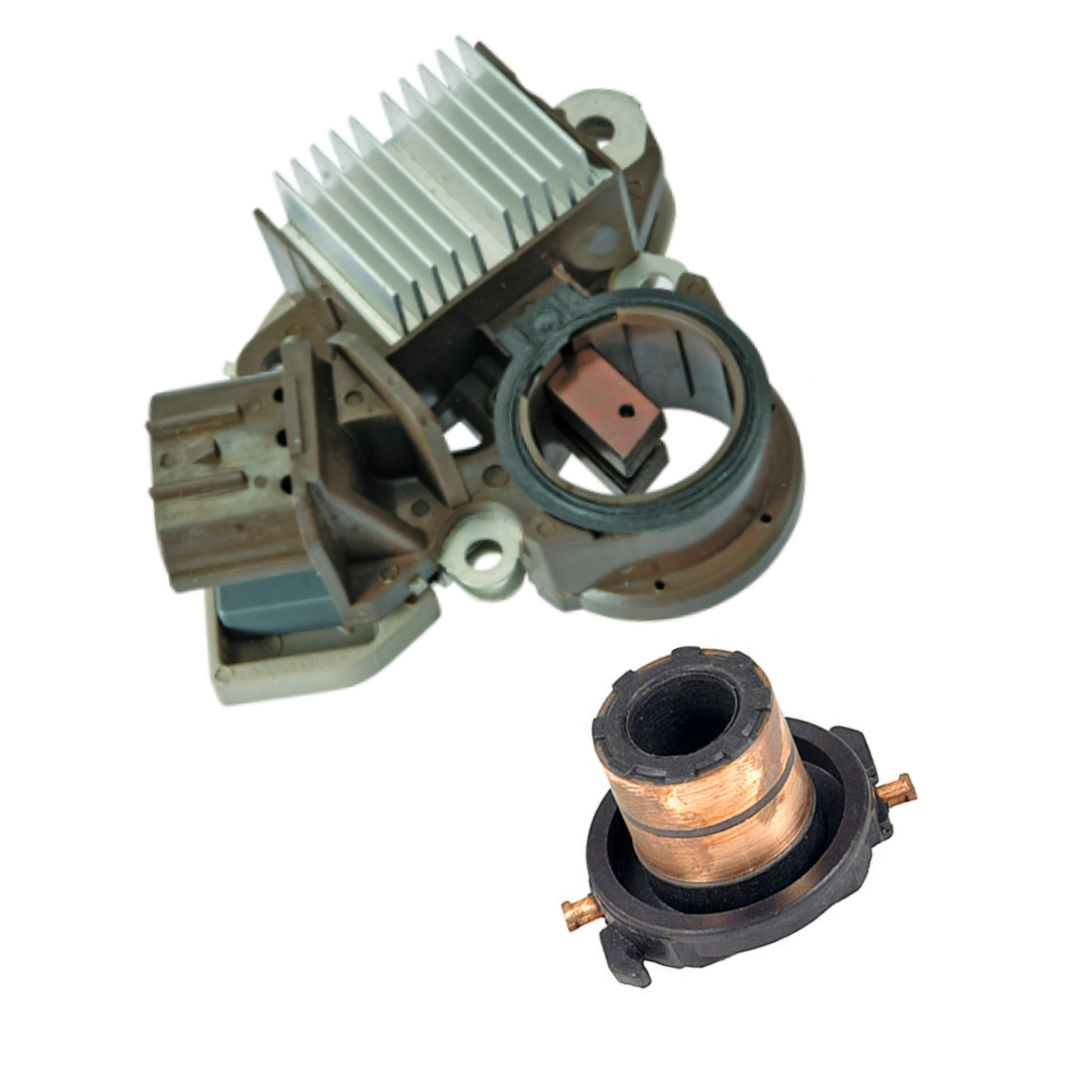

Alternator Regulator Brushes Slipring Kit 2006-2008 Mazda 6 2.3L NA, Miata, 2009-2013 Mazda6 2.5L - 11168RK

Mazda Car
6 L4 2.3L 2260cc Naturally Aspirated 2006-2008
6 L4 2.5L 2488cc 2009-2013
MX-5 Miata L4 2.0L 2000cc 2006-2008

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4239X
ERA 209352
Excel 10937
Hollander 55871
Lester 11168
Mazda L3P9, L3P9-18-300A, L3P9-18-300B, L3P9-18-300C, L3P9-18-300R, L3P9-18-300R-0C, L3P9-18-300D, L3P9-18-300R0C
Mitsubishi A002TJ0391, A002TJ0391A, A002TJ0391B, A002TJ0391CMU, A2TJ0391, A2TJ0391A, A2TJ0391B, A002TJ0391C, A2TJ0391C
PIC# 203-5131 203-5131B

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
  Here for Additional Part https://diyalternator.com/collections/mitsubishi-11168
