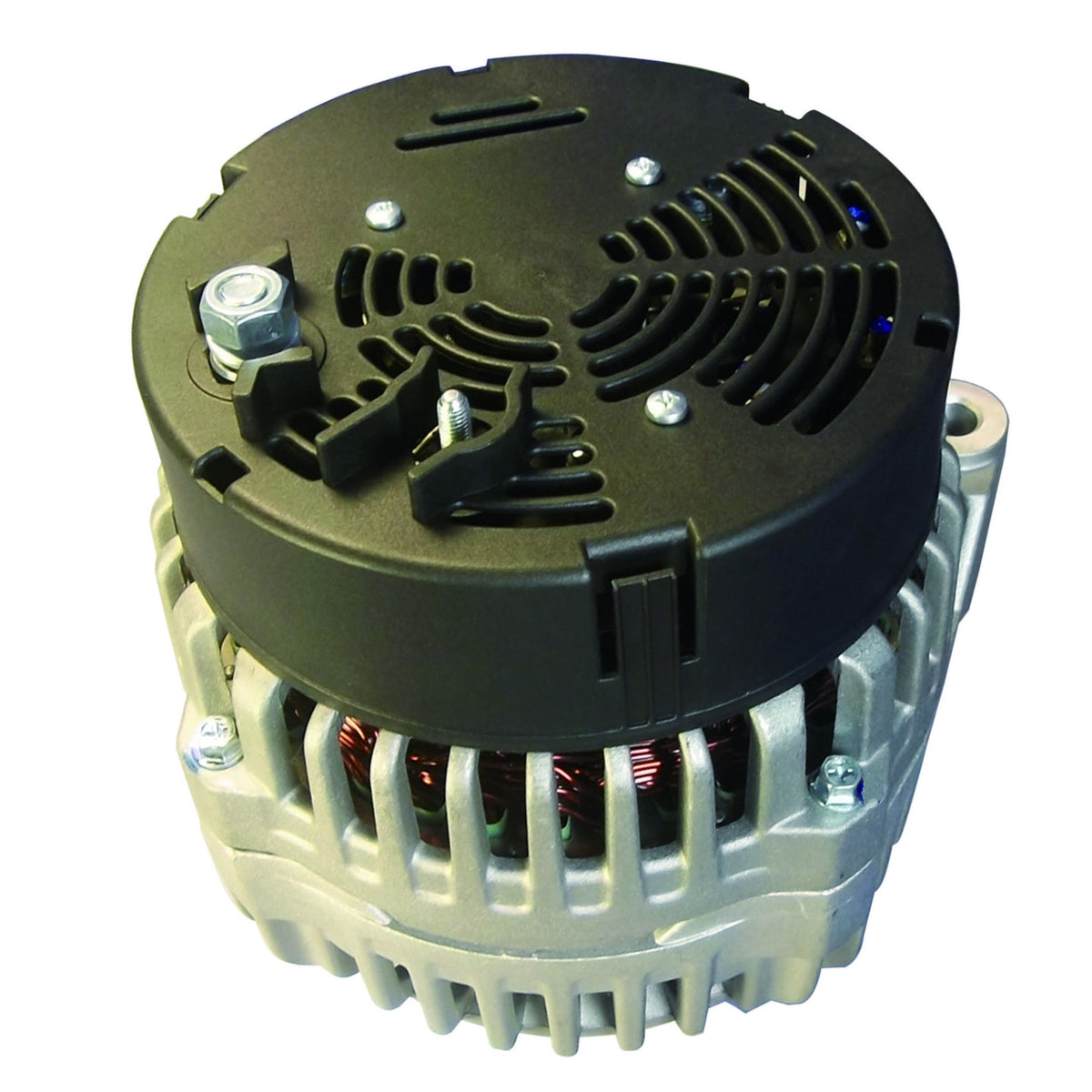

Alternator Mercedes C280 CLK320 E320 w/115A Bosch 0123510068 -079 -081 - 13819

Mercedes-Benz Car
C240 V6 2.6L 2001 with 115 Amp Bosch
C280 V6 2.8L 1998-2000 with 115 Amp Bosch
CLK320 V6 3.2L 1998-2000 with 115 Amp Bosch
E320 V6 3.2L 1998-2000 with 115 Amp Bosch
Mercedes-Benz Truck
G500 V8 5.0L 2002 with 115 Amp Bosch
ML320 V6 3.2L 1998-2003 with 115 Amp Bosch

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-1143
Bosch 0 123 510 068, 0 123 510 081, 0 123 510 079, 0123510068, 0123510081, 0123510079
Bosch Remanufactured AL0764X, AL0762X
Delphi RM3302, RM3307
Excel 10524
Hollander 60800
Lester 13819 13818
Mercedes-Benz 010-154-07-02, 010-154-32-02, 011-154-07-02, A0101543202, 010-154-81-02, 010-154-81-02-80, 010-154-81-02-88, A0101548102, A010154810280


Manufacture Bosch
Amperage Rating 115
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
OEM Manufacturer Bosch
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 381
Plug Type 381
Pulley Belt Type Serpentine
Pulley Diameter 51
Pulley Groove Od 51
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

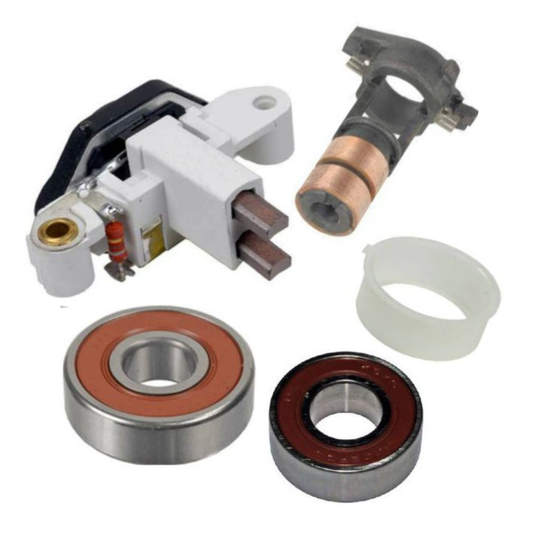

Alternator Rebuild Kit 13819RK-A 13818RK-A

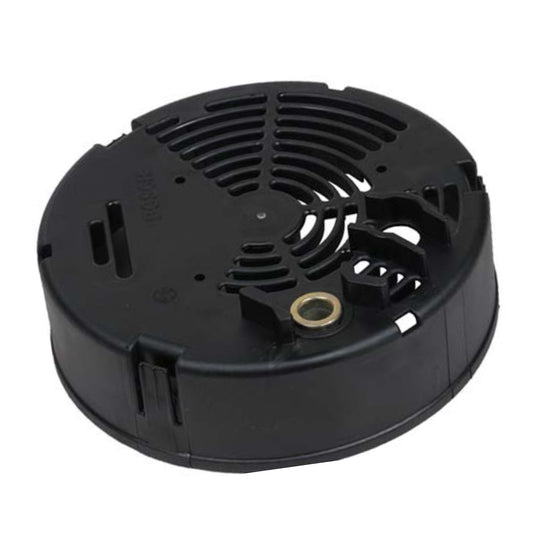

COVER W010-13 8420138 W010-13
R6203-2RS C3 BEARING W02X-07-1 54000
6304EHSR BEARING-17x52x17 W02X-45-1 55224
BRUSH-W/NEEDLE W030-03 73201105
BRUSH KIT-4x6x16mm W030-03K

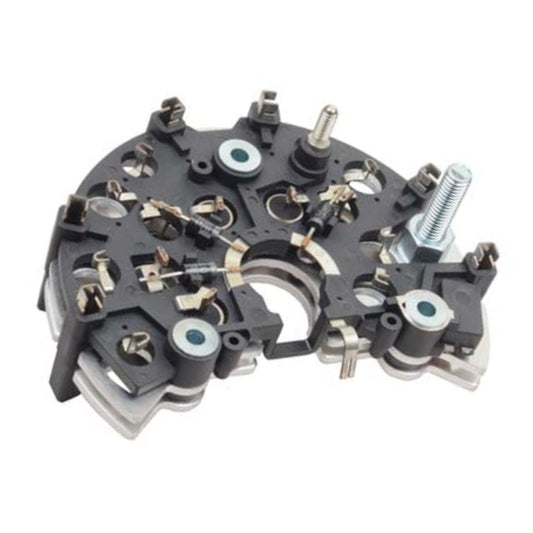

RECTIFIER 1 W060-60 77201410
RECTIFIER 1 W060-65 W060-65N 77201110
ROTOR W070-13 7020492
REGULATOR 14mm 14.6V 180OHM W080-09 80201161 IB387
PLASTIC BRG RETAINER-6203 W110-39
SHAFT COLLAR-PRESS FIT W110-50
PULLEY NUT-16x1.5 DEEP W110-63
BOSCH BEARING RETAINER-6304EHS W110-70N 5652 46-91552
BRG RETAINER SCREW M4 19mm W110-73
Frame, DE 76202032
Frame, SRE 75202505
Pulley 79202063
Screw 9620111
Slip Ring 7120202
Stator 72209397

This is for the 115 Amp Bosch Option. The other options on these models may have different parts for repairing. Please contact us if you have the Valeo or different option that is not a match to this 115 Amp Bosch 0123510068, 0123510081, or 0123510079. Thank you!
