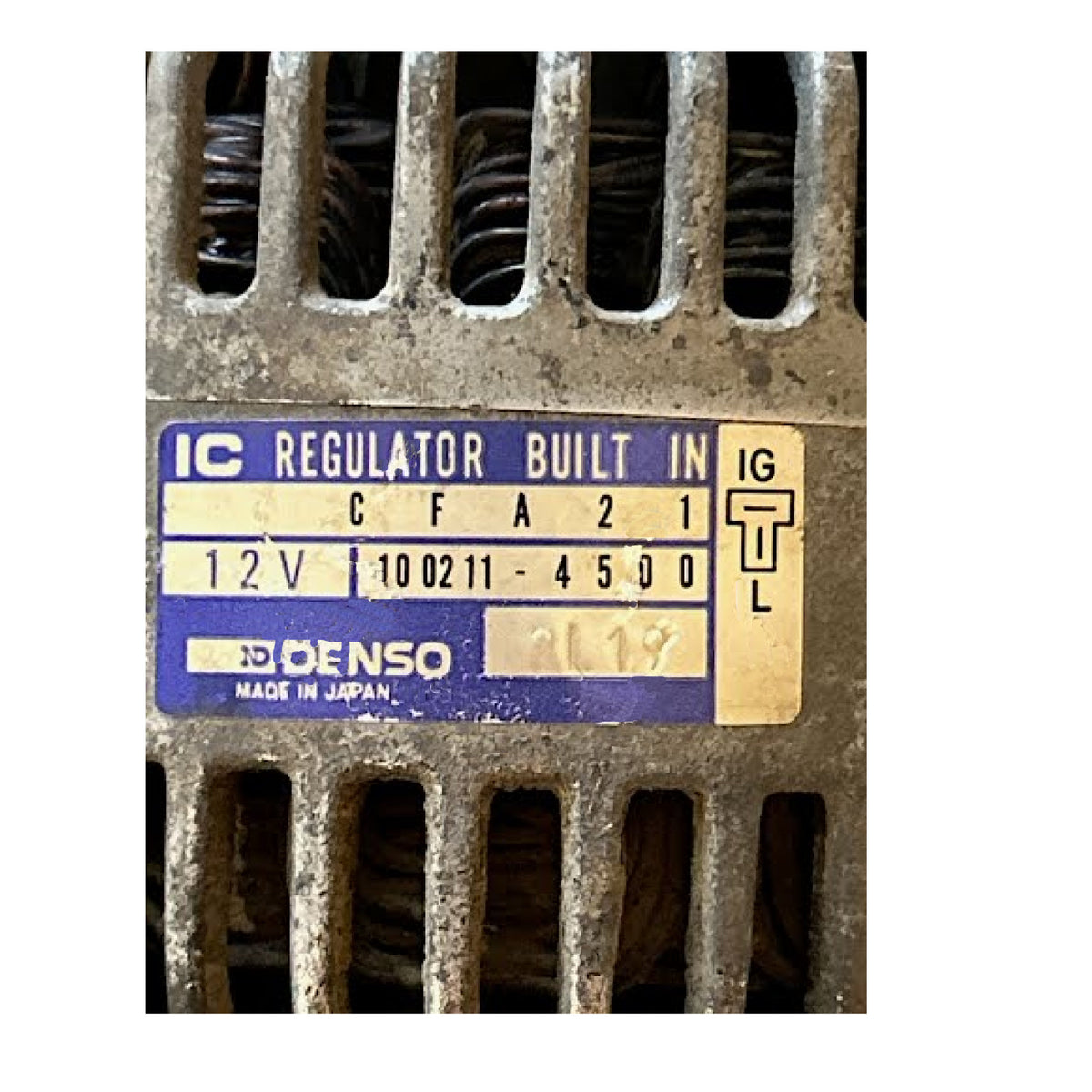

Alternator for Honda H6522 Tractor - 100211-4500

Honda 25HP Tractor
Honda H6522 Tractor

Alternator Manufacturer and Factory #s
Denso 100211-4500
Honda CFA21, 31600ZG5L01, 31600-ZG5-L01
PIC # 290-5641

Alternator Rebuild Kit 100211-4500RK-A
COVER 1 W015-70
6202-2RS BEARING-15x35x11mm 1 W02X-05-1

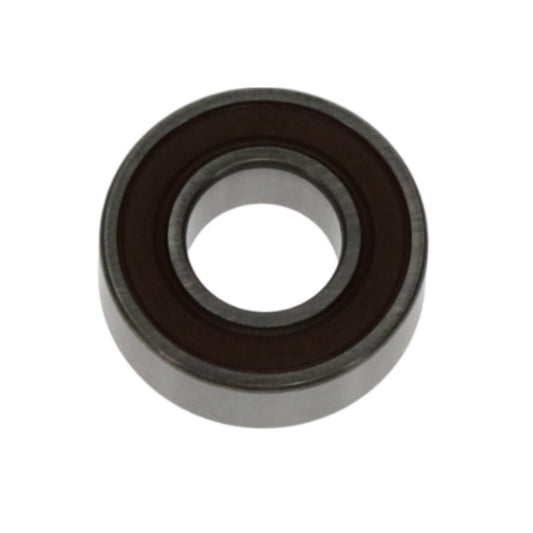

6002DW BEARING-15x32x11mm 1 W02X-59-1
BRUSH-5x7x15mm 2 W035-04
PULLEY 1GRV 69mm 1 W055-14

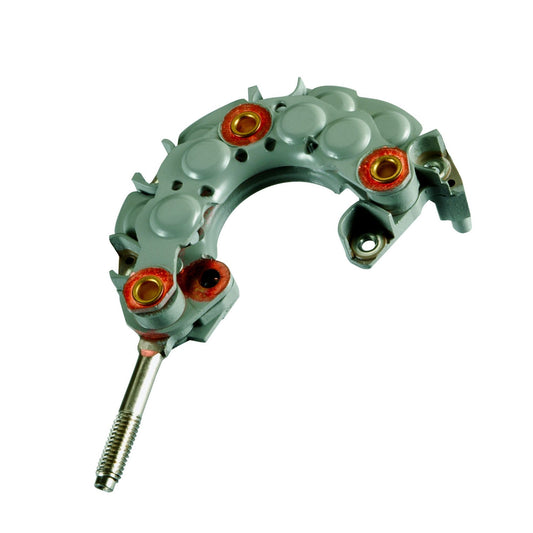

RECTIFIER 1 W065-157
ROTOR-137mm L 69 OD 1 W075-09

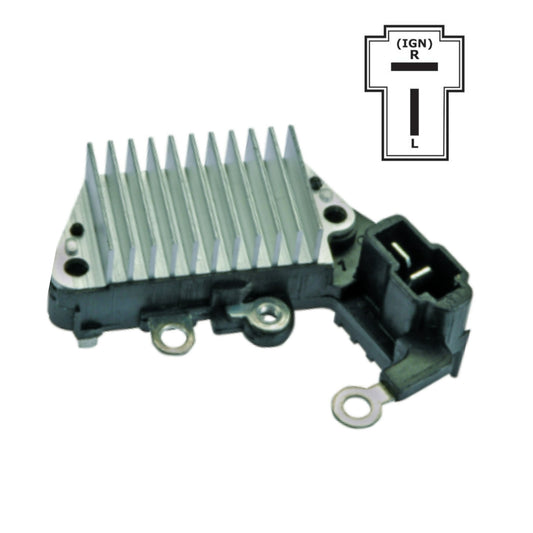

REG INSERT IG-L 57.55mm 1 W085-68
REG CASE IG-L 1 W085-75 T7254
STATOR-40A 70.5m ID 1 W105-28
TERMINAL INSULATOR-SHORT 1 W115-13
RETAINER SCREW 4x.18mm 4 W115-205
REG SCREW-M4x0.7x25 2 W115-206
ROTOR BEARING SPACER-FLAT 1 W115-207
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER GROMMET-LATE 1 W115-22
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
NUT 6x1.0mm 10mm HEX 1 W115-39
BEARING RETAINER-GEO,SUZUKI 1 W115-55
BRUSH/RECT SCREW 4mm 6 W115-81

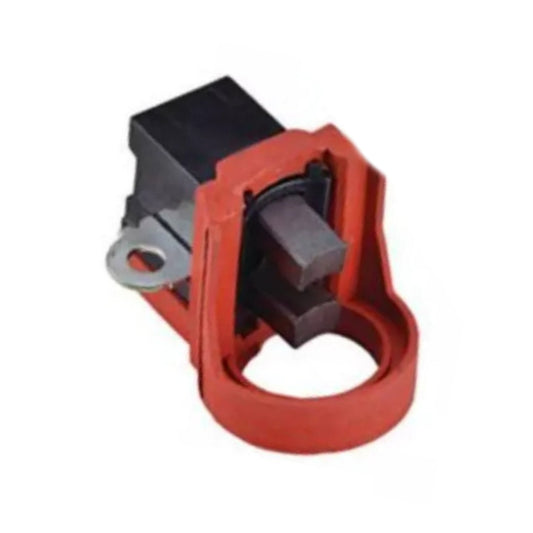

BRUSH HOLDER SET- 1 W155-04
BRUSH HOLDER 14668 1 W155-04B
SLIP RING W/LEAD 1 W165-00L
SLIP RING COLLAR-(1PC) 2 W165-04
