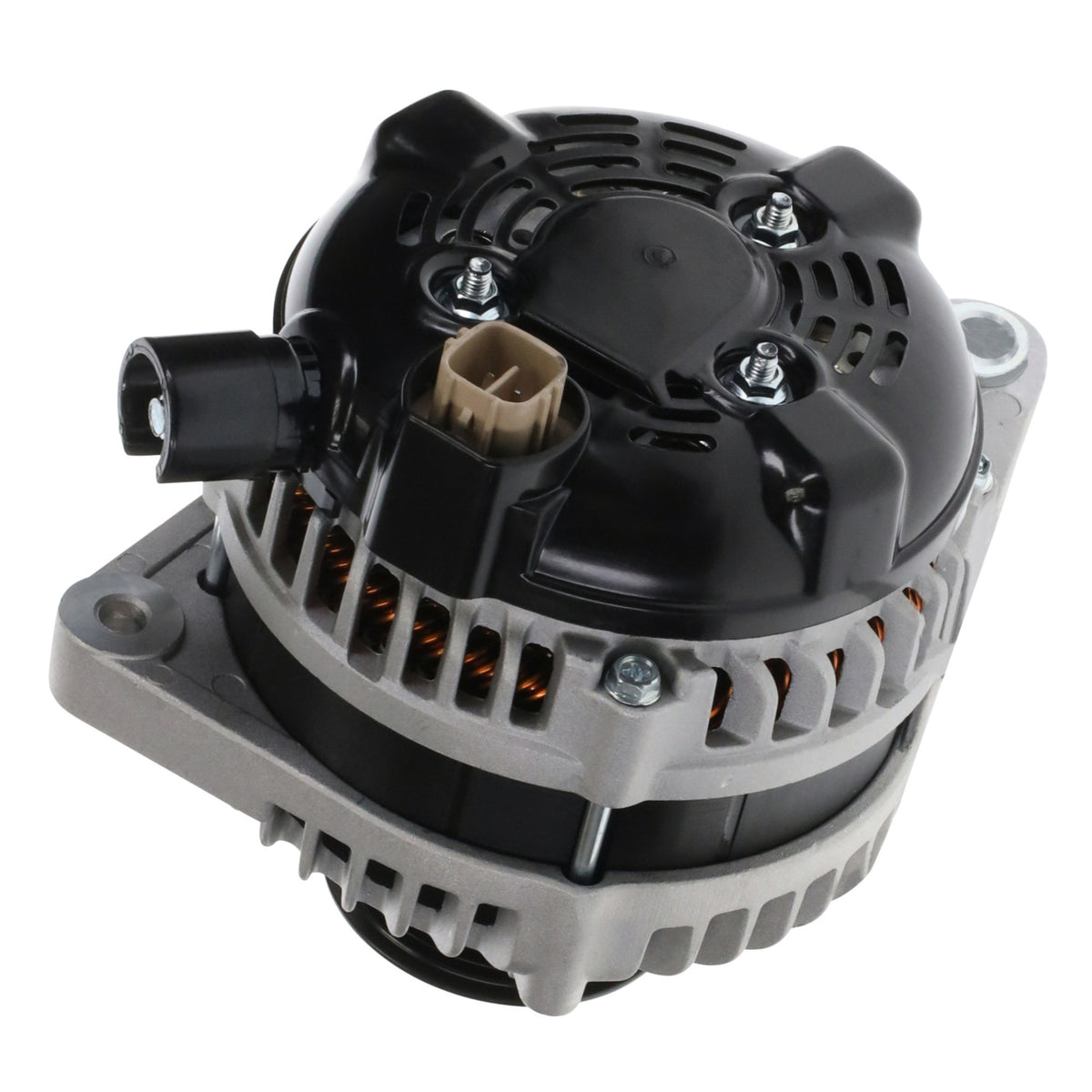

Alternator 2004-2007 Accord V6 3.0L 104210-3500, 104210-4480, 104210-4481 - 11030

Honda Accord V6 3.0L 2997cc 2004-2007

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4057X
Denso 104210-3500, 104210-4480, 104210-4481
Excel 10772
GM 88861823
Hollander 60910
Honda 31100-RCB-Y01, CSC50, 06311-RCB-505RM, 31100-RCB-505RM, 31100-RCB-Y02, CSD48
Lester 11030
J&N 400-52368
Beck Arnley 186-1180
PIC Picture ID 290-5187
Remy Light Duty 12638
Wilson 90-29-5581

Manufacture DENSO
Amperage Rating 130
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Mfr Series HAIRPIN
OEM Manufacturer DENSO
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 933
Plug Type 296
Pulley Belt Type Serpentine
Pulley Diameter 65
Pulley Groove Od 65
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebiuld Kit 11030RK-A
COVER W015-68
6303-2RS C3 BEARING W02X-11-1
6202 D2RS BEARING-15x35x13mm W02X-20-1
BRUSH-5x7x15mm HP W035-04A
PULLEY 6GRV 65mm OD W055-64
RECTIFIER W065-217, W065-217A, TRN-7442
REGULATOR C-IG-L-FR W085-283, W085-283A, T7315
B+ INSULATOR W115-189
BRG RETAINER SCREW 4x.18mm W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-53mm OD W115-51
BRUSH/RECT SCREW 4mm W115-81
SRE FRAME W125-41
DE FRAME W135-27
BRUSH HOLDER 12V W155-24
SLIP RING COLLAR-(1PC) W165-04
HAIRPIN SLIP RING 1 W165-11
