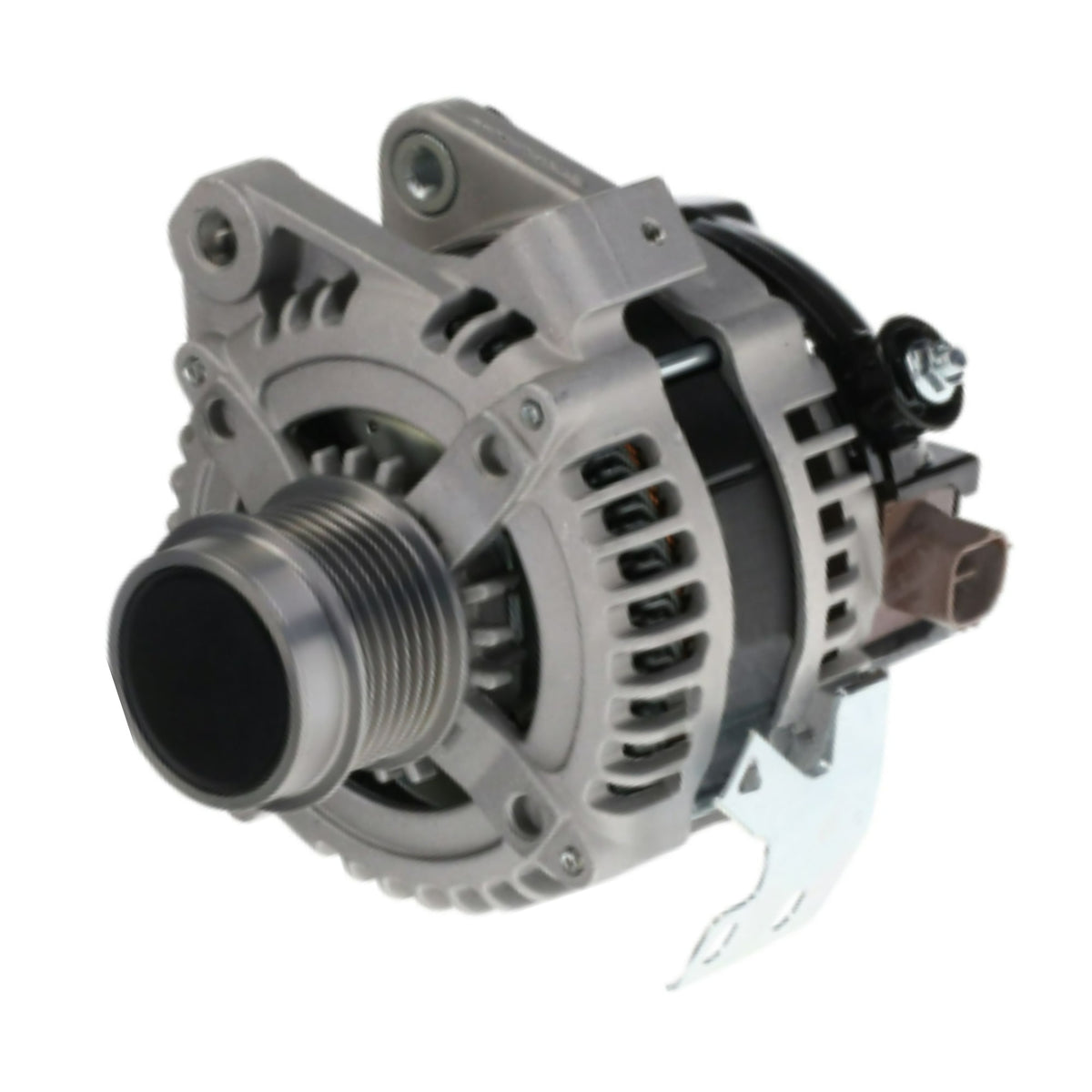

Alternator 2006-2008 Toyota RAV4 2.4L 100 Amp - 11201

Toyota RAV4 L4 2.4L 2362cc 2006-2008 100 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3352X
Denso 104210-4790, 104210-4791, 104210-4792, 104210-4793, 104210-4794, 104210-4795, 210-0656
Excel 10901
Hollander 50128
MFR Series - Family Type HAIRPIN
Toyota 0986U-R6019, 27060-28300, 27060-28301, 27060-28301-84, 27060-2830184
PIC# 290-5281

Manufacture DENSO
Amperage Rating 100
Decoupled Or Clutch Pulley Yes
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 933
Plug Orientation SIDE
Plug Type 297
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 7
Pulley Type SD7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11201RK-A
ALTERNATOR NEW-11201 TOYOTA RAV4 610050A
COVER W015-65, 84909046
6303-2RS C3 BEARING W02X-11-1 54700
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514
BRUSH-5x7x15mm HP W035-04A, 7390901 38-8201x2
DCP PULLEY-7GRV55mm 1 W055-108A, W055-108B, W055-108N 79909050
RECTIFIER TOYOTA M6 1 W065-220, W065-220A, TRN-7430, 77904071
INT REGULATOR RAV4 RLO W085-276, T7302, 80904455
Plug 9801933
B+ INSULATOR TOYOTA W115-173
B+ POST 6mm SIDE W115-175
B+ RETAINING NUT-6mm 17.6 L W115-180
Nut 95001451
RETAINER SCREW 4x.18mm W115-205
ROTOR BEARING COVER-TOP 1 W115-208
LITENS DECPL PULLEY CAP-44.8mm 1 W115-227N
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45 98909030
BEARING RETAINER-53mm OD W115-51 8590901
BRUSH/RECT SCREW 4mm 3 W115-81
Rotor 70905073
SRE FRAME 1 W125-37
Stator 72908513
Slip Ring 7190904B
DE FRAME TOYOTA W135-112 76909251
Frame, SRE 75909284
BRUSH HOLDER W155-24 74909206 39-8206
