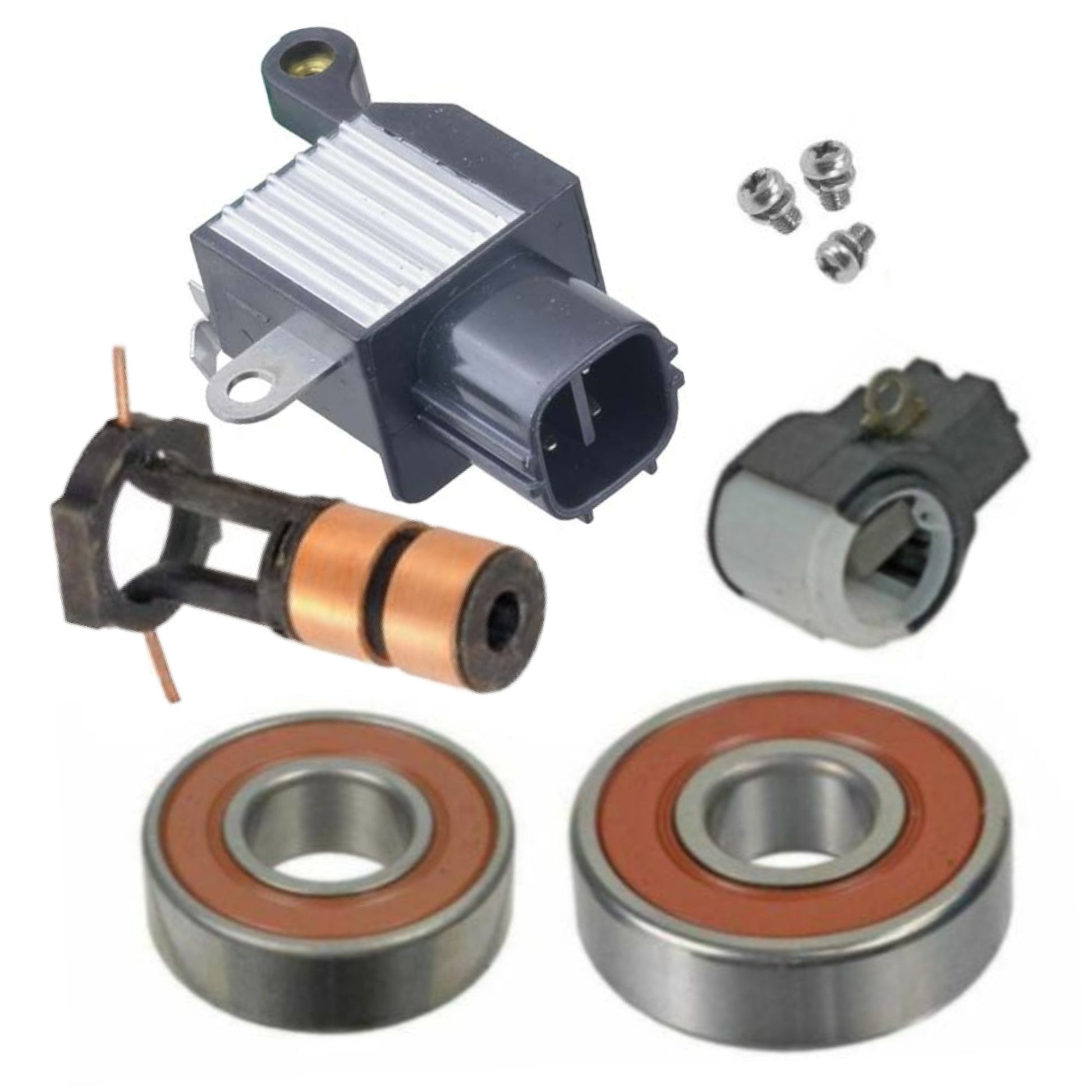

Alternator Rebuild Kit 2006-2008 Toyota RAV4 2.4L 100 Amp - 11201RK-A

Toyota RAV4 L4 2.4L 2362cc 2006-2008 100 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3352X
Denso 104210-4790, 104210-4791, 104210-4792, 104210-4793, 104210-4794, 104210-4795, 210-0656
Excel 10901
Hollander 50128
MFR Series - Family Type HAIRPIN
Toyota 0986U-R6019, 27060-28300, 27060-28301, 27060-28301-84, 27060-2830184
PIC# 290-5281

• Voltage Regulator - Specifications: 12 Volt, 4 Terminal IG-RLO-L-M, B-Circuit, High Side Drive Regulator, 14.10 voltage set point, for Denso Alternators, Standard Lamp - No Output, Field, Lamp Short Circuit Protection, Full range LRC, RLO voltage control, Temperature Coefficient // Replaces Denso 126600-3020, 126600-3220, 126600-3320, 126600-3800, 3020, 3220, 1123-046RS, GC1M3320, GC2M3020, GC2M3220, Other 230-52109, 230-52167, 230-52114, T7302, 216-079, GNR-N071, W085-276, 26525, 80904455 - IN6302

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854

• SRE Rotor Bearing 53514 15x35x13mm Ref# 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Drive End Bearing 54700 17x47x14mm Ref# 6303-2RS, 949100-1010, 949100-2820 - 6-303-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030, 39-8206

• Brush Holder Attaching Bolts M4 x 0.7 x 5.7mm L - 85-1205 x2
  Additional Parts https://diyalternator.com/collections/denso-11201
