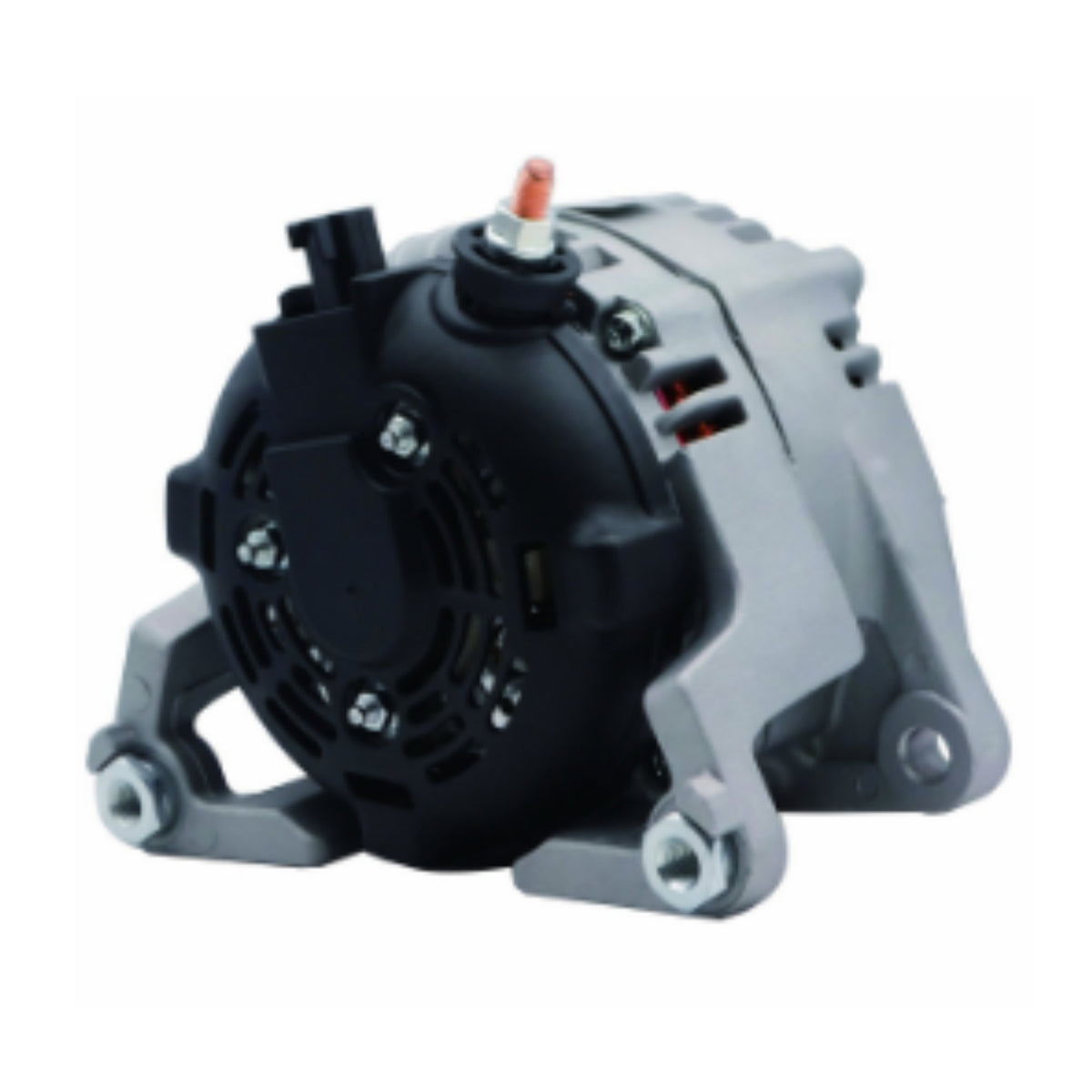

Alternator 2009-2018 Ram 5.7L Hemi 160 Amp - 11299

Dodge Ram 1500 V8 5.7L 345cid 2009-2010 160 Amp
Dodge Ram 2500 V8 5.7L 345cid 2010 160 Amp
Ram 1500 V8 5.7L 345cid 2011-2012 160 Amp
Ram 2500 V8 5.7L 345cid 2011-2018 160 Amp
Ram 3500 V8 5.7L 345cid 2011-2018 160 Amp

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6476X
Chrysler 56028697AM, 56028697AP, R6028697AP, 56028697AO, 56028697AQ, P56028697AO, 56028697AL
Denso 421000-0730, 421000-0731, TN421000-0730, TN421000-0731, 421000-0722, TN421000-0722, 421000-0721
Lester 11299, 11389
Lester Old 11756, 11389
Excel 10968
MFR Series - Family Type HAIRPIN
PIC# 290-5139E, 290-5519, 290-5567

TYPE Alternator
AMPERAGE 160
DESIGN ER/IF
MFR DENSO
MFR SERIES HAIRPIN
PLUG CLOCK 1
PLUG CODE 378
PLUG ORIENTATION SIDE
PULLEY DESIGN S6
PULLEY GROOVE OD 52-54
ROTATION CW
VOLTAGE 12

Cover 1 W015-54 84909053
6303-2RS C3 BEARING 1 W02X-11-1 54700
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514
Brushes-5x7x15mm HP 2 W035-04A 38-8201x2
PULLEY-13927 6GRV 55mm OD 1 W055-83
Rectifier 1 W065-214, TRN-7434 77904033
B+ INSULATOR CHRY 1 W115-172 92909510
B+ POST 8mm SIDE 1 W115-176
B+ RETAINING NUT-8mm 17L 1 W115-183
FIELD TERMINAL BLOCK 1 W115-202 99901009 46-82208
Plug 9801378
BRG RETAINER SCREW 4x.18mm 1 W115-205
ROTOR BEARING COVER-TOP 1 W115-208
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N 95001505
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-53mm OD 1 W115-51 8590901
BRUSH/RECT SCREW 4mm 1 W115-81
SRE FRAME-13988 1 W125-61 75909245
DE FRAME-13988 1 W135-43 76909266
BRUSH HOLDER 12V 1 W155-24 74909206 39-8206
SLIP RING 1 W165-11
