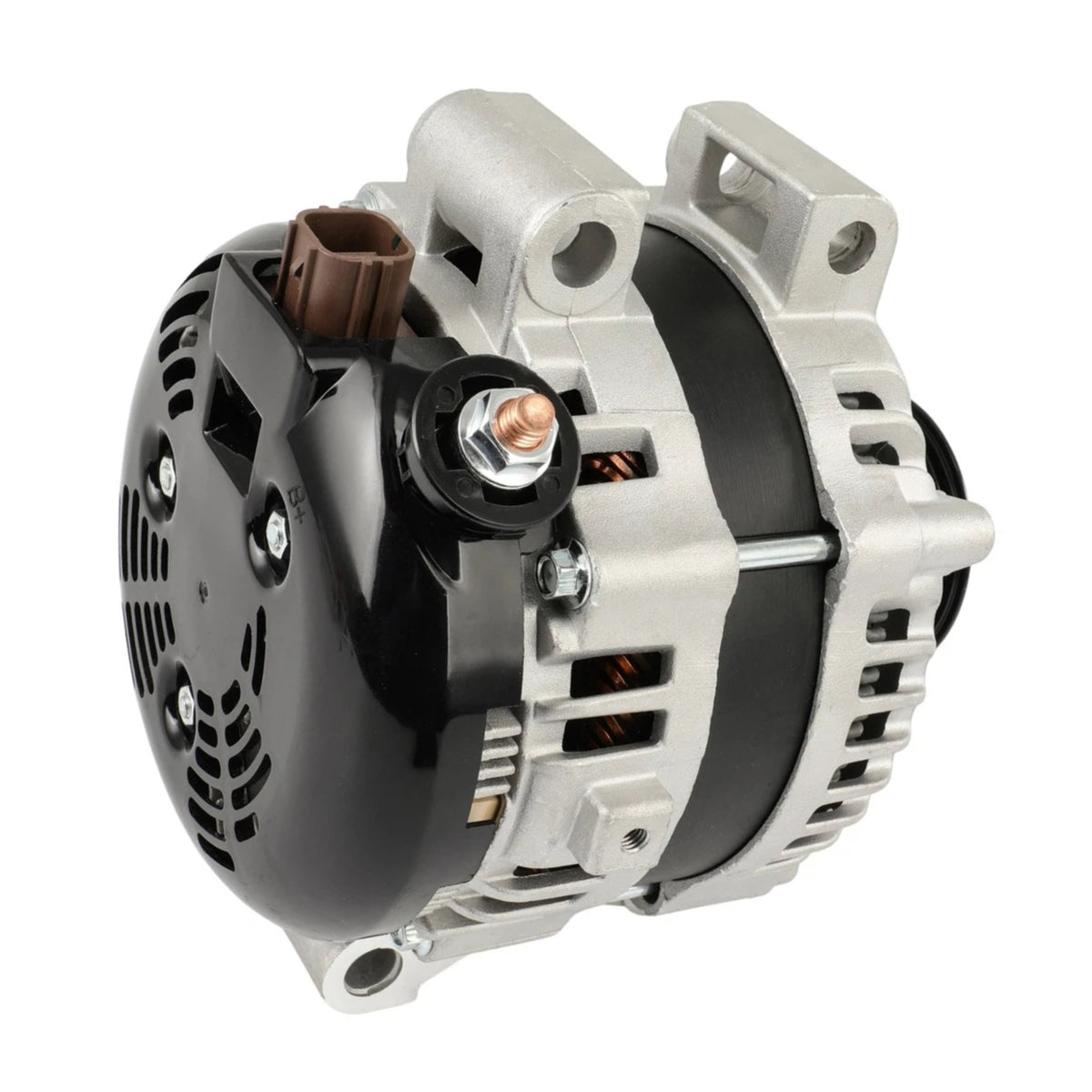

Alternator for 2007-2012 Lexus LS460 4.6L 180 Amp - 11328

Lexus LS460 V8 4.6L 4608cc 2007-2012 180 Amp

Alternator Manufacturer and factory #s
Denso 104210-6130, 104210-6131
Denso Europe DAN1281
Excel 10934
Hollander 50184
Lester 11328
Lexus 27060-38040, 27060-38041, 27060-38070
Lucas Electrical Europe LRA04142
MFR Series - Family Type HAIRPIN
PIC# 290-5394

Manufacture DENSO
Amperage Rating 180
Decoupled Or Clutch Pulley No
Design IR/IF
Family 100
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Outside Pulley Diameter 60
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug 933
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Manufacture DENSO
Amperage Rating 180
Decoupled Or Clutch Pulley No
Design IR/IF
Family 100
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Outside Pulley Diameter 60
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug 933
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11328RK-A

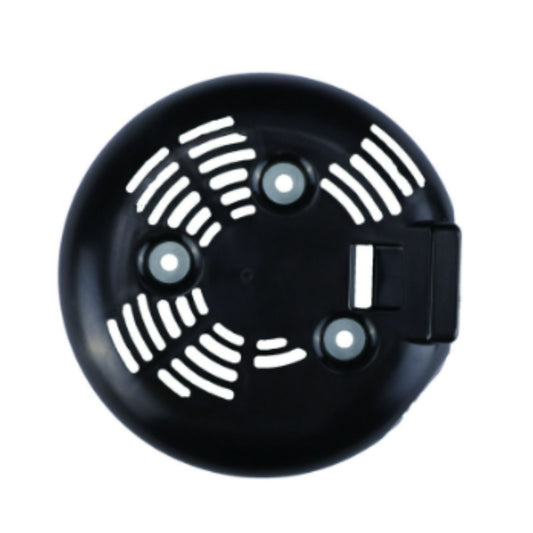

COVER TOYOTA 1 W015-92 92909043
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514
333 2RS BEARING-17x52x16mm 1 W02X-49-1 55222
BRUSH-5x7x15mm HP 1 W035-04A
RECTIFIER 1 W065-236 77904079
Regulator RLO 1 W085-276 T7302 80904455
Plug 9801297
BRG RETAINER SCREW-M4.5x18L 1 W115-204
B+ INSULATOR DODGE 1 W115-210
ALT BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER SCREW-M4x14 4 W115-44
BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm 1 W115-81
Nut 95001451 95001505
Screw 96909012 96909016
Rotor
