Alternator Rebuild Kit for 2007-2012 Lexus LS460 4.6L 180 Amp - 11328RK-A

Lexus LS460 V8 4.6L 4608cc 2007-2012 180 Amp

Alternator Manufacturer and factory #s
Denso 104210-6130, 104210-6131
Denso Europe DAN1281
Excel 10934
Hollander 50184
Lester 11328
Lexus 27060-38040, 27060-38041, 27060-38070
Lucas Electrical Europe LRA04142
MFR Series - Family Type HAIRPIN
PIC# 290-5394

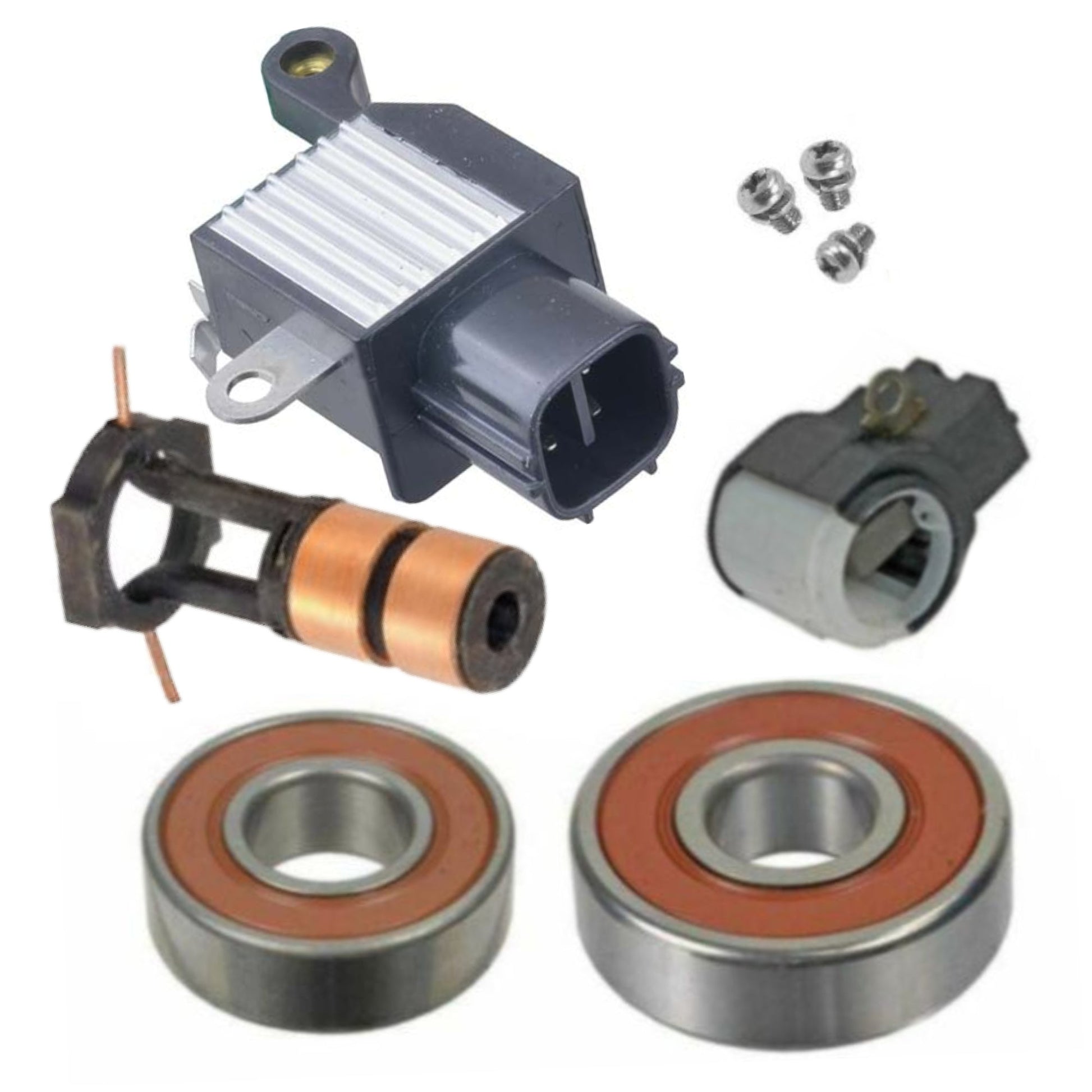

• Voltage Regulator - Specifications: 12 Volt, 4 Terminal IG-RLO-L-M, B-Circuit, High Side Drive Regulator, 14.10 voltage set point, for Denso Alternators, Standard Lamp - No Output, Field, Lamp Short Circuit Protection, Full range LRC, RLO voltage control, Temperature Coefficient // Replaces Denso 126600-3020, 126600-3220, 126600-3320, 126600-3800, 3020, 3220, 1123-046RS, GC1M3320, GC2M3020, GC2M3220, Other 230-52109, 230-52167, 230-52114, T7302, 216-079, GNR-N071, W085-276, 26525, 80904455 - IN6302

• Slip Ring for Hairpin Denso 5.8mm ID • 14.3mm OD Slip Ring • 11mm LL - 28-82854
  SRE Rotor Bearing 53514 15x35x13mm Ref# 279, Replacing 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• DE Drive End Bearing 55222 17x52x16mm 333, Replacing 949100-3330, 949100-4370, 949100-5010 -10-3042-4W

• Brush Holder Assembly with Brushes, Replacing 021620-3020, 021620-3030, 39-8206

• Brush Holder Attaching Bolts M4 x 0.7 x 5.7mm L - 85-1205 x2


Additional Parts https://diyalternator.com/collections/denso-11328
