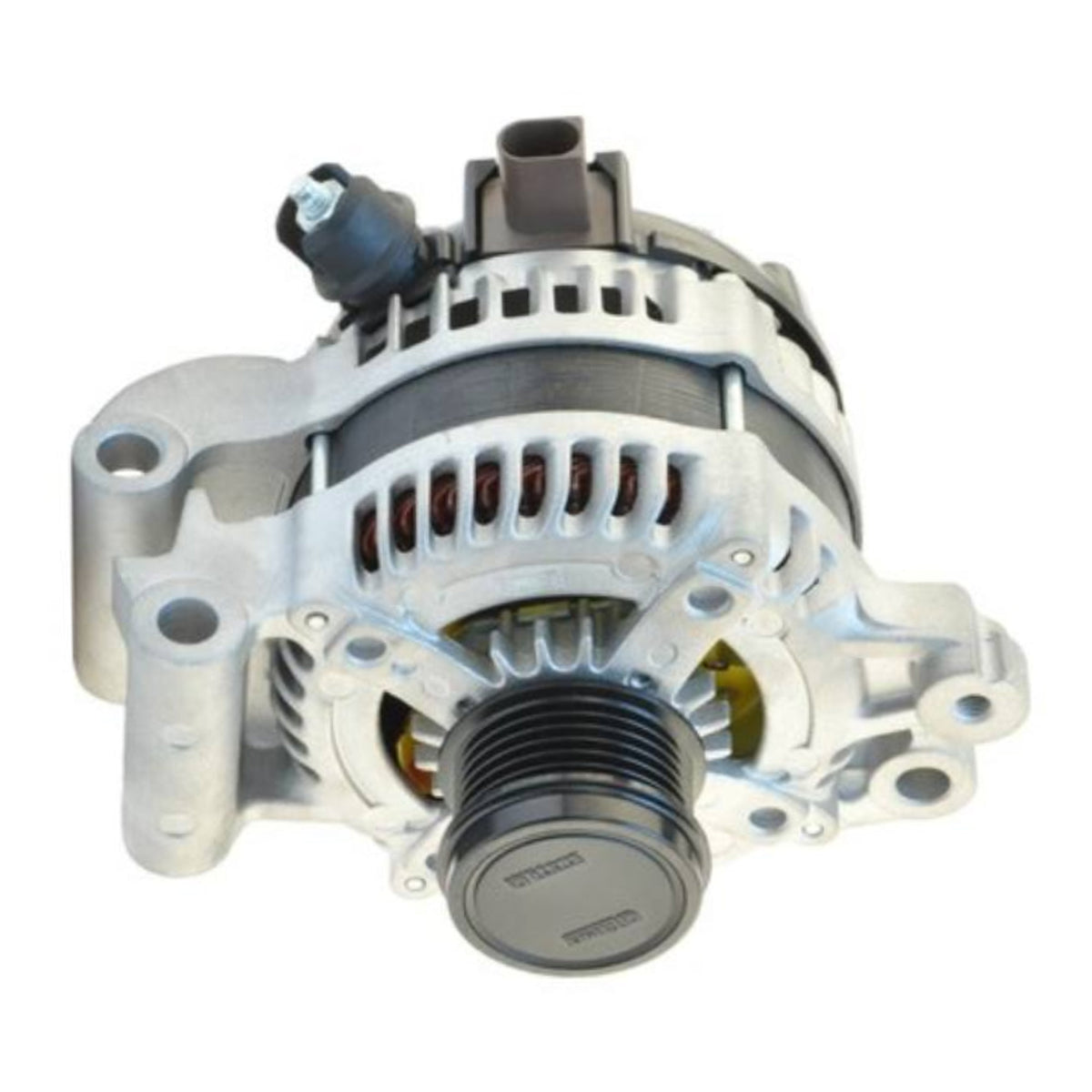

Alternator 2013-2016 Ford Escape 1.6L, 2017-2019 Escape 1.5L - 11636

Ford Escape L4 1.5L 2017-2019 150 Amp
Ford Escape L4 1.6L 2013-2016 150 Amp

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL7585X
DENSO 104210-233, 104210-2330, TN104210-2330, 210-0869, 210-1242
Ford CJ5T-10300-BB, CJ5Z-10346-D, CJ5T10300BB, CJ5Z10346D,
Lester 11636
Motorcraft GL-8672, GL8672
Pic # 290-6320
Wilson 90-29-5844
JN 400-52436R
Remy Light Duty 23025

Specifications/ Attributes
Manufacture DENSO
Amperage Rating 150
Decoupled Or Clutch Pulley No
Family 100
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Parts List
COVER 1 W015-102
6303-2RS C3 BEARING 54700 1 W02X-11-1
6202 D2RS BEARING-15x35x13mm 53514 1 W02X-20-1
BRUSH-5x7x15mm HP 2 38-8201Xx2 W035-04A
DCP PULLEY 6GRV52 OE 1 W055-138N
RECTIFIER 1 77904065 TRN-7434 W065-214
REGULATOR LIN 1 80904526 IN6370 W085-387
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
RETAINER SCREW 4x.18mm 4 W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
B+ INSULATOR-11293 F-250 1 W115-223
BRUSH HOLDER SCREW-M4x14 4 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-53mm OD 1 W115-51
BRUSH/RECT SCREW 4mm 1 W115-81
BRUSH HOLDER 1 74909206 39-8206 W155-24
SLIP RING 1 7190904B 28-82854 W165-11
Stator 6 Lead Denso Hairpin (021100-4940, 021100-5030) - 72908511
Rotor Replacing Denso 021200-8170, -8580 -70905161
Alternator Rebuild Kit 2013-2016 Ford Escape 1.6L, 2017-2019 Escape 1.5L - 11636RK-A
