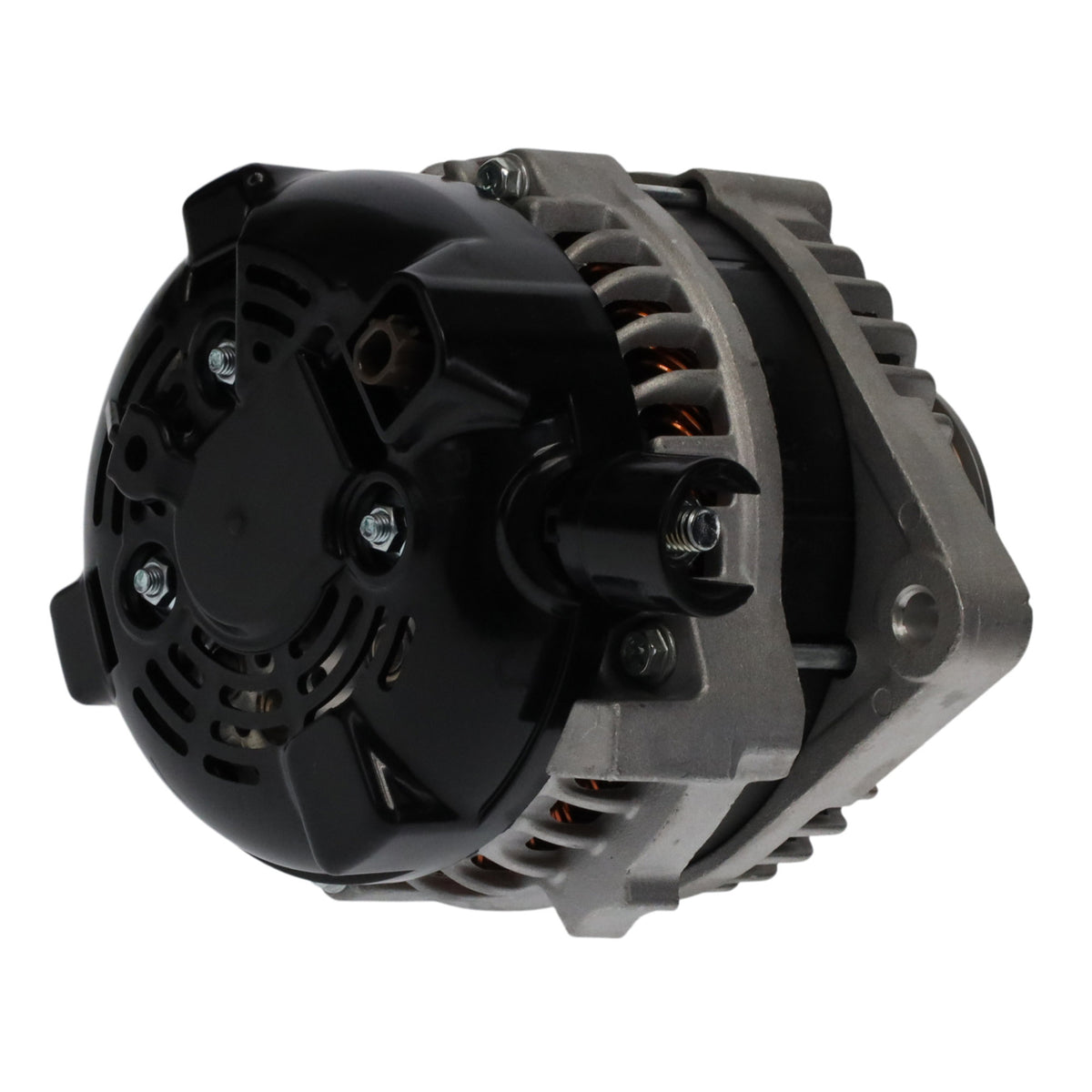

Alternator for Honda Acura 135A 104211-8300, 104211-8390, 104211-8760 - 11670

Acura RDX V6 3.5L 2016-2018
Acura TLX V6 3.5L J35Y6 2015-2020
Honda Accord V6 3.5L J35Y1 2013-2014
Honda Accord V6 3.5L J35Y1; J35Y2 2015-2017
Honda Crosstour V6 3.5L 3471cc 2013-2015

Alternator Manufacturer and Factory #s
Acura 31100-5J2-A51, 31100-5J2-A51RM, 06311-R53-505RM, 31100-R53-A01, 31100-R53-A01RM
Bosch Remanufactured AL1318X
Denso 104211-8300, TN104211-8300, 104211-8390, 104211-8760, TN104211-8760
Honda 06311-5G0-505RM, 31100-5G0-A02, 31100-5G0-A02RM, CSK30 6T, 31100-R53-A01, 31100-R53-A01RM, CSK39, 31100-5J2-A51, CSK76
Lester 11670
PIC# 290-6314, 290-6315, 290-3598, PIC Old 920-3598


Manufacture DENSO
Amperage Rating 135
Decoupled Or Clutch Pulley Yes
Design IR/IF
Fan Type Internal
Mfr Series HAIRPIN
Oe Manufacturer DENSO
Outside Pulley Diameter 66.5
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 4
Plug Orientation Rear
Pulley Belt Type Serpentine
Pulley Diameter 66.5
Pulley Groove Od 66.5
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11670RK-A
COVER 1 W015-116
6303-2RS C3 BEARING 1 W02X-11-1 54700
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514
BRUSH-5x7x15mm HP 2 W035-04A 38-8201x2
DCP PULLEY 6GRV65 1 W055-131B W055-131N 79909126
RECTIFIER 1 W065-217, W065-217A, TRN-7433, 77904146,
REGULATOR LIN2.0 1 W085-376 W085-376A, 80904648, IN4180
RETAINER SCREW 4x.18mm 4 W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
B+ INSULATOR 1 W115-222, 92909510A
BRUSH HOLDER SCREW-M4x14 4 W115-44
BEARING RETAINER-53mm OD 1 W115-51
BRUSH/RECT SCREW 4mm 1 W115-81 85-1205
REPAIR HARNESS 1 W145-43 9801501
BRUSH HOLDER 1 W155-24 74909206 39-8206
SLIP RING 1 W165-11 28-82854
PULLEY TOOL-DECOUPLER 17mm HEX 1 W19-08
PULLEY TOOL KIT-CLUTCH DECOUPL 1 W19-18
Frame, DE 76909242
Frame, SRE 75909282
