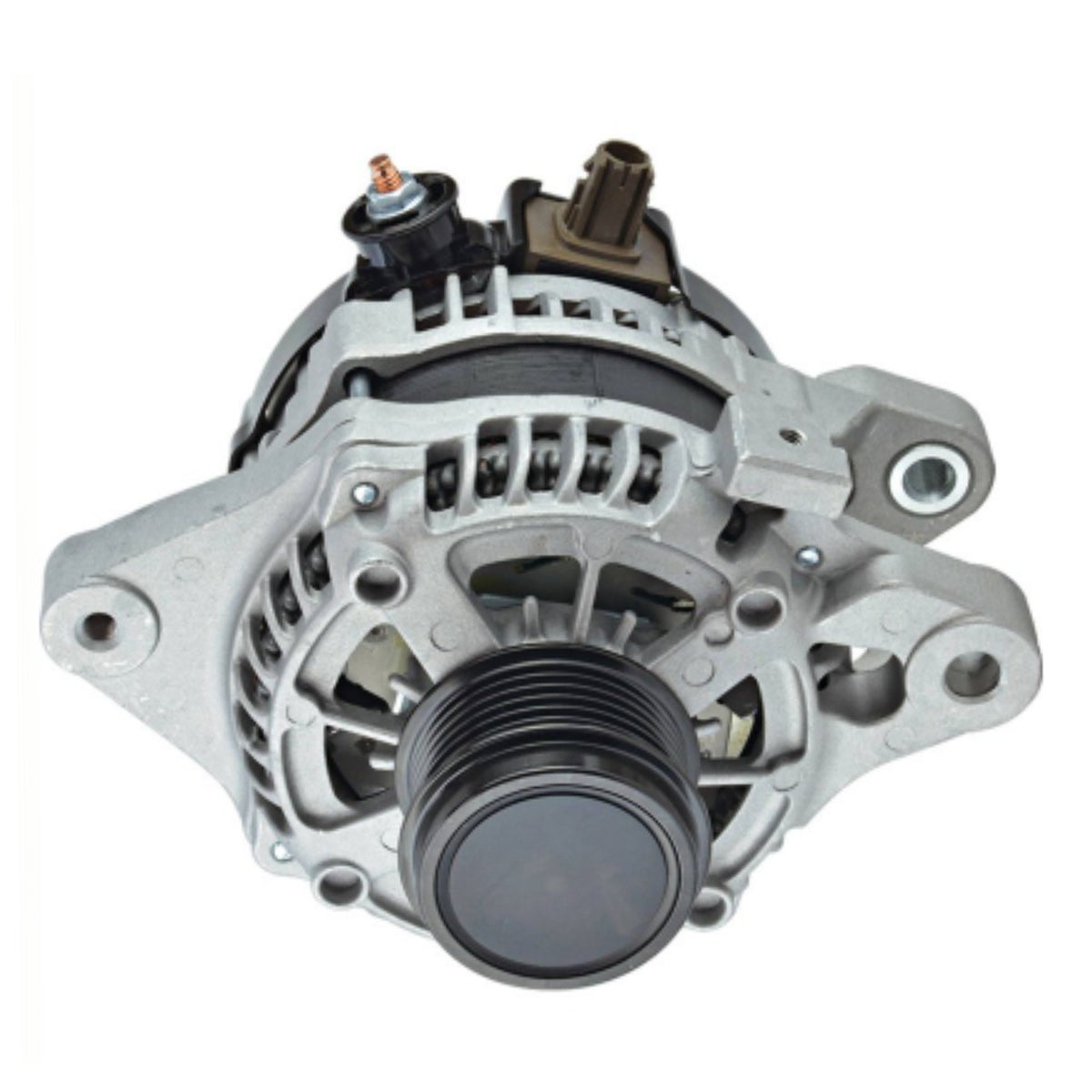

Alternator 2014-2019 Corolla LE Eco 2ZR-FAE with 125 Amp Denso - 11777

Toyota Corolla L4 1.8L LE Eco VIN P 2014-2019 with 125 Amp Denso
Make sure this kit is correct - for other options on 2014-2019 Corolla's = See 11776RK-A for 2ZR-FE with Denso, See 11693RK-A for 2ZR-FE with Valeo, See 11941RK-A for M20A-FKS

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL3386X (Reman)
DENSO 104211-331, 104211-3310, 104211-3311, 104211-3312, 104211-3313
DENSO Auto Parts 210-0885, 210-1246
Lester 11777
Toyota 27060-0T260

Specifications/ Attributes
Manufacture DENSO
Amperage Rating 125
Decoupled Or Clutch Pulley Yes
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 8
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Parts List
6202-2RS BEARING-15x35x11mm 1 53500 W02X-05-1
6303-2RS C3 BEARING 1 54700 W02X-11-1
Alternator Rebuild Kit for 2014-2019 Corolla 2ZR-FAE - 11777RK
Voltage Regulator for 2014-2019 Corolla 1.8, 2013-2018 RAV4 2.5L -W085-397 8090598 IN6373
Denso Brush Holder Assembly with Brushes (0216203020) - W155-24 74909206 39-8206
Slip Ring for Hairpin Denso Alternators 5.8mm ID x 14.36mm OD - W165-11 7190904B - 28-82854
Rectifier Diode Assembly Replacing Denso 0040, 021580-0040 -W065-285 77904151
Nut 10mm X 5mm X M6-1.0 with Including Attached Floating Washer - 9590001
Decoupler Clutch Pulley for Toyota Lexus Pulley 920906 6 Groove -W055-129N 79909106
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
Brush Holder Attaching Screw 4mm x 0.7 x 14mm L, 21mm OAL, Pan Head with Lock Washer W115-44
M4 -0.7 Rectifier Bridge Screw w115-81
ND BEARING RETAINER-53mm OD 1 W115-51
TOLERANCE RING-14486 HP 1 W115-250
RETAINER SCREW 4x.18mm 4 W115-205
INSULATOR 1 W115-173
