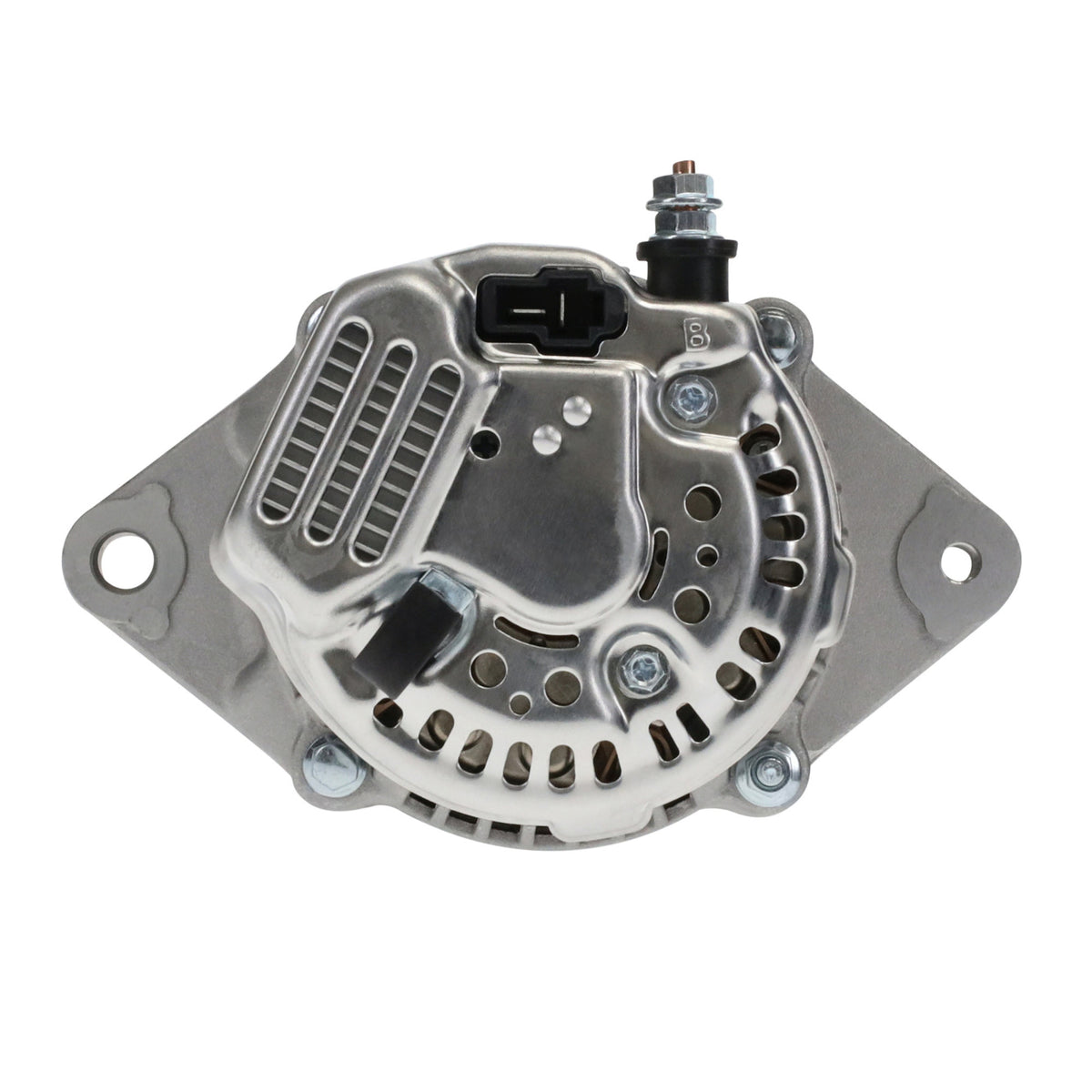

Alternator Kubota Tractor w/60 Amp Denso 101211-8520, -8521, -8522, -8523, 102211-8523 - 11903

Kubota Compact Utility Tractor
L5740HST Kubota V2403MTE2 59HP Dsl 2007-2008
Kubota Tractor - Compact
L5740 Kubota V2403MTE2 59HP Dsl 2007-2008

Alternator Manufacturer and Factory #s
Denso 101211-8520, 101211-8521, 101211-8522, 101211-8523, 102211-8523, 9761219-852 DAN2038
Farcom 112033
Kubota 16615-64015, 3A611-74010, 3A611-74011, 3A611-74012, 3A611-74013, 3A611-74014
Lester 11903
PIC# 290-5486
J&N 400-52302

Manufacture DENSO
Amperage Rating 60
Design IR/IF
Family BRUSHLESS
Oe Manufacturer DENSO
Plug Code 193
Pulley Type V1
Regulator Type Internal
Type Alternator
Voltage 12

Alternator Rebuild Kit 11903RK-A
DE HOUSING 1 021401-4360

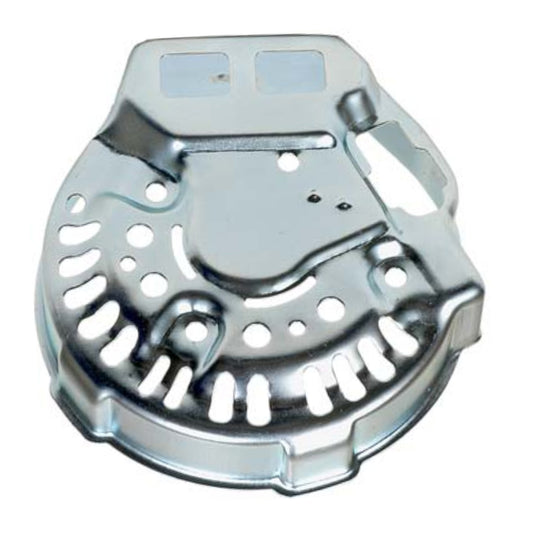

COVER-T-PLUG 88mm OD 1 W015-71
6202-2RS BEARING-15x35x11mm 1 W02X-05-1
6002DW BEARING-15x32x11mm 1 W02X-59-1
BRUSH-5x7x15mm STANDARD 2 W035-04
RECTIFIER 35mm B+ 1 W065-228 77904056
REGULATOR IG-L 1 W085-121 80904405
Plug 9801193
TERMINAL INSULATOR-SHORT 1 W115-13
RETAINER SCREW 4x.18mm 4 W115-205
REG SCREW-M4x0.7x25 2 W115-206
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER GROMMET-LATE 1 W115-22
NUT 6x1.0mm 10mm HEX 1 W115-39
BEARING RETAINER-GEO,SUZUKI 1 W115-55
BRUSH/RECT SCREW 4mm 1 W115-81
BRUSH HOLDER SET 1 W155-04
BRUSH HOLDER 1 W155-04B
