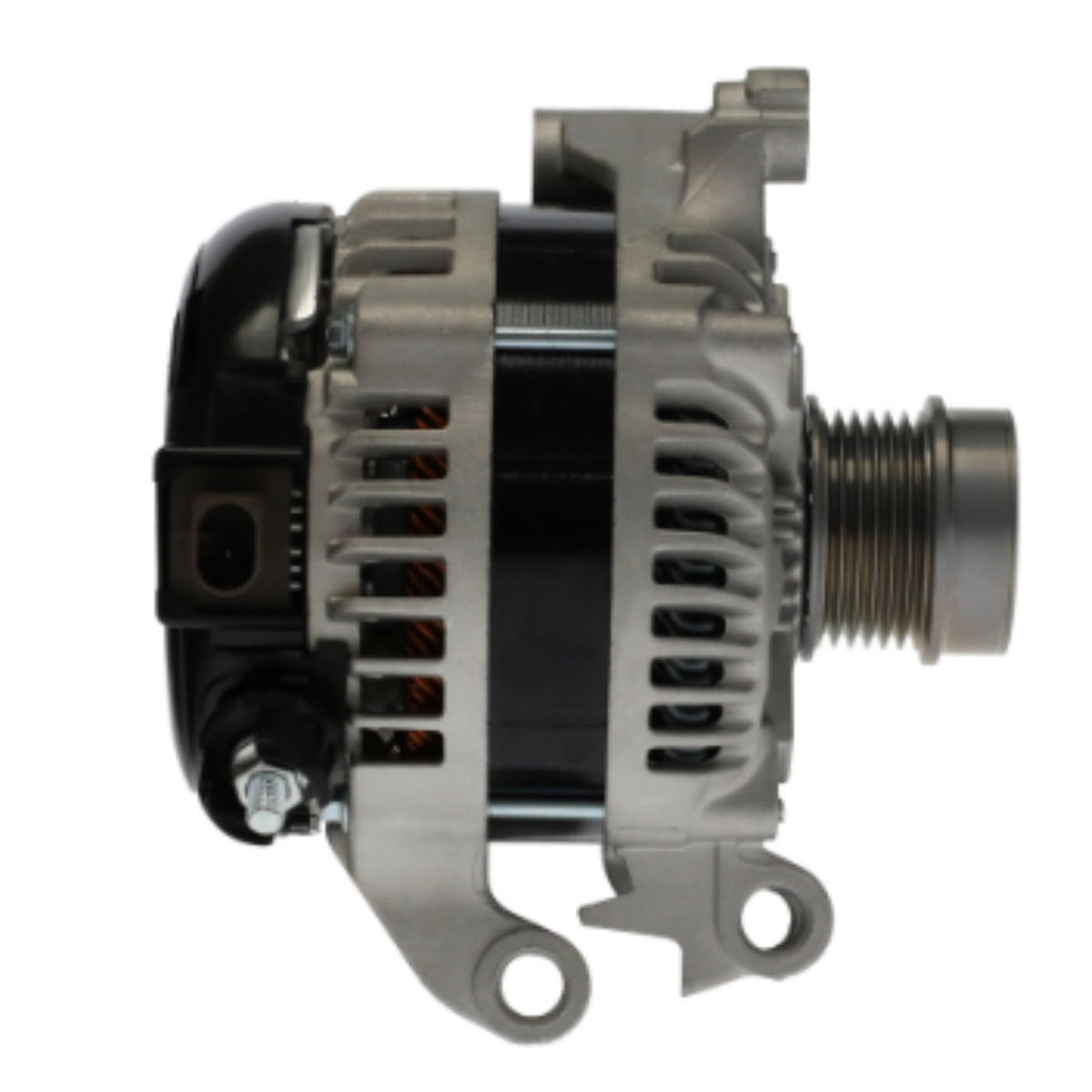

Alternator 2013-2019 Escape 1.5L 1.6L, 2014-2016 Transit Connect 1.6L - 12884

Ford Escape L4 1.5L 1499CC 2017-2019 175 Amp
Ford Escape L4 1.6L 1596CC 2013-2016 175 Amp
Ford Transit Connect L4 1.6L 1596CC 2014-2016 175 Amp

Alternator Manufacturer and Factory #s
Bosch Aftermarket AL7683X (Reman)
DENSO 104210-654, 104210-6540, 104210-6541, TN1042-106541, 210-0604, 210-1098
Ford CJ5T-10300-DB, CJ5T-10300-GA, CJ5Z-10346-A, CJ5Z-10346-F
Lester 12884
Motorcraft GL-8667, GL-8785

Specifications and Attributes
Manufacture DENSO
Amperage Rating 175
Decoupled Or Clutch Pulley No
Family 100
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Stator Type Hairpin
Voltage 12

Alternator Parts List
6202 D2RS BEARING-15x35x13mm 1 W02X-20-1
333 2RS BEARING-17x52x16mm 1 W02X-49-1
BRUSH-5x7x15mm 1 W035-04A
DCP PULLEY 6GRV52 OE 1 W055-139N
RECTIFIER 1 W065-258
Regulator FORD LIN 1 W085-387 IN3570
LITENS DECOUPLER CAP-47.6mm 1 W112-30N
RETAINER SCREW-M4.5x18L 1 W115-204
ROTOR BEARING COVER-TOP 1 W115-208
B+ INSULATOR FORD 1 W115-237
BRUSH HOLDER SCREW-M4x14 1 W115-44
WAVE WASHER RETAINING RING 1 W115-45
BEARING RETAINER-61mm OD 1 W115-54
BRUSH/RECT SCREW 4mm 1 W115-81
BRUSH HOLDER 1 W155-24
SLIP RING-11032 1 W165-11
