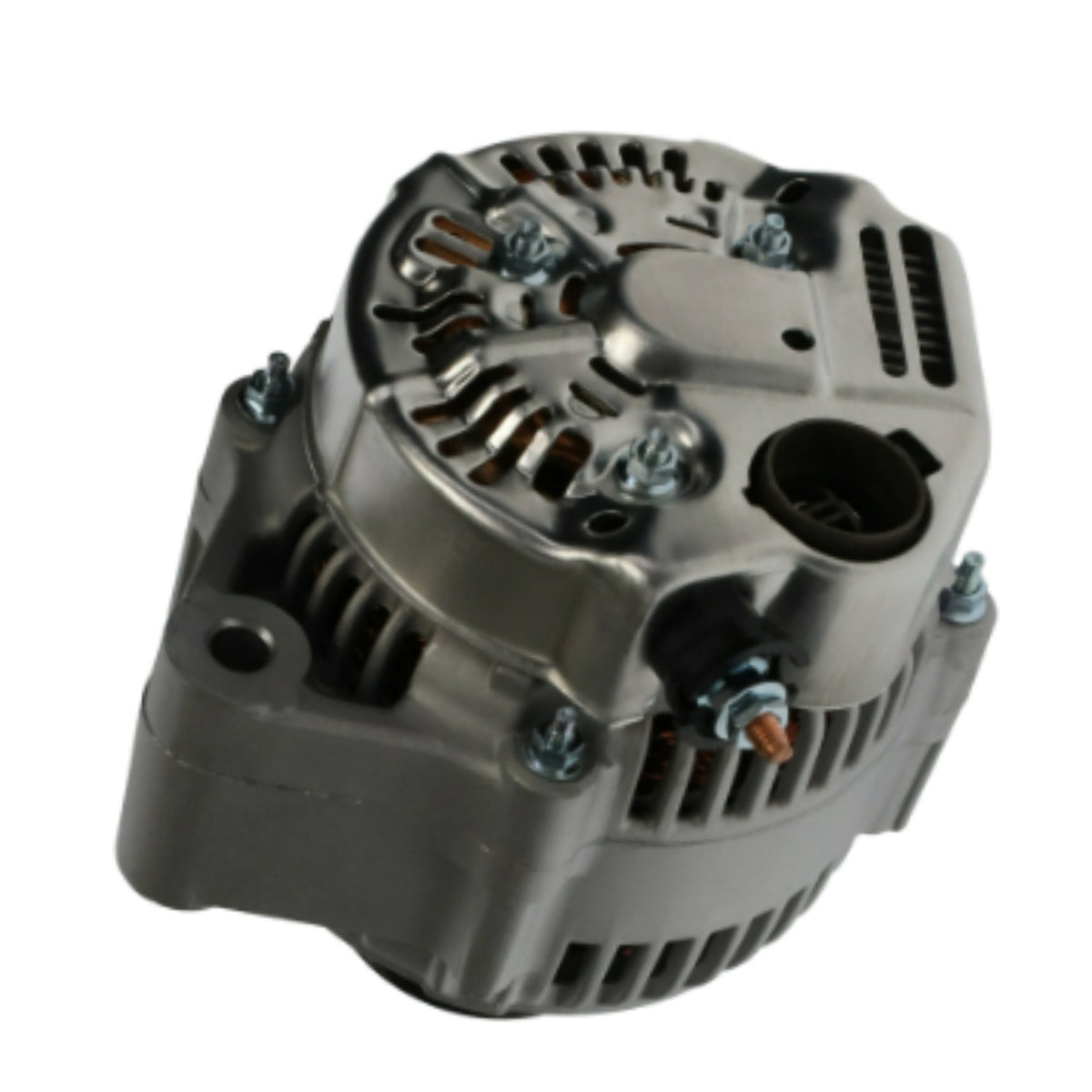

Alternator 1989-1992 Cressida Supra 3.0L 100211-8010, 100211-8050, 100211-8051 - 13278

Toyota Cressida L6 3.0L 2954cc 1989-1992
Toyota Supra L6 3.0L 2954cc w/Turbo 1989-1992
Toyota Supra L6 3.0L 2954cc wo/Turbo 1989-1992 A/T

Alternator Manufacturer and Factory #s
ACDelco 321-1364, 334-1881
Beck Arnley Remanufactured 186-0459
Bosch Remanufactured AL373X
Delphi RM4001
Denso 100211-8010, 100211-8050, 100211-8051
DENSO Auto Parts 210-0158
Excel 10471
Lester 13278
Lucas Electrical Europe LRA02641
Toyota 27060-42030, 27060-42030-84, 27060-74050
PIC# 290-252

Manufacture DENSO
Amperage Rating 80
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 280
Plug Type 280
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 5
Pulley Type S5
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13278RK-A
COVER 1 W015-06 849909052

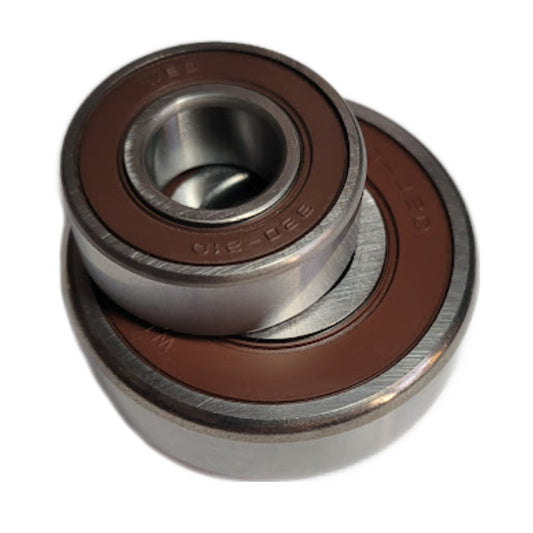

6202 D2RS BEARING-15x35x13mm 1 W02X-20-1 53514
333 2RS BEARING-17x52x16mm 1 W02X-49-1 55222
PULLEY 5GRV 55mm OD 1 W055-72 79909020

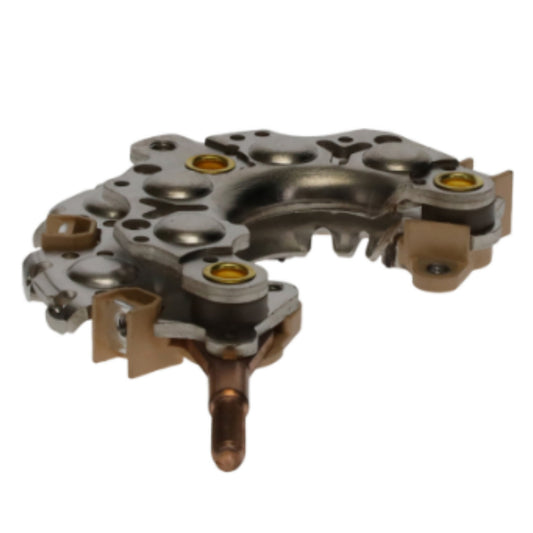

RECT-TOYOTA 103mm 6mm B+ 1 W065-89 77904014

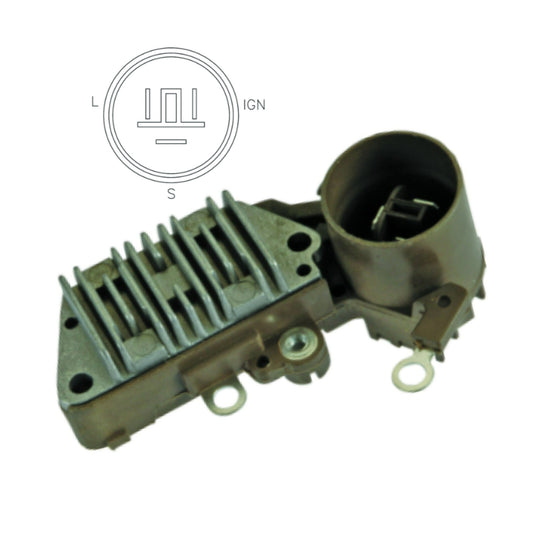

INT REG TOYOTA SIGL 1 W085-146 80904388
Plug 9801280
STATOR-ND INT FAN 90A CHRYSLER 1 W105-13 72908502

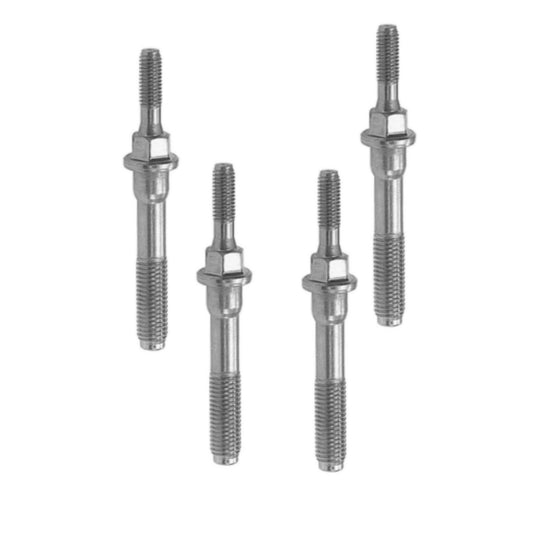

INT FAN THRU BOLT 4 W115-14 96909009

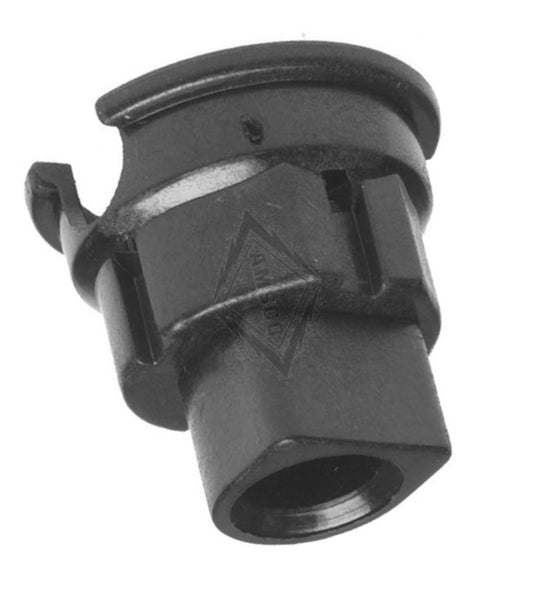

B+INSULATOR- TOYOTA 1 W115-140 92909003
BRG RETAINER SCREW-M4.5x18L 4 W115-204
INT FAN REG SCREW-M4x0.7x25 2 W115-206
Screw 96909012 96909020
ROTOR BEARING SPACER-FLAT 1 W115-207
ROTOR BEARING COVER-TOP 1 W115-208
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
RECT GROUND STUD-INT FAN 3 W115-27
INSULATOR STATOR LEAD-GRAY 4 W115-36

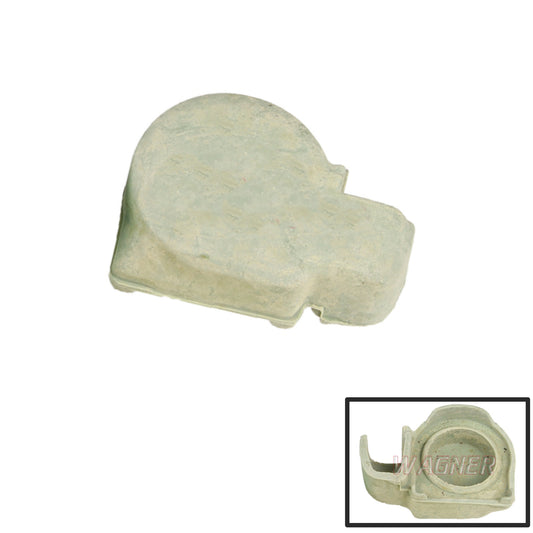

BRUSH HOLDER INSULATOR SEAL 1 W115-37
NUT 6x1.0mm 10mm HEX 1 W115-39
BRUSH HOLDER COVER RING 1 W115-41
WAVE WASHER RETAINING RING 1 W115-45 98909030
BEARING RETAINER-61mm OD 1 W115-54
RECT GROUND STRAP-CHRYSLER 1 W115-59
BRUSH/RECT SCREW 4mm 3 W115-81
BRUSH/RECT SCREW 4mm 4 W115-81
BEARING RETAINER- SRE 1 W115-82
BRG RETAINER GASKET-INT FAN 1 W115-83
BRUSH HOLDER SEAL- 1 W115-96
WIRE HARNESS-INT FAN 3 PIN 1 W145-09
BRUSH HOLDER-GM,HONDA 1 W155-10
SLIP RING W/LEAD 1 W165-00L
SLIP RING COLLAR-(1PC) 1 W165-04
Gasket 91904706 91904708
Grommet 91904711
Nut 95001505
Repair Kit 69901113
Retainer, Bearing 8590900
Rotor 70901210
Seal 91904713
Stud 96909003

This is the 80A Version of the 14849. This Unit is an Exact Duplicate of the 13407 Used on the Camry, Except That the 13278 Uses a NDenso 126000-0610 Regulator (No "Load Response Control") and the 13407 Uses the NDenso 126000-1260 (With "Load Response Control
