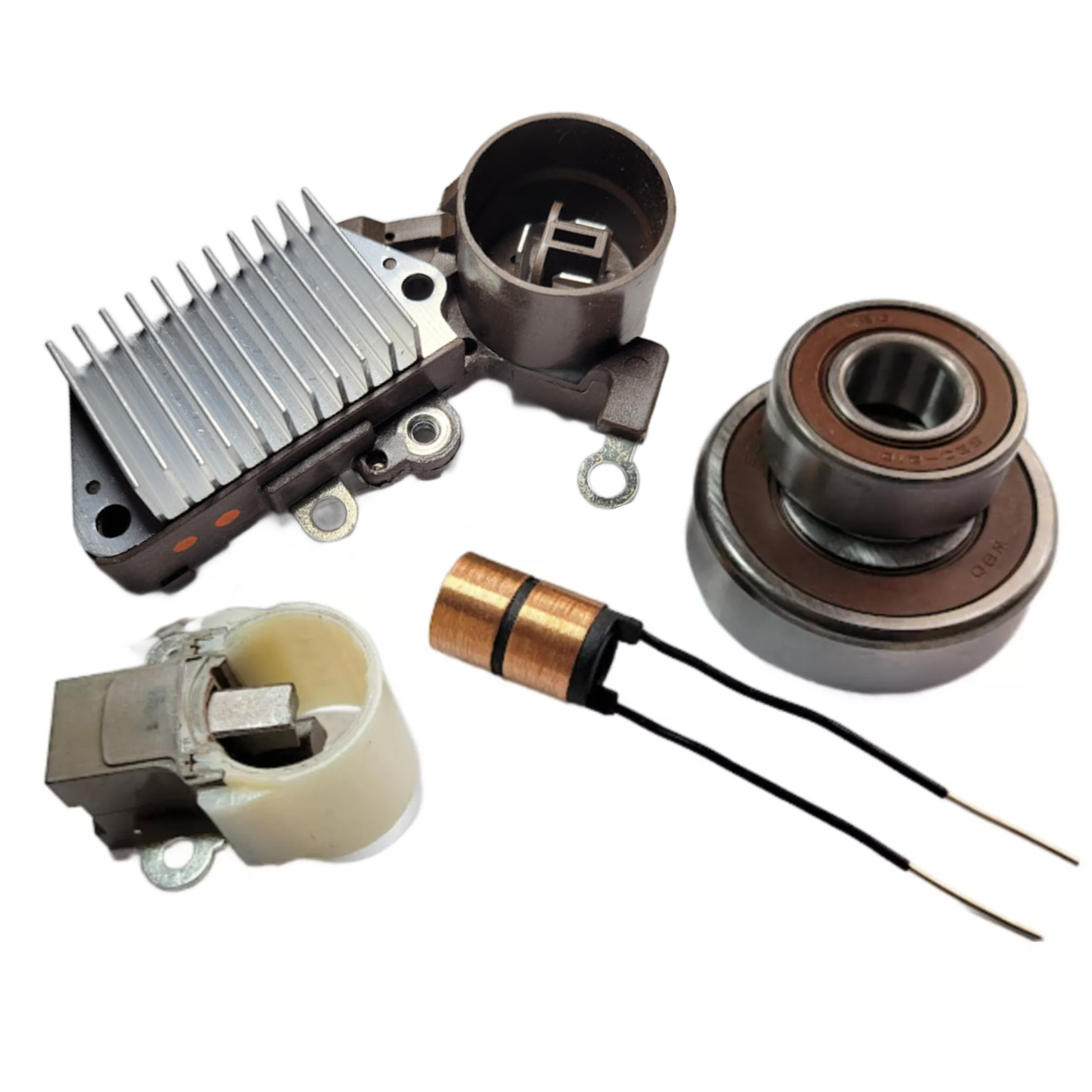

Alternator Rebuild Kit for 1989-1992 Cressida Supra 3.0L 100211-8010, 100211-8050, 100211-8051 - 13278RK-A

Toyota Cressida L6 3.0L 2954cc 1989-1992
Toyota Supra L6 3.0L 2954cc w/Turbo 1989-1992
Toyota Supra L6 3.0L 2954cc wo/Turbo 1989-1992 A/T

Alternator Manufacturer and Factory #s
ACDelco    321-1364, 334-1881
Beck Arnley Remanufactured 186-0459
Bosch Remanufactured AL373X
Delphi RM4001
Denso 100211-8010, 100211-8050, 100211-8051
DENSO Auto Parts 210-0158
Excel 10471
Lester 13278
Lucas Electrical Europe    LRA02641
Toyota 27060-42030, 27060-42030-84, 27060-74050
PIC# 290-252

• Voltage Regulator - Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage Set Point, 5 sec. LRC, for Denso Alternators, 63.5mm Mounting Length, Standard lamp function - no output., Ignition activated // Replaces Denso 126000-0610, 126000-1440, 126000-1441, Toyota 27700-16010, 27700-50010, 27700-74010, Other: W085-146, GNR-N016, 216-036, MFVR02060, MFVR02062, VRH2005-33A, VRH2005-33A, VRH2005-33DG, 230-52073, 80904388 -IN438 IN434

• Drive End Bearing 55222 17x52x16mm - 10-3042-4W

• Rotor Bearing 53514 15x35x13mm - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-2530, 021620-2720 - 39-8203

• Slip Ring Commutator 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001 - 28-82853
  * additional parts list https://diyalternator.com/collections/denso-13278
