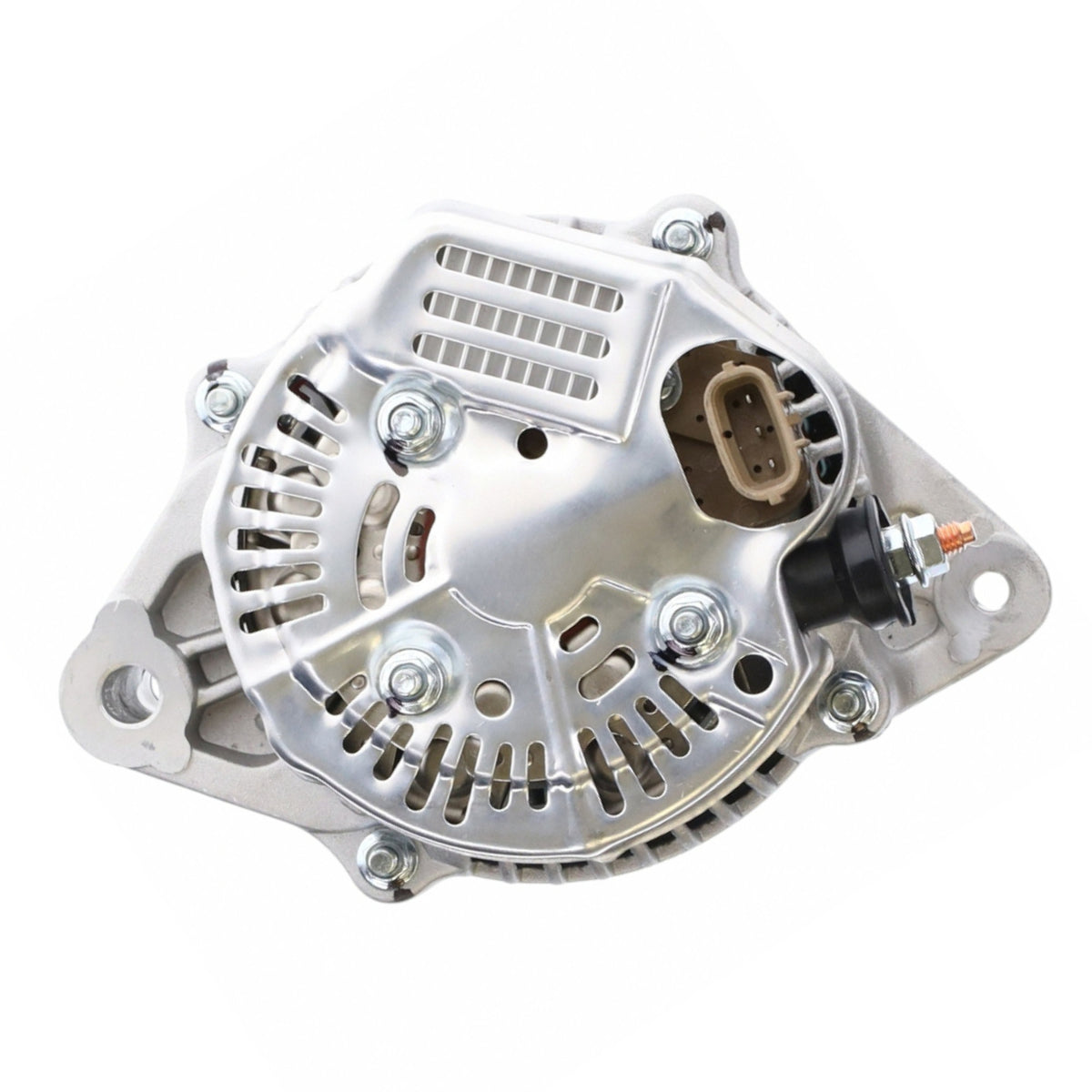

Alternator 1993-1995 Toyota Pickup 4Runner 2.4L 60 Amp M/T - 13492

Toyota Truck
4Runner L4 2.4L 2366cc 1993-1995 60 Amp Manual Transmission
Pickup L4 2.4L 2366cc 1993-1995 60 Amp Manual Transmission

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-0632
Bosch Remanufactured AL3244X
Denso 101211-0190
Excel 10291
Lester 13492
Toyota 27060-35150, 27060-35150-84

Manufacture DENSO
Amperage Rating 60
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock 12
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 312
Plug Type 312
Pulley Belt Type V-belt
Pulley Diameter 67
Pulley Groove Od 67
Pulley Groove Quantity 1
Pulley Type V1
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13492RK-A
ND RECT COVER W015-14 84909016
949100-3360 BEARING 54600 W02X-19-1 10-3022-4
6202 D2RS BEARING-15x35x13mm 53514 W02X-20-1
BRUSH-5x7x15mm STANDARD W035-04
DISH DIODE-NEG 35A 400V 8.4mm W04X-59
DISH DIODE-POS 35A 400V 8.4mm W04X-60
PULLEY 1GRV 67mm OD W055-30 79909002
RECTIFIER 100mm OD W065-15 77904000
Insulator 92909009
REGULATOR S-IG-L W085-192 80904416
STATOR-N\D INT FAN 118mm 70AMP W105-05
PULLEY NUT-14x1.5mm 7mm W110-29
STATOR LEAD BOOT ORANGE W115-02
BRG RETAINER SCREW 4x.18mm W115-205
REG SCREW-M4x0.7x25 W115-206
ROTOR BEARING SPACER-FLAT W115-207
ROTOR BEARING COVER-TOP W115-208
BRUSH HOLDER GROMMET-LATE W115-22
RECT GROUND STUD-INT FAN W115-27
NUT 6x1.0mm 10mm HEX W115-39
BATTERY INSULATOR-13240 W115-40
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-53mm OD W115-51
BRUSH/RECT SCREW 4mm W115-81
BEARING RETAINER SRE W115-82 8590901
DE FRAME TOYOTA W135-83 76909207
Frame SRE 75909204
WIRE REPAIR HARNESS-OVAL PLUG W145-36 9801312
BRUSH HOLDER W155-04B 74909000 39-8200
INT FAN SLIP RING W/LEAD W165-00L
Thru Bolt 96909009
Screw 96909016 96909063
Nut 95001451 95001460
Rotor 7090998
Grommet 91904714
