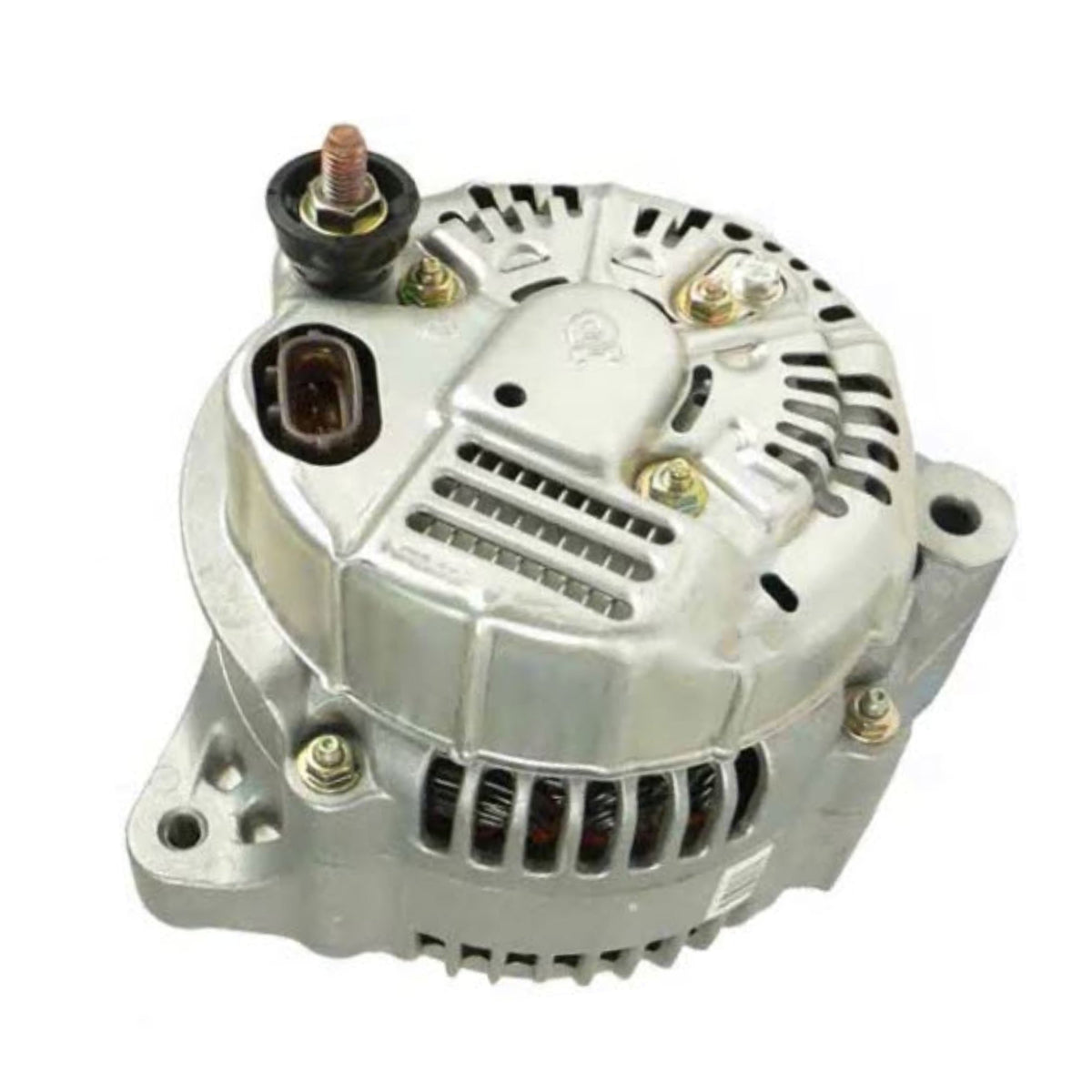

Alternator 1993-1995 Toyota MR2 90 Amp 101211-7060, -7160 - 13502

Toyota MR2 L4 2.0L 1993-1995 From 11/1993; 90 Amp.
Toyota MR2 L4 2.2L 1993-1995 From 11/1993; 90 Amp.

Alternator Manufacturer and Factory #s
ACDelco 334-1192
Bosch Aftermarket AL3278N (New), AL3278X (Reman)
Bosch Service Europe 0-986-UN0-015, 0-986-UR0-015
DENSO 101211-7060, 101211-7160
HC CARGO 111964
Industry 13502
Lester 13502
Lucas (Europe) LRA02004
Lucas Reman A8783
Toyota 27060-74440, 27060-74440-84, 27060-74500, 27060-74500-84

Manufacture DENSO
Amperage Rating 90
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 312
Plug Type 312
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 4
Pulley Type S4
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13502RK-A
RECT COVER-13502 TOYOTA 1 W015-23

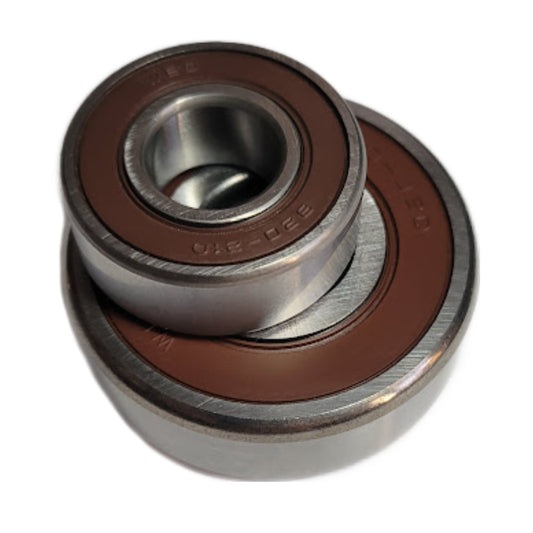

6202 D2RS BEARING-15x35x13mm W02X-20-1
333 2RS BEARING-17x52x16mm PFI W02X-49-1
ALT BRUSH-5x7x15mm STANDARD W035-04
DISH DIODE-POS 35A 400V 9.7mm W04X-18
DISH DIODE-NEG 35A 400A 9.7mm W04X-19
PULLEY- 4 GRV 55mm OD 1 W055-53A

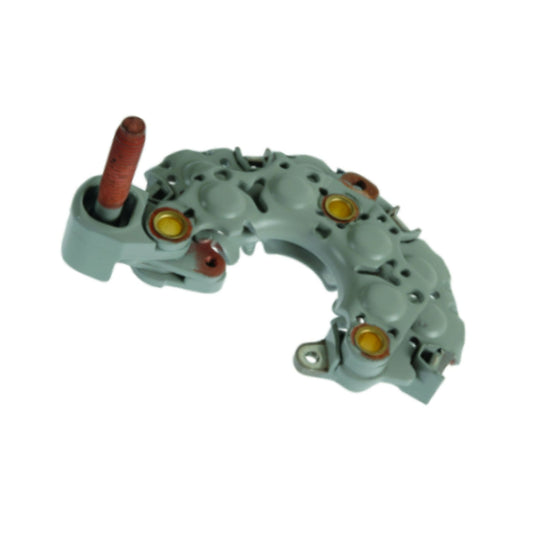

RECT- 110mm M8+ 1 W065-129

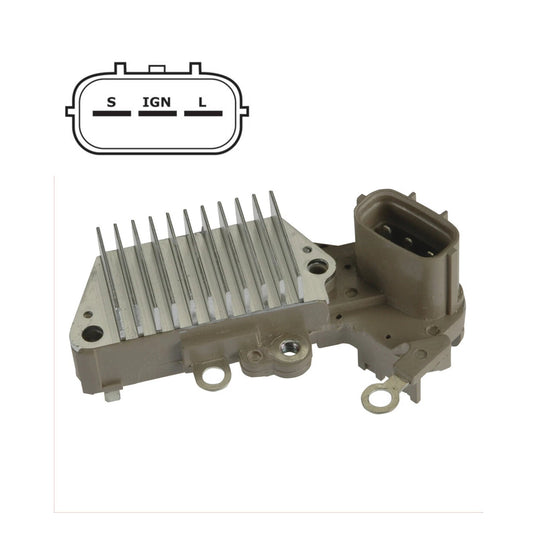

REG- TOYOTA SIGL W085-115, W085-115A, T7439
REG INSERT-S-IG-L 12SEC LRC W085-250
STATOR-CHRYSLER 120A W105-14
BRG RETAINER SCREW-M4.5x18L W115-204
BRUSH HOLDER COVER RING W115-41
BEARING RETAINER-61mm OD W115-54
B+ TERMINAL INSULATOR-13524 1 W115-93

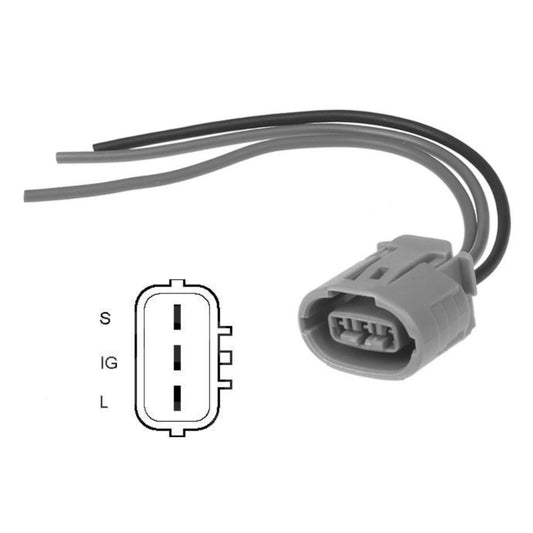

WIRE REPAIR HARNESS-OVAL PLUG W145-36
BRUSH HOLDER-GM,HONDA W155-10
SLIP RING W/LEAD W165-00L
SLIP RING COLLAR-(1PC) W165-04
