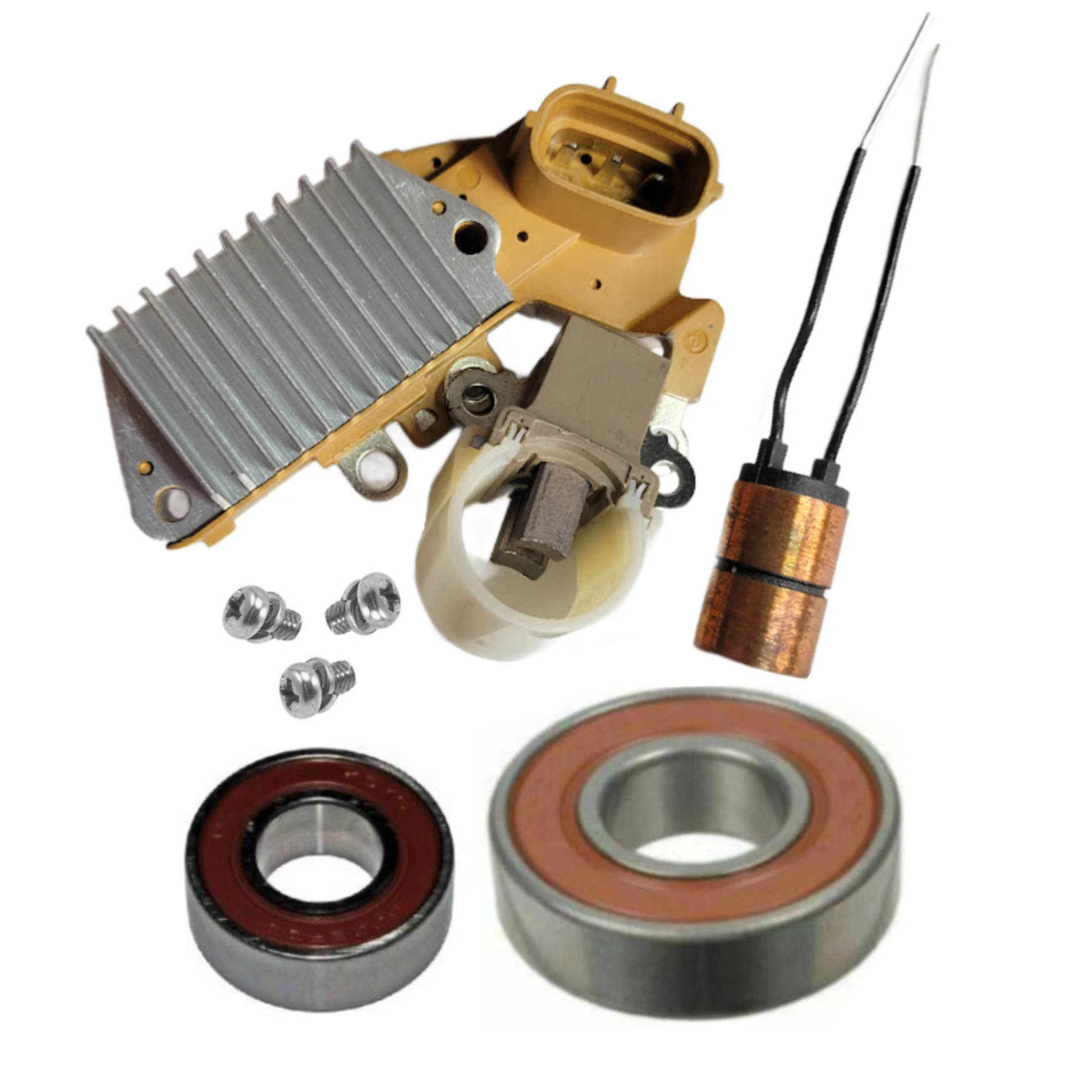

Alternator Rebuild Kit for 1993-1995 Toyota MR2 90 Amp 101211-7060, -7160 - 13502RK-A

Toyota MR2 L4 2.0L 1993-1995 From 11/1993; 90 Amp
Toyota MR2 L4 2.2L 1993-1995 From 11/1993; 90 Amp

Alternator Manufacturer and Factory #s
ACDelco    334-1192
Bosch Aftermarket AL3278N (New), AL3278X (Reman)
Bosch Service Europe 0-986-UN0-015, 0-986-UR0-015
DENSO 101211-7060, 101211-7160
HC CARGO 111964
Industry 13502
Lester 13502
Lucas (Europe)    LRA02004
Lucas Reman    A8783
Toyota 27060-74440, 27060-74440-84, 27060-74500, 27060-74500-84

• Voltage Regulator Replaces: Denso 126000-1580, 126000-1640, 126000-1660, 126000-1670, 126000-2820, 126000-7110, GM 94854171, 94857219, Toyota 27700-35040, 27700-46050, 27700-74030, 27700-74040, 27700-78700-71, Other: 80904416 80904620, 1K-60106, T7439, W085-115, 216-048, ND-435, 230-52070, 230-52191, MFVR02040, MFVR02042, VRH2005-31A :: Specifications: 12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage Set Point, w/ LRC, 63.5mm Mounting Length, Standard lamp function - no output - IN439

• Drive End Bearing 17x52x16mm 55222 Ref# 949100-3330, 949100-4370, 949100-5010 - 10-3042-4W

• Rotor Bearing 15x35x13mm 53514 Ref# 949100-2790, 949100-3980, 949100-4440 - 10-2021-4W

• Brush Holder Assembly with Brushes Ref# 021620-2530, 021620-2720 - 39-8203

• Attaching Screw x3, Rectifier Brush Holder Screw M4 x 0.7 x 5.7mm L for Denso 949006-5460, 949007-3370, 949007-3930, 949007-6280 - 96909016, 85-1205 x3
• Slip Ring Commutator 8.9 ID 14.6 OD 23.9 Length 7190904A, 313-52001 - 28-82853
  Additional parts https://diyalternator.com/collections/denso-13502
