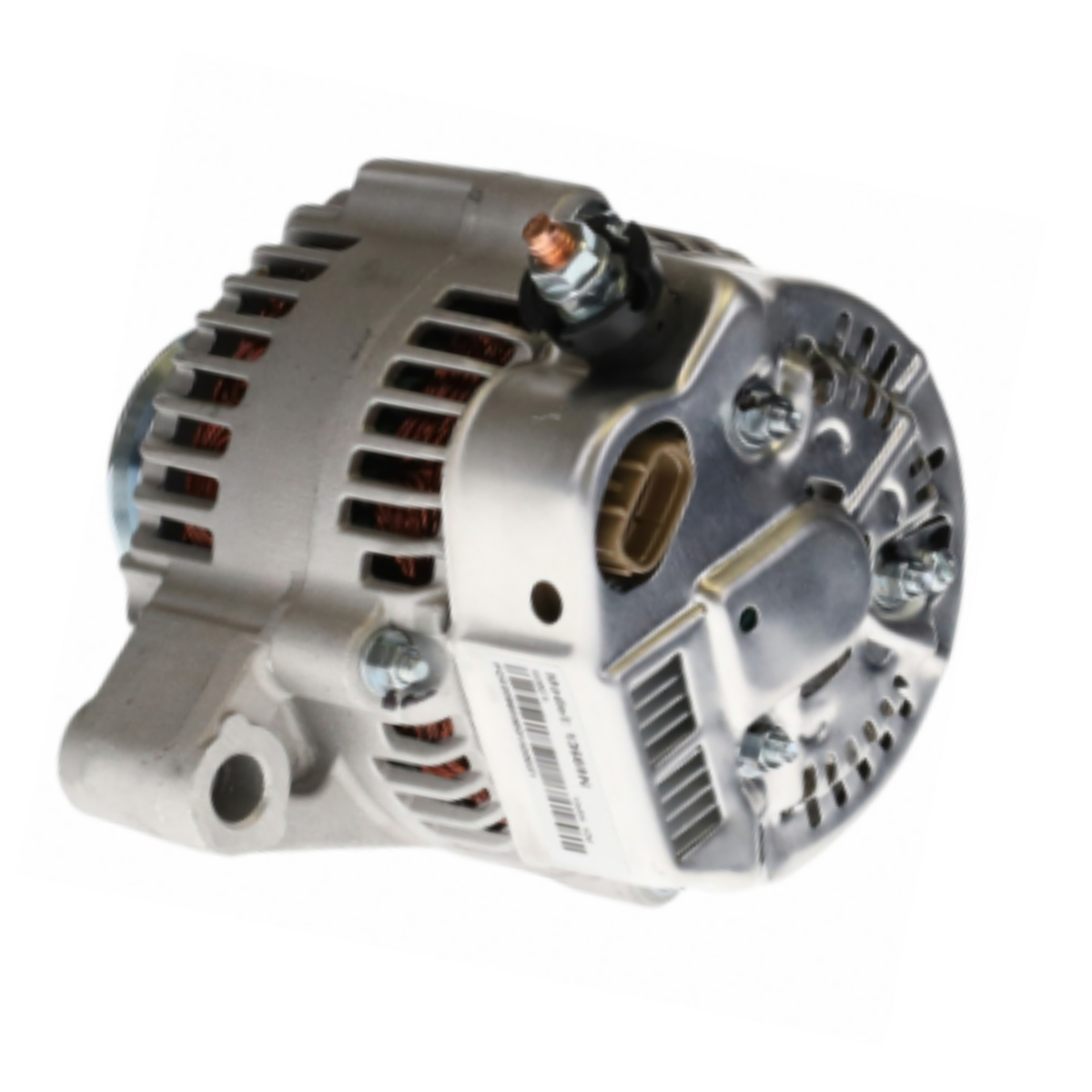

Alternator 1995-1997 Lexus LS400 27060-50190 101211-9150 - 13669

Lexus LS400 V8 4.0L 1995-1997

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL3288X
Delphi RM4083
Denso 101211-9150, 9651219-915
Excel 10488
Hollander 58593
Lexus 27060-50190, 27060-50190-84
Other 13669


Manufacture DENSO
Amperage Rating 80
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 312
Plug Type 312
Pulley Belt Type Serpentine
Pulley Diameter 57
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 13669RK-A
COVER- TOYOTA 1 W015-10

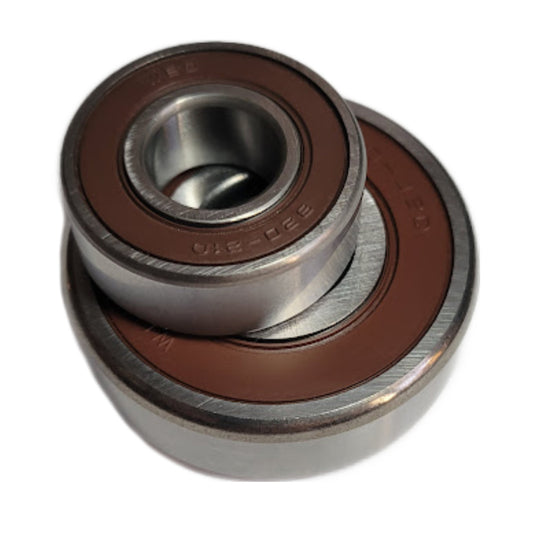

6202 D2RS BEARING-15x35x13mm W02X-20-1
333 2RS BEARING-17x52x16mm W02X-49-1
ALT BRUSH-5x7x15mm STANDARD W035-04
DISH DIODE-POS 35A 400V 9.7mm W04X-18
DISH DIODE-NEG 35A 400A 9.7mm W04X-19

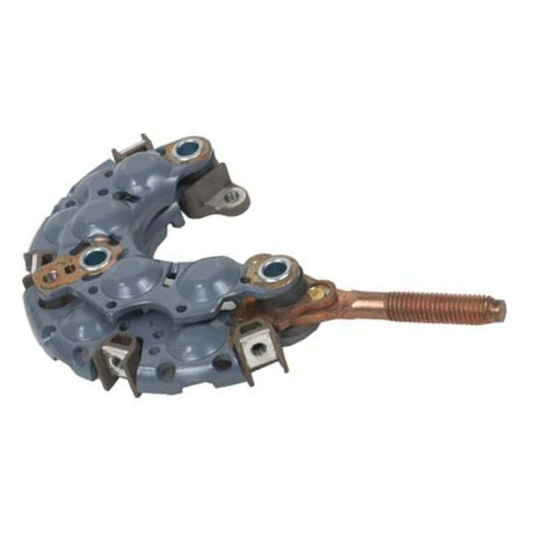

RECT LEXUS 100A M8 B+ W065-124
INT REG TOYOTA S-IG-L W085-188 T72017
STATOR-ND INT FAN 90A 1 W105-13
PULLEY NUT-14x1.5mm 7mm W110-29
BRG RETAINER SCREW-M4.5x18L W115-204
INT FAN REG SCREW-M4x0.7x25 W115-206
ROTOR BEARING SPACER-FLAT W115-207
ROTOR BEARING COVER-TOP W115-208
INSULATOR STATOR LEAD-GRAY W115-36
BRUSH HOLDER INSULATOR SEAL W115-37
BRUSH HOLDER COVER RING W115-41
WAVE WASHER RETAINING RING W115-45
BEARING RETAINER-61mm OD W115-54
RECT GROUND STRAP W115-59
BRUSH/RECT SCREW 4mm W115-81
BRUSH/RECT SCREW 4mm W115-81

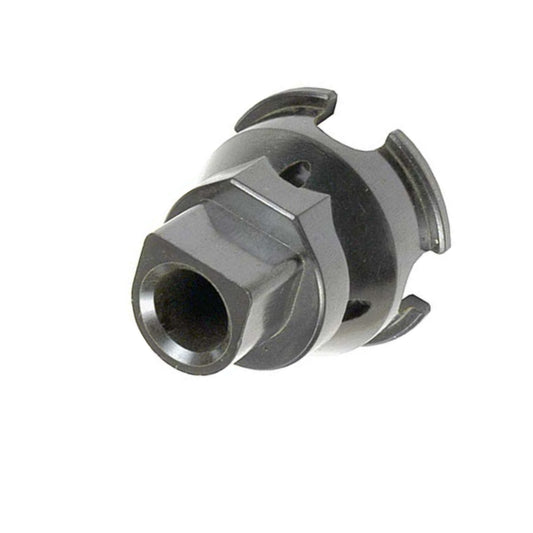

B+ TERMINAL INSULATOR W115-92
BRUSH HOLDER SEAL W115-96
WIRE REPAIR HARNESS-OVAL PLUG W145-36
BRUSH HOLDER W155-10
SLIP RING W/LEAD W165-00L
SLIP RING COLLAR-(1PC) W165-04
