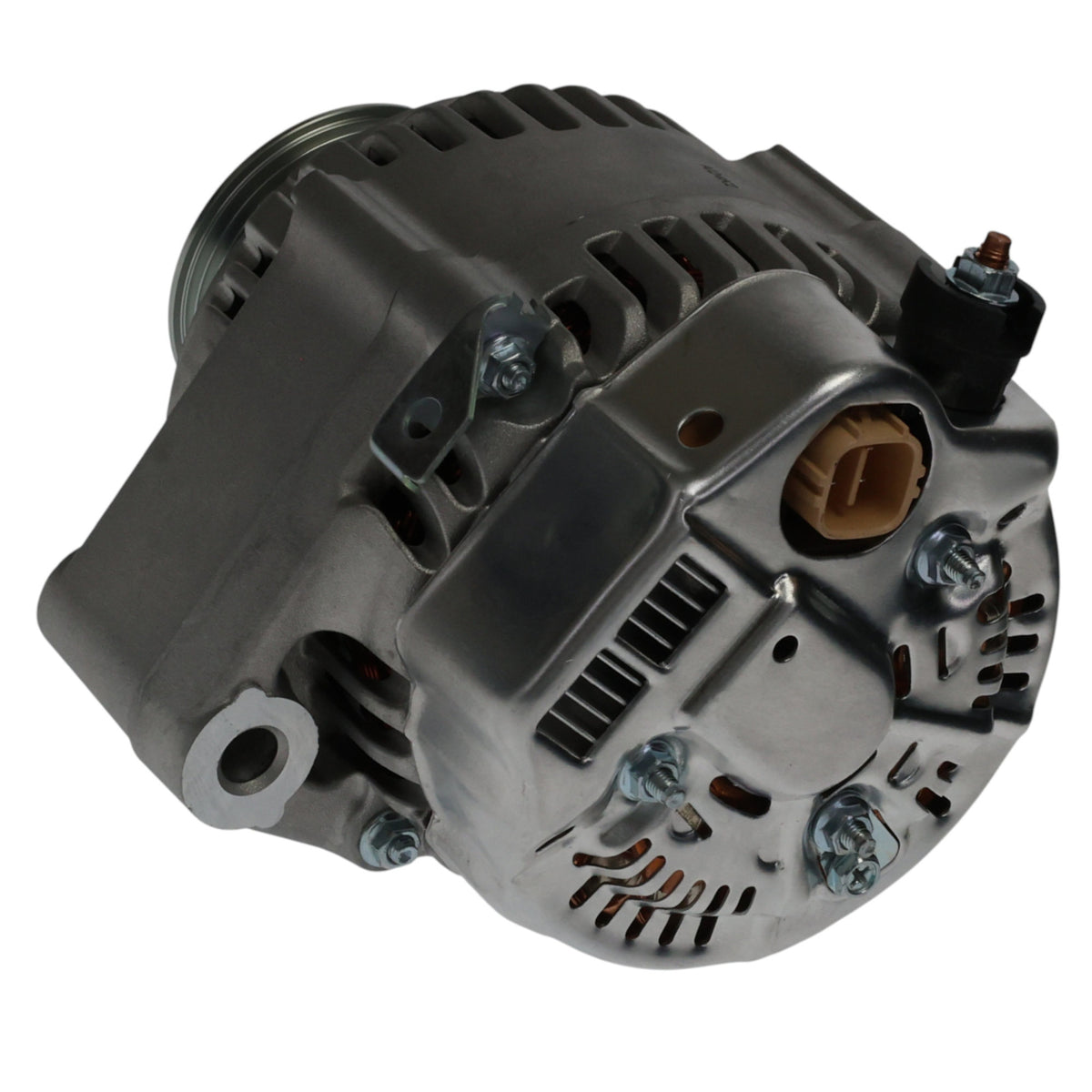

Alternator 1998-1999 Acura CL, 1998-2002 Accord 2.3L 102211-1010, 101211-9990 - 13767

Acura CL L4 2.3L 1998-1999
Honda Accord L4 2.3L 1998-2002

Alternator Manufactureer and Factory #s
ACDelco 334-1318
Acura 06311-PAA-506RM, 31100-PAA-L71RM
Arrowhead AND0145
Bosch Aftermarket AL1284X (Reman)
Bosch Service Europe 0-986-UR0-842
DENSO 102211-101, 102211-1010, 101211-9990, 9761219-999
DENSO Auto Parts 210-0192, 210-0193
Honda 31100-PAA-A010M, 31100-PAA-L71, 31100-PAA-L710, CJV01, 06311-PAA-505RM, 31100-PAA-A01, 31100-PAA-A01RM
Lester 13767
HC CARGO 113571
J&N 400-52038
PIC Picture ID 290-5018 290-5019
Wilson 90-29-5335

Manufacture DENSO
Amperage Rating 80
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
OEM Manufacturer DENSO
Plug Clock 10
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Plug Code 296
Plug Type 296
Pulley Belt Type Serpentine
Pulley Diameter 65
Pulley Groove Od 65
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Counterclockwise (Left)
Type Alternator
Voltage 12

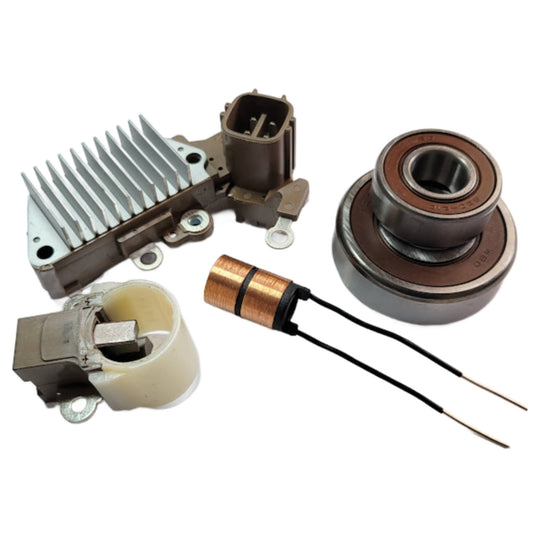

Alternator Rebuild Kit 13767RK-A
COVER W015-32 84909025
6202 D2RS BEARING-15x35x13mm W02X-20-1 53514
333 2RS BEARING-17x52x16mm W02X-49-1 55222
BRUSH-5x7x15mm STANDARD W035-04
DISH DIODE-POS 35A 400V 9.7mm W04X-18
DISH DIODE-NEG 35A 400A 9.7mm W04X-19
PULLEY 6GRV 65mm OD W055-27 79909013A
RECTIFIER 103mm 6mm B+ W065-89 77904014
REGULATOR CIGLFR W085-174 T7445 IN445 80904424
REG INSERT-C-IG-L-FR W085-253
STATOR W105-13 72908502
PULLEY NUT-14x1.5mm 7mm W110-29
THRU BOLT W115-14 96909009
BRG RETAINER SCREW-M4.5x18L W115-204
REG SCREW-M4x0.7x25 W115-206
ROTOR BEARING SPACER-FLAT W115-207
BEARING COVER-TOP W115-208
INSULATOR STATOR LEAD-GRAY W115-36
BRUSH HOLDER INSULATOR SEAL W115-37
BRUSH HOLDER COVER RING W115-41
INSULATOR W115-48 92909013
BEARING RETAINER-61mm OD W115-54
RECT GROUND STRAP-CHRYSLER W115-59
BRUSH/RECT SCREW 4mm W115-81
BRUSH HOLDER SEAL W115-96
BRUSH HOLDER-GM,HONDA W155-10 74909203
SLIP RING W/LEAD W165-00L 7190904A 28-82853
Connector 99901012
Cover or Shield 92909043
Gasket 91904708
Grommet 91904711
Nut 95001451 95001505 9590001
Plug 9801296
Repair Kit, 69901119
Retainer, Bearing 8590900
Rotor 70901210
Screw 96909012 96909016 96909063 96909065
Seal 91904713
