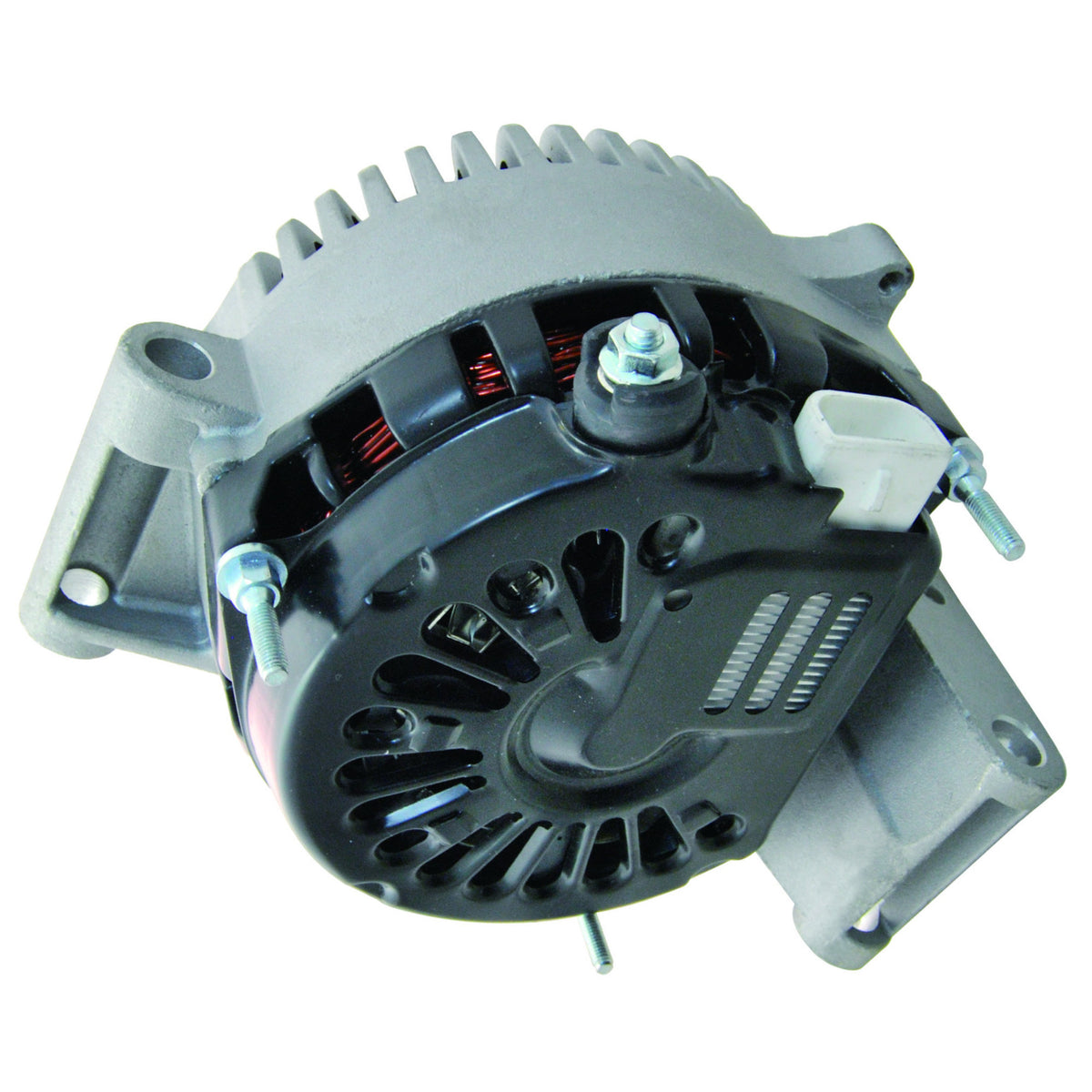

Alternator 2.3L Escape Tribute Mariner 130 Amp 4G 5L8T-LA, 5L8T-LC, 6L8T-BB - 8405

Ford Escape L4 2.3L 2005-2007 A/T 130 Amp 4G
Mazda Tribute L4 2.3L 2005-2006 A/T 130 Amp 4G
Mercury Mariner L4 2.3L 2005-2007 A/T 130 Amp 4G

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL7624X
Excel 8496
Ford 5L8T-10300-LA, 5L8T-10300-LC, 5L8Z-10346-LA, 6L8T-10300-BB, 6L8Z-10346-AARM, 6L8Z-10346-BB, 6L8Z-10346-BBRM1, 6L8Z-10346-BCRM, 6L8Z-10346-LA, 6L8Z-10V346-BCRM, 5L8T-LA, 5L8T-LC, 6L8T-BB
Hollander 1025
Lester 8405 / PIC# 250-421
Mazda L3H6-18-300A, ZZC1-18-300A, ZZC1-18-300D
MFR Series - Family Type 4G
Motorcraft GL-584, GL-681, GL-681-RM, GL-8809-RM, GLV-8734-RM, NGL8405N
Visteon JH, JT

Manufacture Ford
Amperage Rating 130
B+ Term M6-1.0
B+ Term M6x1.00
Decoupled Or Clutch Pulley No
Family 4G
Fan Type Internal
Ground Type Negative
Mount Type T
Mounting Ear 1 Hole 12.0mm Unthreaded
Mounting Ear 2 Hole 12.0mm Unthreaded
Mtg Ear 3 Hole 13.0mm Unthreaded
OEM Manufacturer Ford
Outside Pulley Diameter 53
Plug Clock Rear View Main Mounting Ear At 6 O Clock 5
Plug Type 339
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Clock 3:00
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

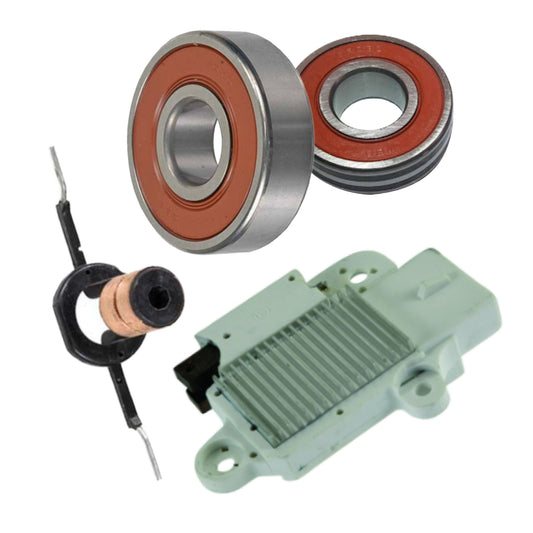

Alternator Rebuild Kit 8405RK-A
Bearing 54002 54700
Cover 84505100
Frame DE 76505243A

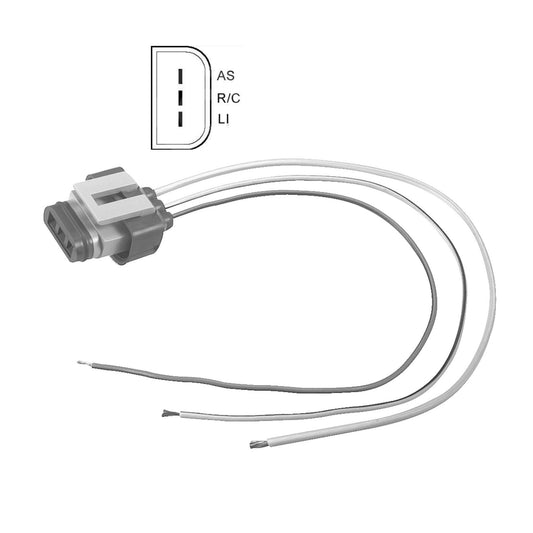

Harness Repair 98505002
Nut 95001508
Plug Code 9801339
Pulley 79502272
Rectifier 77502525
Regulator & Brush Holder 8050518AB
Repair Kit 69501057
Retainer Bearing 8550504
Rotor 70502934
Screw 96505014 96505016
Spacer 97505026
Stator 72506726
Test Lead 9800MHII
Thru Bolt 96505511
Washer Lock 97303001



FORD PULLEY-4G 6GRV 53mm F05-02
RECT-4G 50A DROP DOWN 1 F06-51
RECT-4G 70A AVL DROP DOWN F06-52
INT REG-4G WHT/BLU/BLK F08-23
REG REPAIR LEAD-2G 3G 4G 1 F14-02
SLIP RING-4G 16mm OD F16-06
SLIP RING-4G 16mm OD FLEX 1 F16-06L
RECT-4G 130A TADITEL 1 T40
RECT-4G 200A TADITEL 1 T41
REGULATOR-4G WHITE TADITEL 1 T816
6303-2RS C3 BEARING W02X-11-1
6203 2HRLD BRG-17x40x12mm W02X-99-1
DIODE-NEG 50A 400V FLUSH W04X-45
DIODE-POS 50A 400V FLUSH W04X-46
PULLEY NUT-16x1.5mm W110-22
