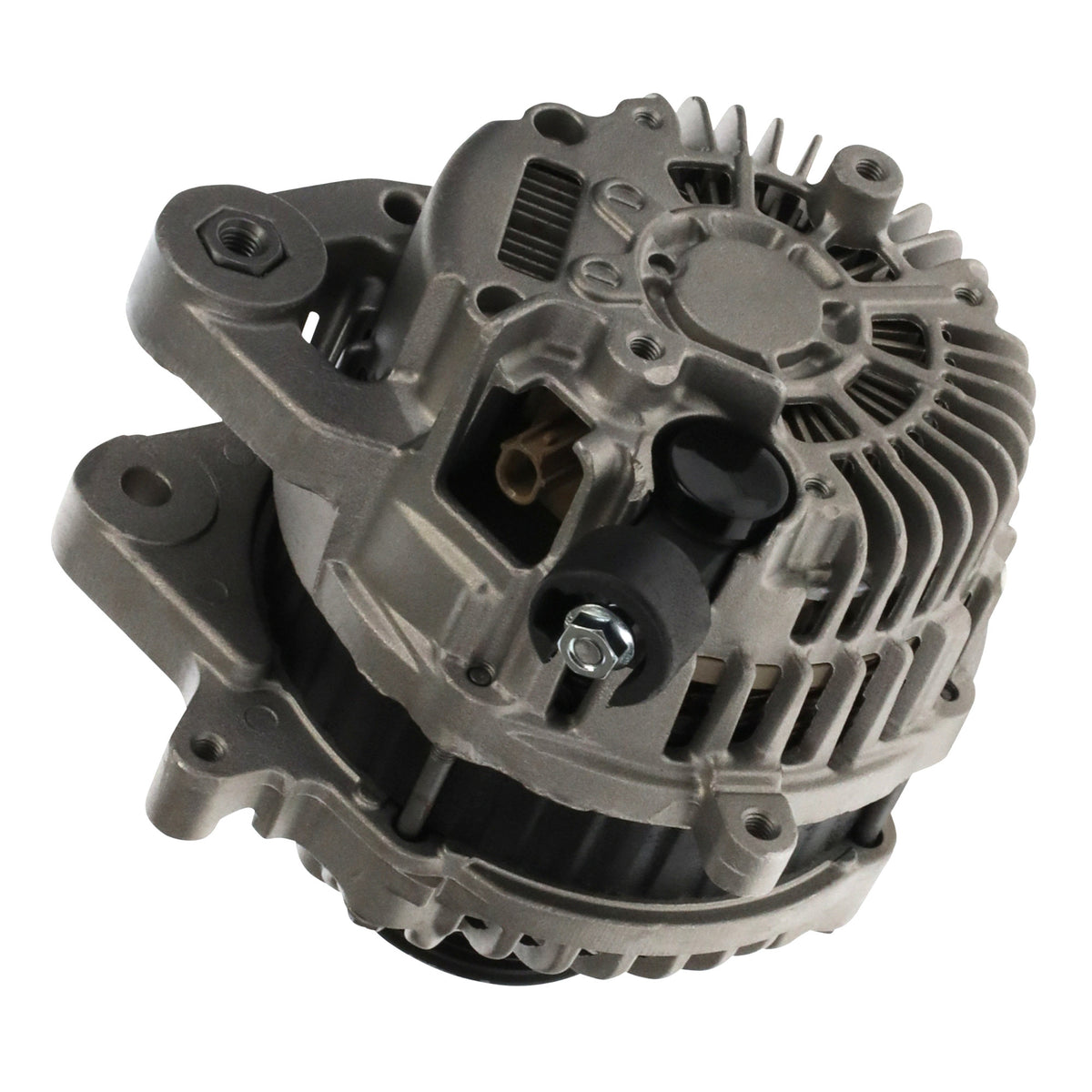

Alternator 2013-2015 Acura ILX, 2012-2015 Civic, 2016-2018 HR-V A5TJ0191 - 11537

Acura
ILX L4 2.0L 1997CC 2013-2015
Honda
Civic L4 1.8L 1799CC 2012-2015
HR-V L4 1.8L 1799CC 2016-2018

Alternator Manufacturer and factory #s
Arrowhead AMT0278
Bosch Aftermarket AL1313X (Reman)
Bosch Service Europe 0-986-CR6-083, 0-986-UR6-083
Delco Reman Europe DRA1081
DENSO Auto Parts 210-4000
Honda 31100-R1A-A01, 31100-R1A-A010, 31100-R1A-A010M2, 31100-R1A-A011-M2, 31100-R1A-A01RM, AHGA81
Lester 11537
Lucas (Europe) LRA03918
Mitsubishi A005TJ0191, A005TJ0191AC, A005TJ0191ZC, A005TJ0191ZE, A5TJ0191, A5TJ0191A, A5TJ0191AC, A5TJ0191AE, A5TJ0191ZC, A5TJ0191ZE
J&N 400-48108, 400-48251
PIC 203-5347
Remy Light Duty 11110
Youtech/PartRef 338987
Wilson 90-27-3411


Manufacture Mitsubishi
Amperage Rating 95
Decoupled Or Clutch Pulley No
Design IR/IF
Family A5TJ
Fan Type Internal
Ground Type Negative
OE Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 4
Pulley Belt Type Serpentine
Pulley Diameter 0
Pulley Groove Od 0
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 11537RK-A
6303-2RS C3 BEARING-PFI 1 W02X-11-1
B8-23D BEARING-8x23x14mm PFI 1 W02X-50-1
BRUSH-5x8x24mm 2 W035-09
RECTIFIER 1 W065-272 77033101 IMR11506

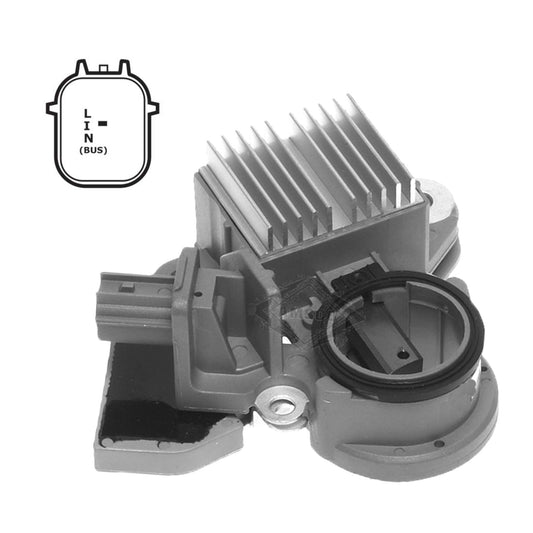

REGULATOR 1 W085-356A 80033052 IM404
PULLEY NUT-17x1.5mm 1 W112-01
CAPACITOR PLATE-11115 CHRY 1 W115-218

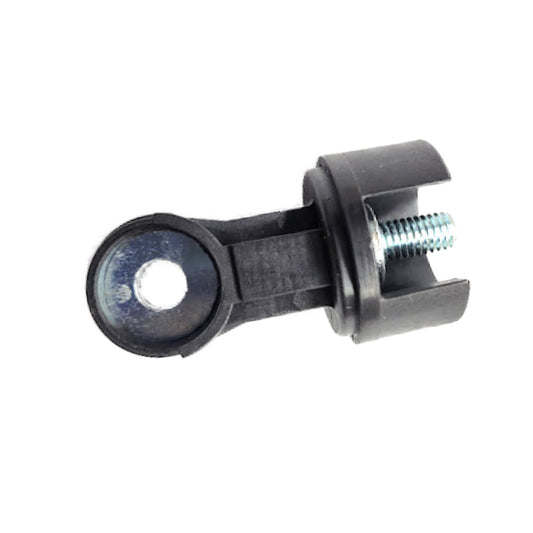

B+ TERM EXTENSION 1 W115-249
REPAIR HARNESS 1 W145-43
SLIP RING-13.5mm, 23mm OD 1 W165-10
Rotor A880XC1970
Stator A381X04370
