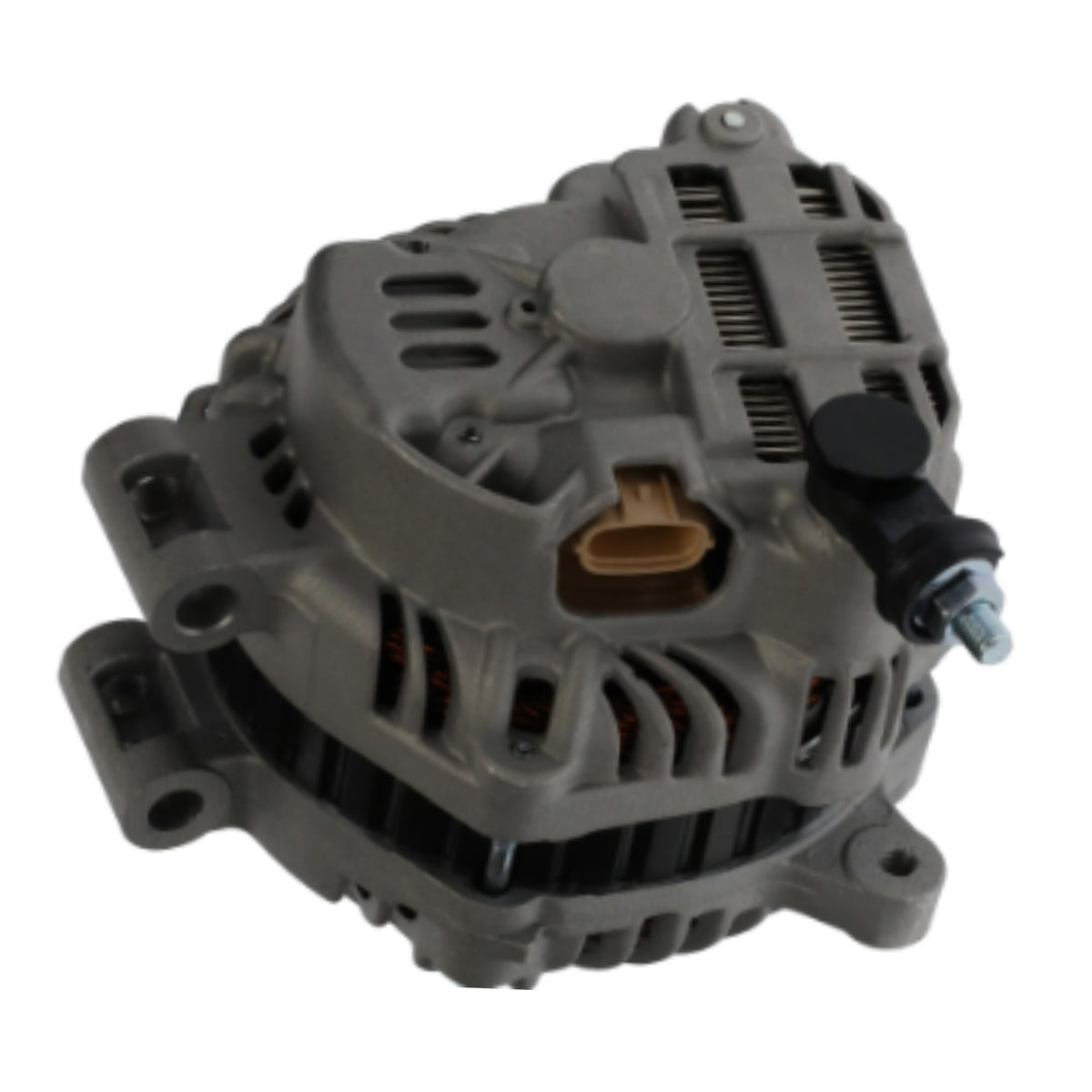

Alternator for 2013-2014 Legacy Outback 2.5L A3TG6781 - 11556

Subaru Car
Legacy H4 2.5L 2498cc 2013-2014
Outback H4 2.5L 2498cc 2013-2014

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4320X
DENSO Auto Parts Aftermarket 210-4203
Lester 11556
Mitsubishi A003TG6781, A003TG6781ZC, A3TG6781, A3TG6781ZC
Subaru 23700-AA78A
Bosch Service Europe 0-986-CR6-320, 0-986-UR6-320
Lucas (Europe) LRA03693

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley Yes
Design IR/IF
Family A3TG
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 6
Pulley Type SC6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

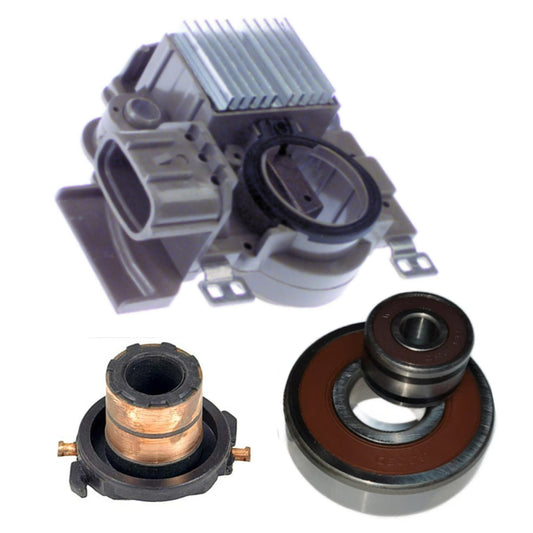

Alternator Rebuild Kit 11556RK-A
6303-2RS C3 BEARING 1 W02X-11-1 54700
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312
BRUSH-5x8x24mm CLIP 2 W035-21 38-8307x2

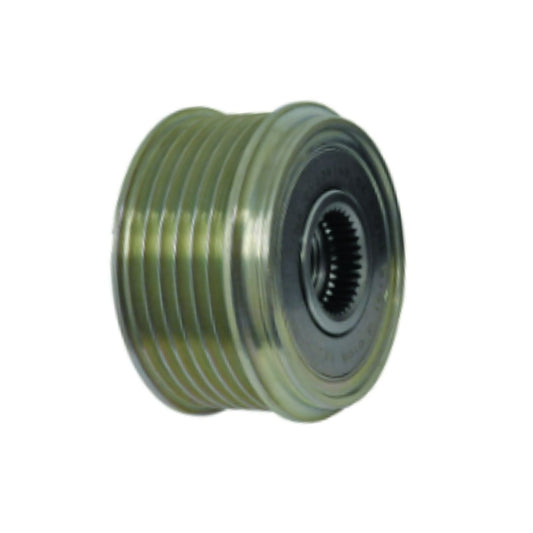

PULLEY- 6GRV55mm 1 W055-105 79032290 24-83281
Rectifier SUBARU 1 W065-225 77033151 IMR10049
INT REG- SUBARU D-S-L 1 W085-228 T52014 IM848
Plug 9801319
B+ TERM EXT- SUBR M8 1 W115-197
SLIP RING-13.5mm, 23mm OD 1 W165-10
Rotor 7003957
Stator 72038375
