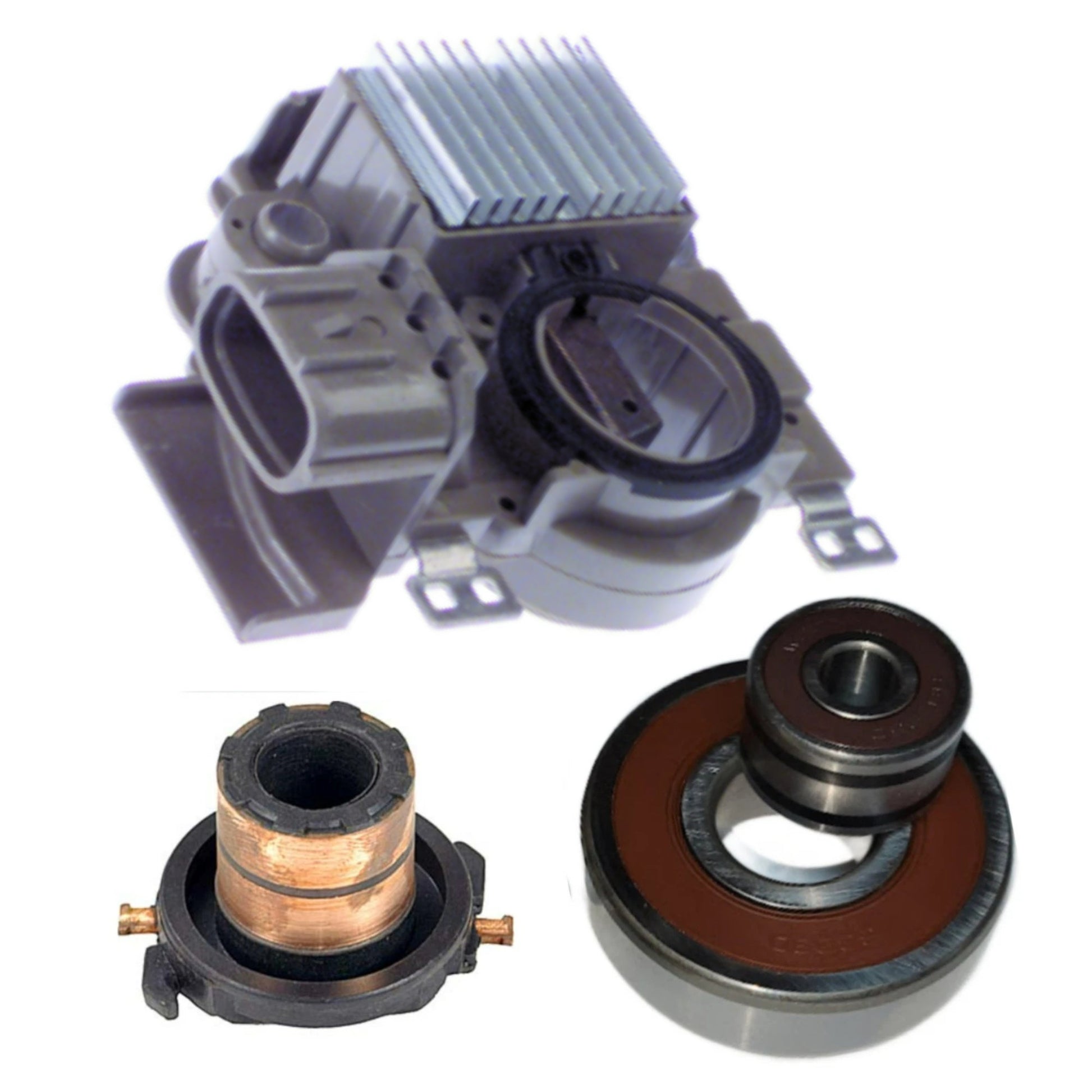

Alternator Rebuild Kit for 2013-2014 Legacy Outback 2.5L A3TG6781 - 11556RK-A

Subaru Car
Legacy H4 2.5L 2498cc 2013-2014
Outback H4 2.5L 2498cc 2013-2014

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4320X
DENSO Auto Parts Aftermarket 210-4203
Lester 11556
Mitsubishi A003TG6781, A003TG6781ZC, A3TG6781, A3TG6781ZC
Subaru 23700-AA78A
Bosch Service Europe 0-986-CR6-320, 0-986-UR6-320
Lucas (Europe)    LRA03693

• Voltage Regulator with Brushes - Specifications: 12 Volt, A-Circuit, D-S-L Terminals, 14.5 voltage set point, for Mitsubishi Alternators, 24mm ID Slip Ring Cover, Stator activated // Replaces Mitsubishi 427, 4276125T, 6853619K, 6854329P, A866X43372, Subaru 23815AA140, Other: GNR-H017, 230-48114, 80033092, 80033116, 196-007, W085-228, VRH2009-107, GNR-M055, IM480, 196-007, 196-120 - IM848

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4

• SlipRings for Mitsubishi Alternators 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
• additional parts here https://diyalternator.com/collections/mitsubishi-11556
