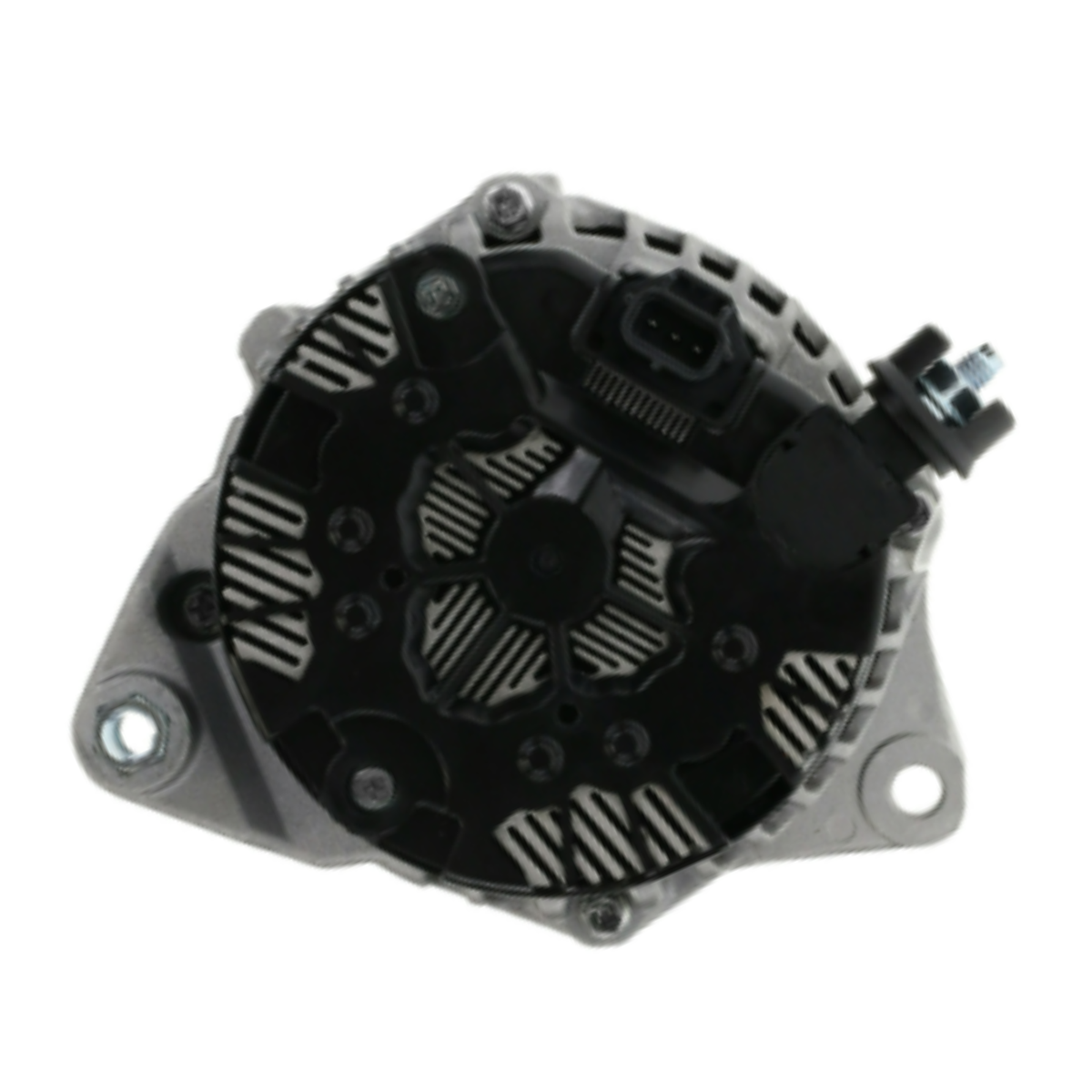

Alternator 2015-2026 Transit 3.5 3.7 with Mitsubishi A3TV1391ZC - 11928

Ford Van
Transit-150 V6 3.5L 3496cc 213cid 2015-2026 250A
Transit-150 V6 3.7L 3726cc 227cid 2015-2019 250A
Transit-250 V6 3.5L 3496cc 213cid 2015-2026 250A
Transit-250 V6 3.7L 3726cc 227cid 2015-2019 250A
Transit-350 V6 3.5L 3496cc 213cid 2015-2026 250A
Transit-350 V6 3.7L 3726cc 227cid 2015-2019 250A
Transit-350 HD V6 3.5L 3496cc 213cid 2015-2026 250A
Transit-350 HD V6 3.7L 3726cc 227cid 2015-2019 250A

Alternator Manufacturer and Factory #s: 250 Amp
Bosch Remanufactured AL7794X
Ford CK4Z-10346-B, CK4Z-10346-C, CK4Z-10346-D, C4KT-10300-CB, CK4T-10300-BD, CK4T-10300-CA, CK4Z-10346-E
Lester 11928
Mitsubishi A003TV1391, A003TV1391ZC, A3TV1391, A3TV1391ZC
Motorcraft GL-8838
Pic 203-5574
J&N 400-48285R

Manufacture Mitsubishi
Amperage Rating 230-250
Decoupled Or Clutch Pulley No
Design IR/IF
Family A3TV
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 10
Plug Code 337
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 58.46
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Type Alternator
Voltage 12

RECT COVER-11873 FORD 1 W015-122

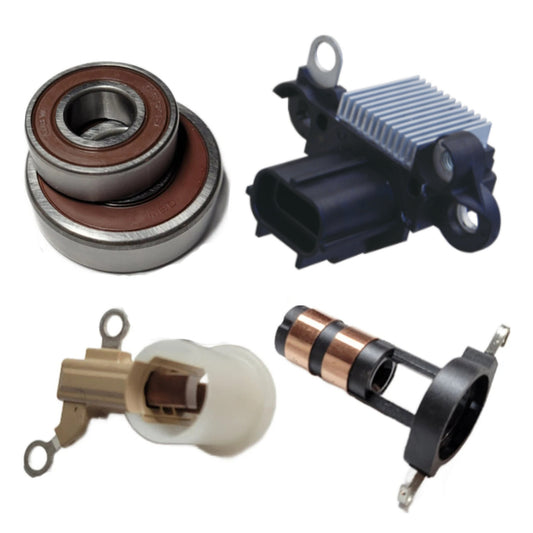

6202-2RS BEARING-15x35x11mmPFI 1 W02X-05-1 53500
6303-2RS C3 BEARING-PFI 1 W02X-11-1 54700

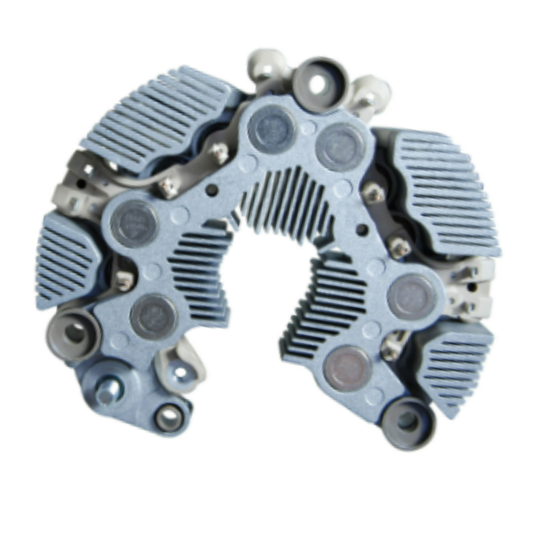

Rectifier 1 W065-286 77033311
Voltage Regulator 1 W085-436 80033269
PULLEY NUT-17x1.5mm 1 W112-01
BRUSH HOLDER-11916 1 W155-33 74033010
SLIP RING-11873 1 W165-12
