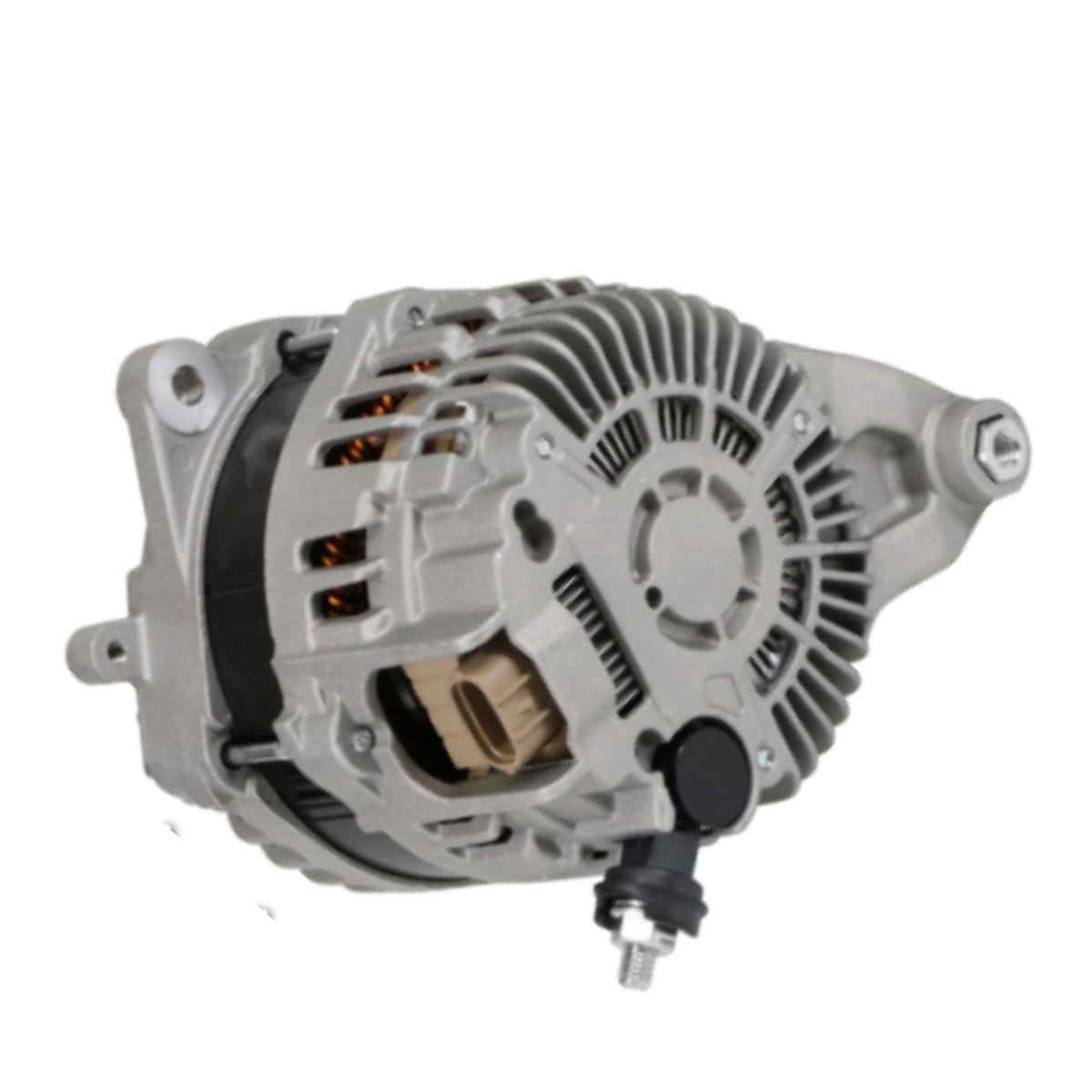

Alternator Scion FR-S, Toyota 86, Subaru BRZ 130 Amp Mitsubishi A2TX2491 - 12883

Scion FR-S H4 2.0L 1998cc 2013-2016
Subaru BRZ H4 2.0L 1998cc 2013-2016
Toyota 86 H4 2.0L 1998cc 2017-2019 130 Amp
*See 22875 for 150 Amp Version

Alternator Manufacturer and Factory #s
Alanko 10444333, 11444333
Bosch Remanufactured AL3388X
Bosch Service Europe 0986UR6343, 0-986-CR6-343, 0-986-UR6-343
Lester 12883
Lucas Electrical Europe LRA04038
Mitsubishi A002TX2491, A002TX2491A, A2TX2491, A2TX2491A
Scion SU003-00484, SU003-05860
Subaru 23700-AA750, 23700-AA751
Toyota SU003-05860
PIC# 203-624
J&N 400-48211R

Manufacture Mitsubishi
Amperage Rating 130
Decoupled Or Clutch Pulley No
Design IR/IF
Family A2TX
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 58.8
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

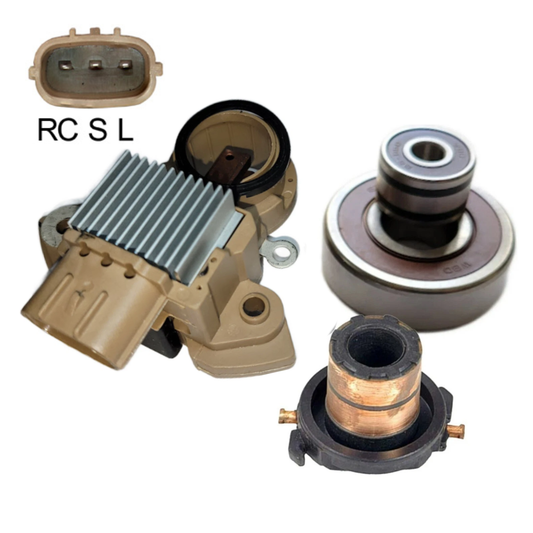

Alternator Rebuild Kit 12883RK-A
6303-2RS C3 BEARING W02X-11-1 52312
B8-23D BEARING-8x23x14mm W02X-50-1 54700
RECT 110A AVL 1 W065-265 77033254
Regulator 80033207 IM625
Plug 9801325
PULLEY NUT-17x1.5mm W112-01
B+ TERM EXT MAZDA M6 W115-198
SLIP RING-13.5mm, 23mm OD W165-10 710312
