Alternator Rebuild Kit Scion FR-S, Toyota 86, Subaru BRZ 130 Amp Mitsubishi A2TX2491 - 12883RK-A

Scion FR-S H4 2.0L 1998cc 2013-2016
Subaru BRZ H4 2.0L 1998cc 2013-2016
Toyota 86 H4 2.0L 1998cc 2017-2019 130 Amp
*See 22875 for 150 Amp Version

Alternator Manufacturer and Factory #s
Alanko 10444333, 11444333
Bosch Remanufactured AL3388X
Bosch Service Europe 0986UR6343, 0-986-CR6-343, 0-986-UR6-343
Lester 12883
Lucas Electrical Europe    LRA04038
Mitsubishi A002TX2491, A002TX2491A, A2TX2491, A2TX2491A
Scion SU003-00484, SU003-05860
Subaru 23700-AA750, 23700-AA751
Toyota SU003-05860
PIC# 203-624
J&N 400-48211R

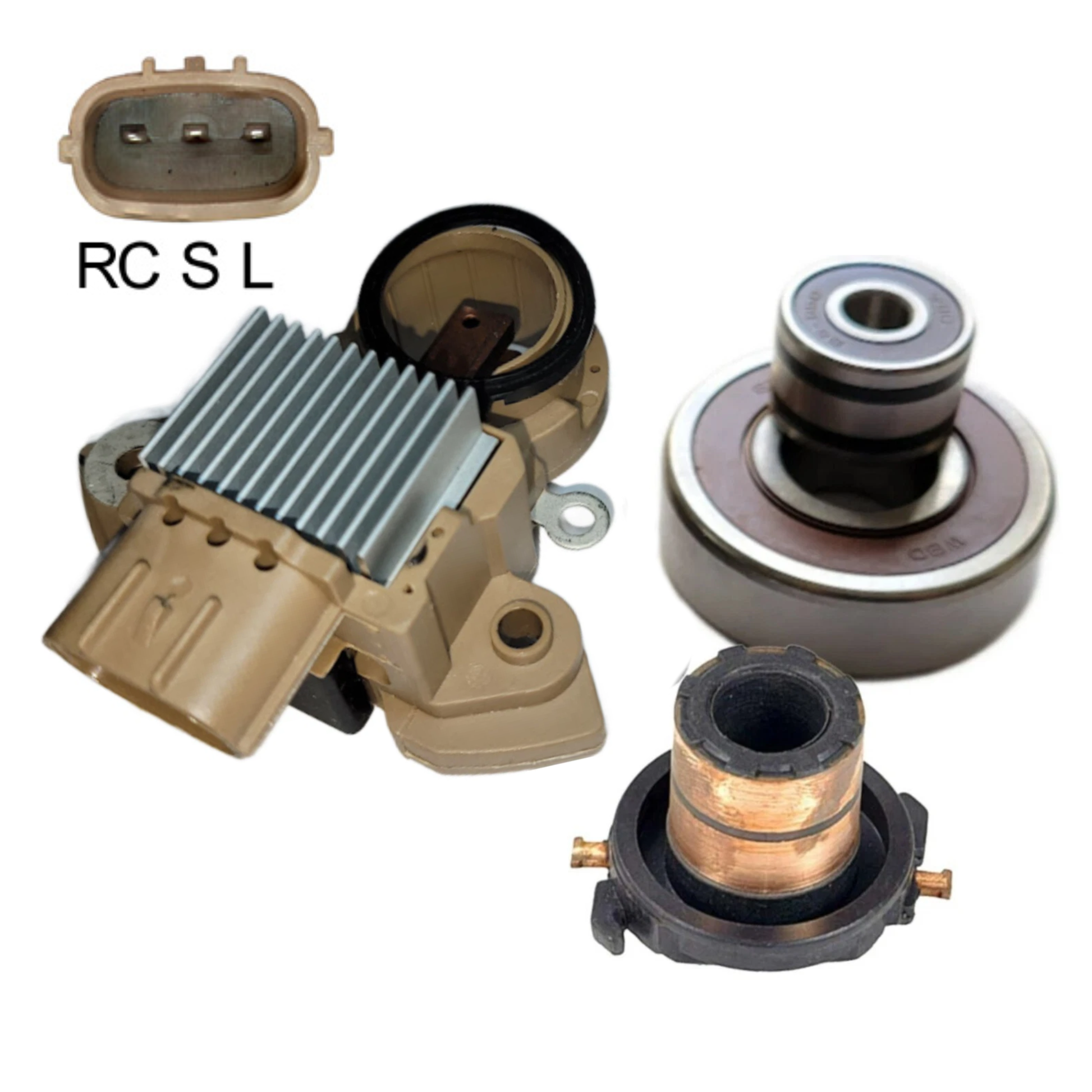

• Voltage Regulator with Brushes,  Replaces: Mitsubishi 616, 672, 679, 683, 6835210K, 68365210, A866X68372, 6722Z14U, 6835715U:: Other: IM625, 196-138, W085-400 Specifications: 12 Volt, A-Circuit, 14.6 Vset, Low Side Drive Regulator, C-S-L Terminals, For Mitsubishi IR/IF Alternators, Light Activated, Soft Start, LRC Function, Remote Sense, Reverse RVC Function, Field, Lamp Short Circuit Protection - IM625

• Quality Drive End 6303-2RS 54700 Bearing 17x47x14mm - 6-303-4W

• Quality SRE Rotor B8-23D 52312 Bearing 8x23x14mm - 10-800-4W

• SlipRings for Mitsubishi Alternators 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
  Additional parts https://diyalternator.com/collections/mitsubishi-12883
