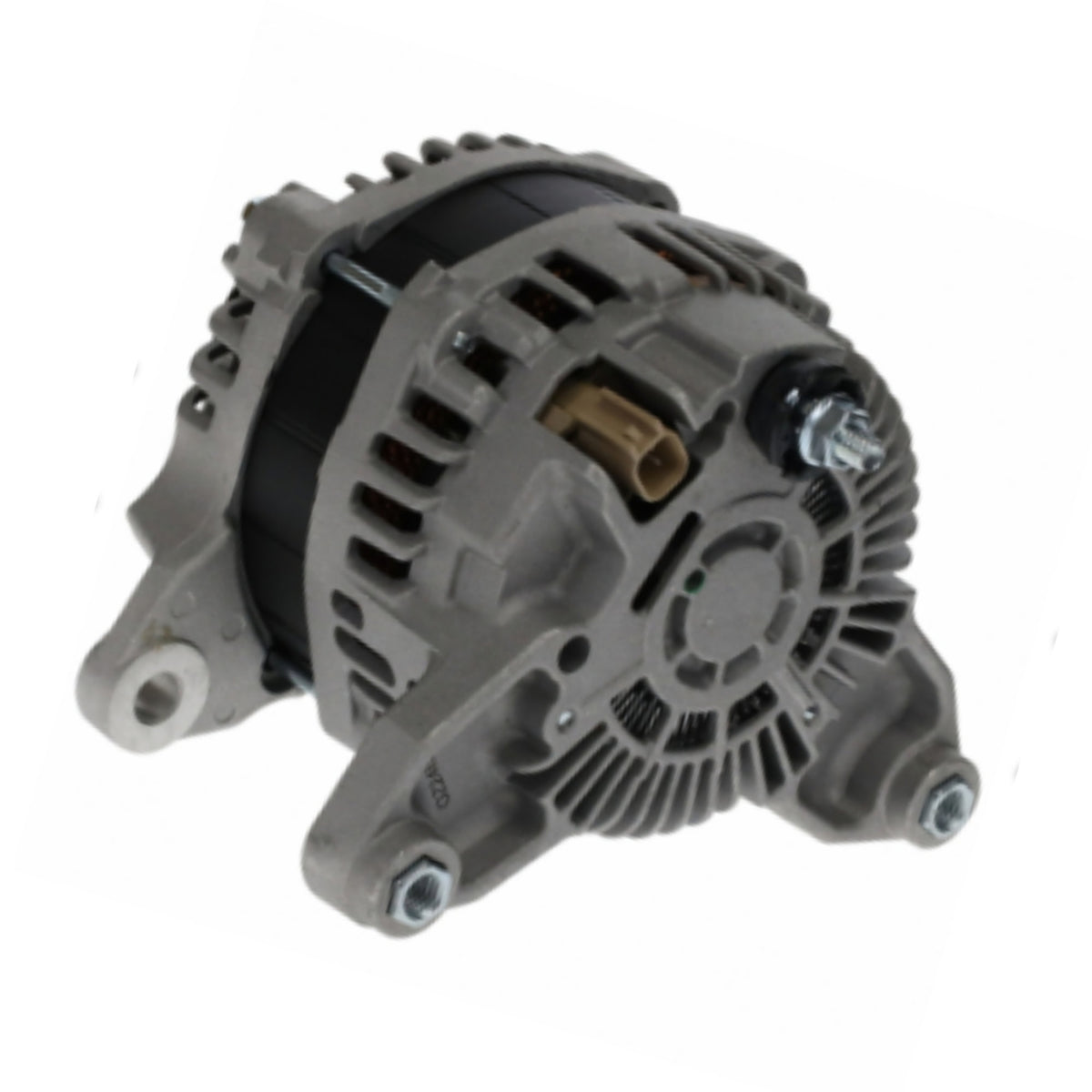

Alternator 160 Amp 2015-2024 Ram 1500 5.7L A2TX5691 - 41000

Ram Truck
1500 V8 5.7L 345cid 2015-2018 160 Amp Mitsubishi
1500 Classic V8 5.7L 345cid 2019-2024 160 Amp Mitsubishi

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL6568X
Chrysler 56029764AA, 56029764AB, 56029764AC, R6029764AA
Lester 41000
Mitsubishi A002TX5691, A002TX5691AC, A002TX5691ZC, A2TX5691, A2TX5691ZC
PIC# 203-5548


Manufacture Mitsubishi
Amperage Rating 160
Decoupled Or Clutch Pulley No
Family A2TX
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Pulley Belt Type Serpentine
Pulley Groove Quantity 6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

6303-2RS C3 BEARING W02X-11-1 54700 6-303-4
B8-23D BEARING-8x23x14mm W02X-50-1 52312 10-800-4
BRUSHES-5x8x24mm CLIP W035-21 38-8307x2

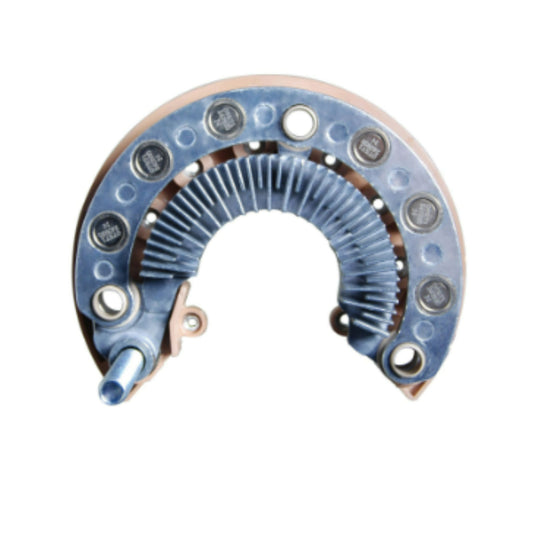

RECTIFIER W065-275 77033175, 77033301, 77033322 IMR12211
B+ INSULATOR W115-209
B+ INSULATOR W115-229

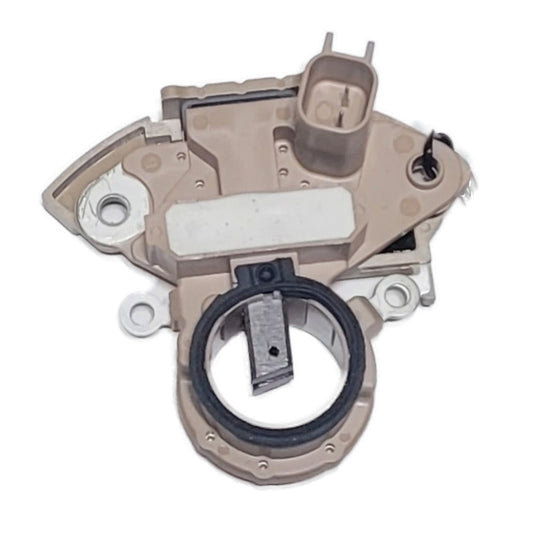

BRUSH HOLDER Terminal Block W155-31 170-48001 150-48003 74033004 39-8305
Hardware Screws 2 x 19mm Long M5 x.8 Philips round head and flat washers
SLIP RING-13.5mm, 23mm OD W165-10 710312 28-83852
